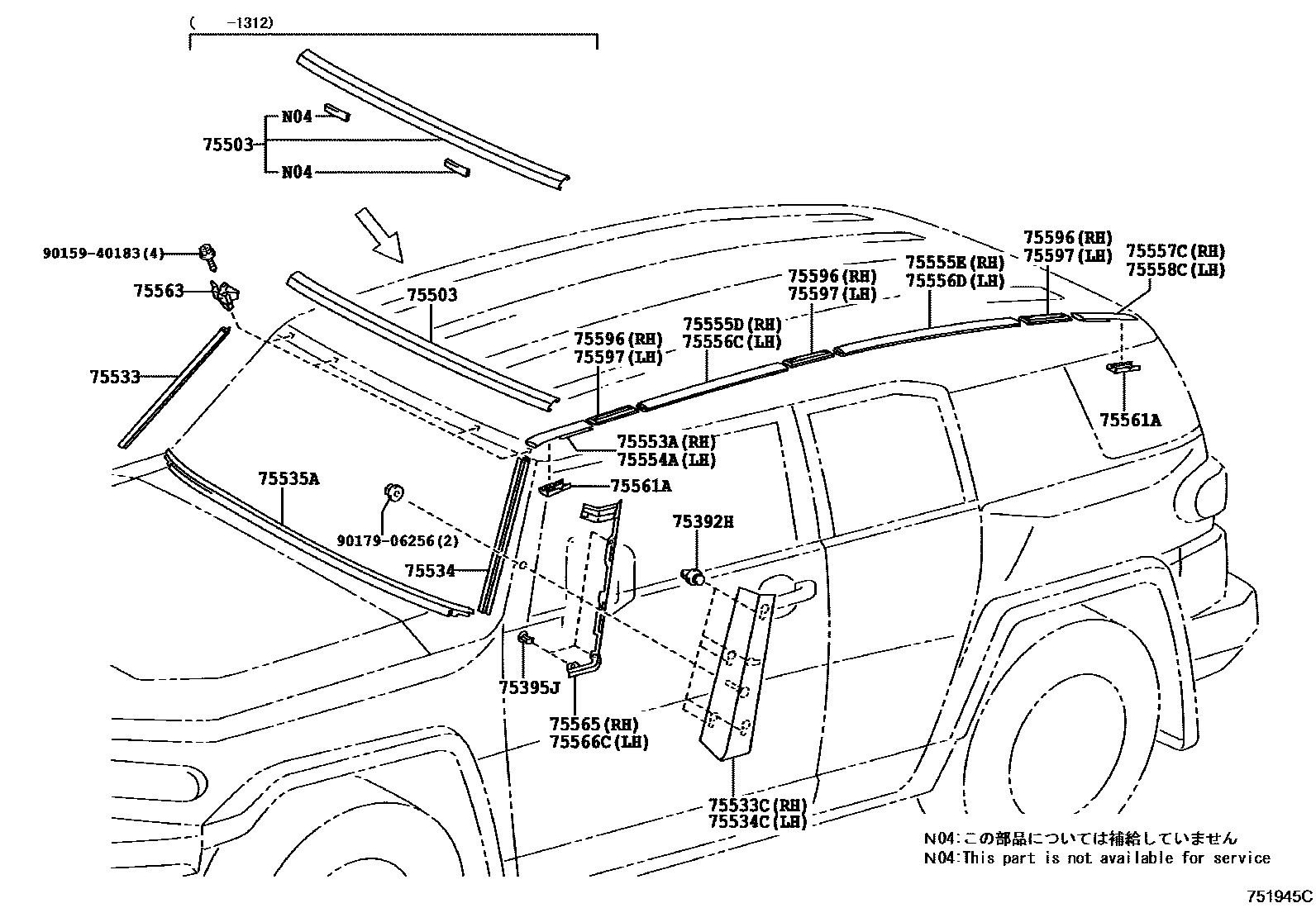

MOULDING

0001 1 0002 1

75392HRETAINER, OUTSIDE MOULDING

main75392-35210×10iGSJ15200707-201011

75395JCLIP, OUTSIDE MOULDING, NO.1

main67869-35010×6iGSJ15200707-201011

75503MOULDING SUB-ASSY, WINDSHIELD, OUTSIDE UPPER

main75503-35011iGSJ15200707-200807

main75503-35012iGSJ15200808-201011

main75503-35060-A0iGSJ15..RHD201011-201312

WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS

main75503-35060-D0iGSJ15201108-201208

RED,3L5

main75503-35061-A0iGSJ15..MTM201312-201712

WHITE,058 ,2JU ,2KC ,2KD ,2KP ,2KY ,2LF ,2LS

sub75503-35160

main75503-35061-D0iGSJ15..ATM201408

RED,3L5

sub75503-35160

main75503-35050iGSJ15..ATM..GCC200904-200907

SPECIAL EDITION(KUWAIT/QATAR/YEMEN)

sub75503-35110

main75503-35061-C0iGSJ15..ATM..GCC201411-201501

SPECIAL EDITION,BLACK,202

sub75503-35160

main75503-35061-E0iGSJ15..GEN..RHD202209-202212

FINAL EDITION GLOBAL(LHD),BEIGE,4U0

sub75503-35160

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75532-35010iGSJ15..MTM201011-201712

75533CGARNISH, FRONT PILLAR, OUTER RH

main61110-35010iGSJ15200707-201011

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75532-35010iGSJ15200707-201011

75534CGARNISH, FRONT PILLAR, OUTER LH

main61120-35010iGSJ15200707-201011

75535AMOULDING, WINDSHIELD, OUTSIDE LOWER

main75535-35010iGSJ15200707-201004

main75535-35011iGSJ15..ATM201011

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-35020iGSJ15200707-200803

main75553-35040iGSJ15..ATM..GCC;GSJ15..(CHI,GEN)..LHD200804-201108

main75553-35040-A0iGSJ15..ATM..LHD201011

WHITE,058 ,2JU ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS

main75553-35040-D0iGSJ15..ATM201408

RED,3L5

main75553-35040-C0iGSJ15..ATM..GCC201411-201501

SPECIAL EDITION,BLACK,202

main75553-35040-E0iGSJ15..GEN..RHD202209-202212

FINAL EDITION GLOBAL(LHD),BEIGE,4U0

main75553-35080iGSJ15..ATM..GCC200904-200907

SPECIAL EDITION(KUWAIT/QATAR/YEMEN)

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-35020iGSJ15200707-200803

main75554-35040iGSJ15..ATM..GCC;GSJ15..(CHI,GEN)..LHD200804-201108

main75554-35040-A0iGSJ15..ATM..LHD201011

WHITE,058 ,2JU ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS

main75554-35040-D0iGSJ15..ATM201408

RED,3L5

main75554-35040-C0iGSJ15..ATM..GCC201411-201501

SPECIAL EDITION,BLACK,202

main75554-35040-E0iGSJ15..GEN..RHD202209-202212

FINAL EDITION GLOBAL(LHD),BEIGE,4U0

main75554-35080iGSJ15..ATM..GCC200904-200907

SPECIAL EDITION(KUWAIT/QATAR/YEMEN)

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-35010iGSJ15200707-200803

main75555-35030iGSJ15..ATM..GCC;GSJ15..(CHI,GEN)..LHD200804-201108

main75555-35030-A0iGSJ15..ATM..LHD201011

WHITE,058 ,2JU ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS

main75555-35030-D0iGSJ15..MTM201408-201712

RED,3L5

main75555-35030-C0iGSJ15..ATM..GCC201411-201501

SPECIAL EDITION,BLACK,202

main75555-35030-E0iGSJ15..GEN..RHD202209-202212

FINAL EDITION GLOBAL(LHD),BEIGE,4U0

main75555-35070iGSJ15..ATM..GCC200904-200907

SPECIAL EDITION(KUWAIT/QATAR/YEMEN)

75555EMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75556-35010iGSJ15200707-200803

main75556-35030iGSJ15..ATM..GCC;GSJ15..(CHI,GEN)..LHD200804-201108

main75556-35030-A0iGSJ15..ATM..LHD201011

WHITE,058 ,2JU ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS

main75556-35030-D0iGSJ15..ATM201408

RED,3L5

main75556-35030-C0iGSJ15..ATM..GCC201411-201501

SPECIAL EDITION,BLACK,202

main75556-35030-E0iGSJ15..GEN..RHD202209-202212

FINAL EDITION GLOBAL(LHD),BEIGE,4U0

main75556-35060iGSJ15..ATM..GCC200904-200907

SPECIAL EDITION(KUWAIT/QATAR/YEMEN)

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75555-35010iGSJ15200707-200803

main75555-35030iGSJ15..ATM..GCC;GSJ15..(CHI,GEN)..LHD200804-201108

main75555-35030-A0iGSJ15..ATM..LHD201011

WHITE,058 ,2JU ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS

main75555-35030-D0iGSJ15..MTM201408-201712

RED,3L5

main75555-35030-C0iGSJ15..ATM..GCC201411-201501

SPECIAL EDITION,BLACK,202

main75555-35030-E0iGSJ15..GEN..RHD202209-202212

FINAL EDITION GLOBAL(LHD),BEIGE,4U0

main75555-35070iGSJ15..ATM..GCC200904-200907

SPECIAL EDITION(KUWAIT/QATAR/YEMEN)

75556DMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-35010iGSJ15200707-200803

main75556-35030iGSJ15..ATM..GCC;GSJ15..(CHI,GEN)..LHD200804-201108

main75556-35030-A0iGSJ15..ATM..LHD201011

WHITE,058 ,2JU ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS

main75556-35030-D0iGSJ15201108-201208

RED,3L5

main75556-35030-C0iGSJ15..ATM..GCC201411-201501

SPECIAL EDITION,BLACK,202

main75556-35030-E0iGSJ15..GEN..RHD202209-202212

FINAL EDITION GLOBAL(LHD),BEIGE,4U0

main75556-35060iGSJ15..ATM..GCC200904-200907

SPECIAL EDITION(KUWAIT/QATAR/YEMEN)

75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH

main75557-35020iGSJ15200707-200803

main75557-35040iGSJ15..ATM..GCC;GSJ15..(CHI,GEN)..LHD200804-201108

main75557-35040-A0iGSJ15..ATM..LHD201011

WHITE,058 ,2JU ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS

main75557-35040-D0iGSJ15..ATM201408

RED,3L5

main75557-35040-C0iGSJ15..ATM..GCC201411-201501

SPECIAL EDITION,BLACK,202

main75557-35040-E0iGSJ15..GEN..RHD202209-202212

FINAL EDITION GLOBAL(LHD),BEIGE,4U0

main75557-35070iGSJ15..ATM..GCC200904-200907

SPECIAL EDITION(KUWAIT/QATAR/YEMEN)

75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH

main75558-35010iGSJ15200707-200803

main75558-35030iGSJ15..ATM..GCC;GSJ15..(CHI,GEN)..LHD200804-201108

main75558-35030-A0iGSJ15..ATM..LHD201011

WHITE,058 ,2JU ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS

main75558-35030-D0iGSJ15..MTM201408-201712

RED,3L5

main75558-35030-C0iGSJ15..ATM..GCC201411-201501

SPECIAL EDITION,BLACK,202

main75558-35030-E0iGSJ15..GEN..RHD202209-202212

FINAL EDITION GLOBAL(LHD),BEIGE,4U0

main75558-35060iGSJ15..ATM..GCC200904-200907

SPECIAL EDITION(KUWAIT/QATAR/YEMEN)

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-42030×4iGSJ15200707-200807

main75561-60010×4iGSJ15200807-201011

sub75561-60030

75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75563-35010×4iGSJ15200707-201011

75565PROTECTOR, ROOF SIDE GARNISH, NO.1

main75565-35010iGSJ15200707-201011

75566CPROTECTOR, ROOF SIDE GARNISH, NO.2

main75566-35010iGSJ15200707-201011

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-35020×3iGSJ15200707-201011

main75596-35020-A0×3iGSJ15..ATM..LHD201011

WHITE,058 ,2JU ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS

main75596-35020-D0×3iGSJ15..MTM201408-201712

RED,3L5

main75596-35020-C0×3iGSJ15..ATM..GCC201411-201501

SPECIAL EDITION,BLACK,202

main75596-35020-E0×3iGSJ15..GEN..RHD202209-202212

FINAL EDITION GLOBAL(LHD),BEIGE,4U0

main75596-35070×3iGSJ15..ATM..GCC200904-200907

SPECIAL EDITION(KUWAIT/QATAR/YEMEN)

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-35020×3iGSJ15200707-201011

main75596-35020-A0×3iGSJ15..ATM..LHD201011

WHITE,058 ,2JU ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS

main75596-35020-D0×3iGSJ15..ATM201408

RED,3L5

main75596-35020-C0×3iGSJ15..ATM..GCC201411-201501

SPECIAL EDITION,BLACK,202

main75596-35020-E0×3iGSJ15..GEN..RHD202209-202212

FINAL EDITION GLOBAL(LHD),BEIGE,4U0

main75596-35070×3iGSJ15..ATM..GCC200904-200907

SPECIAL EDITION(KUWAIT/QATAR/YEMEN)

9015940183

main90159-40183

9017906256

main90179-06256

24 parts on this diagram · 2 diagrams in section
