SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-35020-B0iGSJ15200707-201011

LT.GRAY,TRIM1#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-35020-B0iGSJ15200707-201011

LT.GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iGSJ15201301

main73200-53010iGSJ15200707-201212

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-35841-C0iGSJ15..GCC,GEN200707-200908

BLACK,TRIM1#

main73210-35870-C0iGSJ15..CHI200712-200908

BLACK,TRIM1#

main73210-35A00-C2iGSJ15..CHI200908-201011

BLACK,TRIM1#

main73210-35A30-C0iGSJ15..(GCC,GEN)..LHD201011

BLACK,TRIM1#

main73210-35A40-C0iGSJ15..CHI201011-201512

BLACK,TRIM1#

main73210-35A50-C0iGSJ15..RHD201011

BLACK,TRIM1#

main73210-3D020-C2iGSJ15..GCC,GEN200908-201011

BLACK,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iGSJ15200707-201011

BLACK

main73219-33020iGSJ15200707-201011

GRAY

main73219-33030iGSJ15200707-201011

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-35740-C0iGSJ15..GCC,GEN200707-200908

BLACK,TRIM1#

main73220-35760-C0iGSJ15..CHI200712-200908

BLACK,TRIM1#

main73220-35780-C2iGSJ15..GCC,GEN200908-201011

BLACK,TRIM1#

main73220-35790-C2iGSJ15..CHI200908-201011

BLACK,TRIM1#

main73220-35810-C0iGSJ15..(GCC,GEN)..LHD201011

BLACK,TRIM1#

main73220-35820-C0iGSJ15..CHI201011-201512

BLACK,TRIM1#

main73220-35830-C0iGSJ15..RHD201011

BLACK,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-35850-B0iGSJ15200707-200907

DK.GRAY,TRIM1#

main73230-35A00-C0iGSJ15..LHD200908-201011

BLACK,TRIM1#

main73230-35A20-C0iGSJ15..RHD201011

BLACK,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60010-B1iGSJ15200707-201011

DK.GRAY,TRIM1#

73233ACOVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT

main73233-60010-B1iGSJ15200707-200908

DK.GRAY,TRIM1#

73237ACOVER, SHOULDER BELT ANCHOR

main73237-60040-B1iGSJ15200904-201011

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-35510-B0iGSJ15200707-200907

DK.GRAY,TRIM1#

main73240-35540-C0iGSJ15200908-201011

BLACK,TRIM1#

main73240-35550-C0iGSJ15..RHD201011

BLACK,TRIM1#

main73240-35560-C0iGSJ15..LHD201011

BLACK,TRIM1#

73350CBELT ASSY, REAR SEAT, OUTER CENTER

main73350-35161-C0iGSJ15..GCC,GEN200707-200807

BLACK,TRIM1#

sub73350-35162

main73350-35162-C0iGSJ15..GCC,GEN200808-200908

BLACK,TRIM1#

sub73350-35162

sub73350-35190

main73350-35162-C2iGSJ15..GCC,GEN200908-201011

BLACK,TRIM1#

sub73350-35162

sub73350-35190

main73350-35170-C0iGSJ15..CHI200712-200908

BLACK,TRIM1#

sub73350-35170

main73350-35170-C2iGSJ15..CHI200908-201011

BLACK,TRIM1#

sub73350-35170

main73350-35190-C0iGSJ15..ARL,GCC201011-201408

BLACK,TRIM1#

main73350-35200-C0iGSJ15..CHI201011-201208

BLACK,TRIM1#

main73350-35210-C0iGSJ15..GEN,SA201011

BLACK,TRIM1#

main73350-35220-C0iGSJ15..CHI201208-201512

BLACK,TRIM1#

73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH

main73360-35330-C0iGSJ15..ARL,GCC201011-201408

BLACK,TRIM1#

main73360-35341-C0iGSJ15..GCC,GEN200707-200908

BLACK,TRIM1#

sub73360-35341

main73360-35341-C2iGSJ15..GCC,GEN200908-201011

BLACK,TRIM1#

sub73360-35341

main73360-35350-C0iGSJ15..CHI200712-200908

BLACK,TRIM1#

sub73360-35350

main73360-35350-C2iGSJ15..CHI200908-201011

BLACK,TRIM1#

sub73360-35350

main73360-35370-C0iGSJ15..CHI201011-201208

BLACK,TRIM1#

main73360-35380-C0iGSJ15..ARL,GCC201011

BLACK,TRIM1#

main73360-35390-C0iGSJ15..CHI201208-201512

BLACK,TRIM1#

73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH

main73370-35260-C0iGSJ15..ARL,GCC201011-201408

BLACK,TRIM1#

main73370-35271-C0iGSJ15..GCC,GEN200707-200908

BLACK,TRIM1#

sub73370-35271

main73370-35271-C2iGSJ15..GCC,GEN200908-201011

BLACK,TRIM1#

sub73370-35271

main73370-35280-C0iGSJ15..CHI200712-200908

BLACK,TRIM1#

sub73370-35280

main73370-35280-C2iGSJ15..CHI200908-201011

BLACK,TRIM1#

sub73370-35280

main73370-35300-C0iGSJ15..CHI201011-201208

BLACK,TRIM1#

main73370-35310-C0iGSJ15..ARL,GCC201011

BLACK,TRIM1#

main73370-35320-C0iGSJ15..CHI201208-201512

BLACK,TRIM1#

73373COVER, REAR SEAT SHOULDER BELT

main73373-60050-B2iGSJ15200707-200903

DK.GRAY,TRIM1#

sub73373-60090

sub73237-60040

main73373-60090-B1iGSJ15200904-201011

DK.GRAY,TRIM1#

73380ABELT ASSY, REAR SEAT, INNER

main73380-35170-C0iGSJ15200707-200908

BLACK,TRIM1#

sub73380-35170

main73380-35170-C2iGSJ15200908-201011

BLACK,TRIM1#

sub73380-35170

73383AHOOK, RR SEAT BELT

main73383-60010iGSJ15200707-201011

73460CBELT ASSY, REAR SEAT CENTER, INNER

main73460-35010-C0iGSJ15200707-200908

BLACK,TRIM1#

sub73460-35010

main73460-35010-C2iGSJ15200908-201011

BLACK,TRIM1#

sub73460-35010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511041

main90105-11041

9010511062

main90105-11062

9010911053

main90109-11053

9017811002

main90178-11002

9017911010

main90179-11010

91631J0612

main91631-J0612

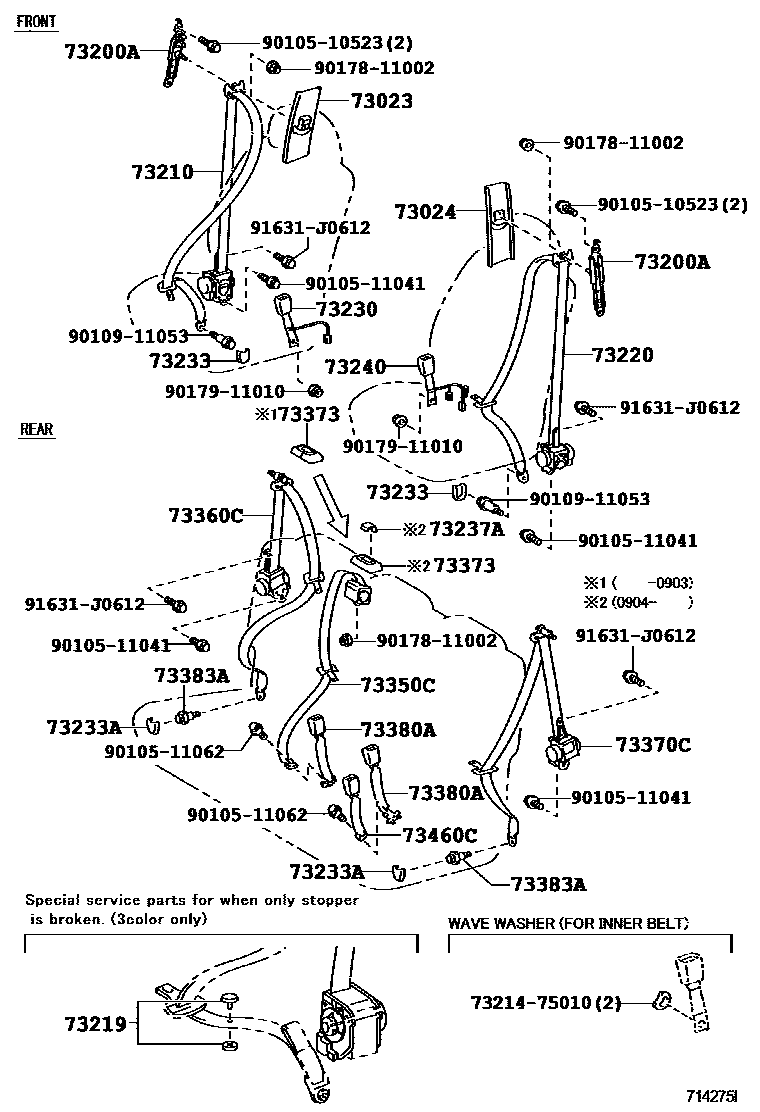

26 parts on this diagram · 1 diagram in section
