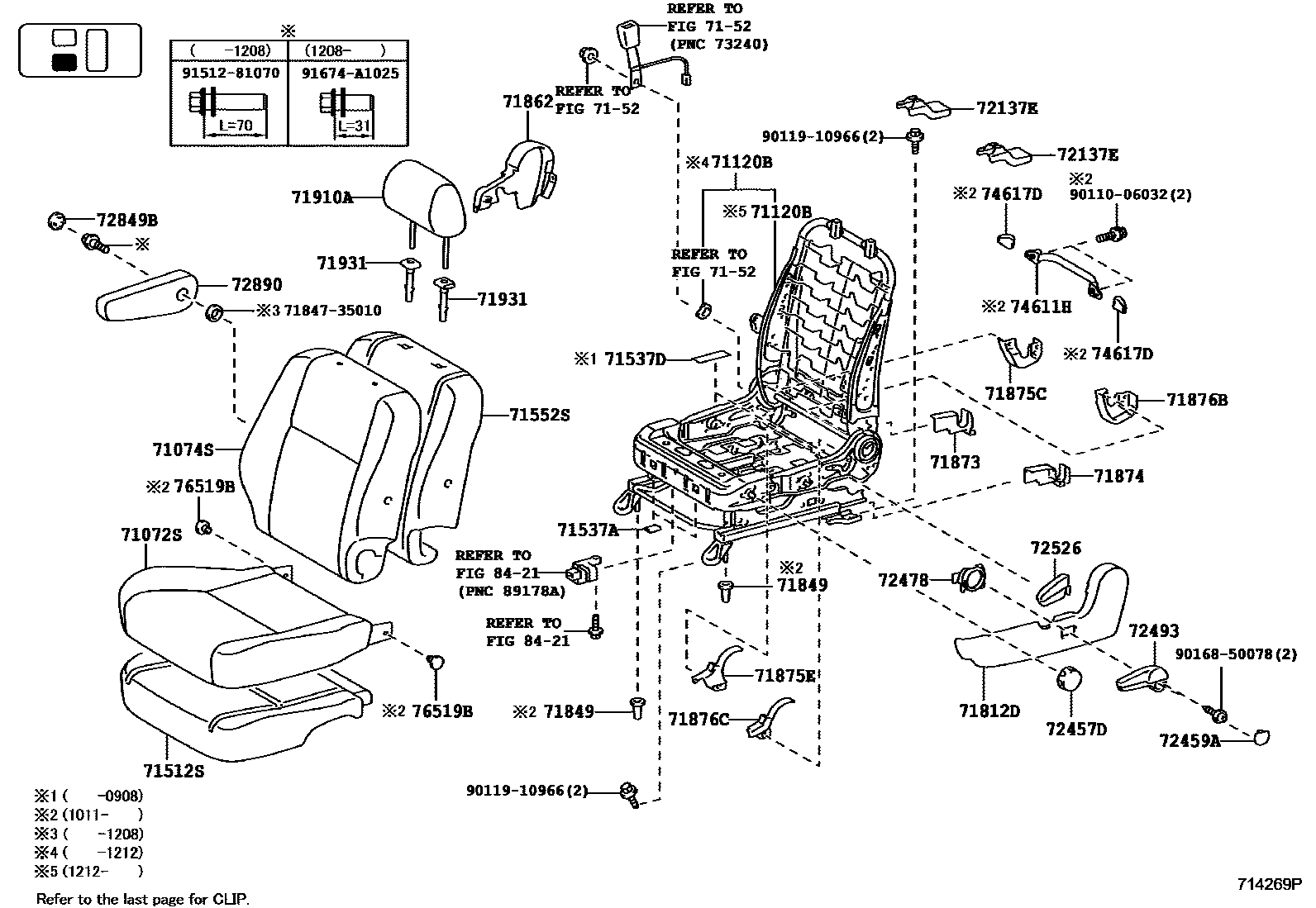

SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1DRIVER SEAT W(SRS SIDE AIR BA0003 1PASSENGER SEAT 0004 1PASSENGER SEAT W(SRS SIDE AIR0005 1DRIVER SEAT 0006 1DRIVER SEAT W(SRS SIDE AIR BA0007 1PASSENGER SEAT 0008 1PASSENGER SEAT W(SRS SIDE AIR0009 1REAR SEAT (RH) 0010 1REAR SEAT (LH) 0011 1CLIP

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-35243-B1iGSJ15200707-201307

DK.GRAY,TRIM1#

sub71072-35244¥20,200

sub71072-35245¥29,200

main71072-35244-B1iGSJ15..MTM201308-201712

DK.GRAY,TRIM1#

main71072-35390-B0iGSJ15..ARL,SA201011-201308

DK.GRAY,TRIM1#

sub71072-35391¥23,200

sub71072-35392¥33,400

main71072-35391-B0iGSJ15..ARL,SA201301

DK.GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-35683-B2iGSJ15..GCC,GEN200707-201011

DK.GRAY,TRIM1#

sub71074-35684¥40,200

main71074-35750-B0iGSJ15..(GCC,GEN)..LHD201208-201307

DK.GRAY,TRIM1#

sub71074-35751

main71074-35751-B0iGSJ15..MTM201308-201712

DK.GRAY,TRIM1#

main71074-35760-B0iGSJ15..CHI200712-201011

DK.GRAY,TRIM1#

sub71074-35761

main71074-35820-B0iGSJ15..GEN..LHD;GSJ15..ATM..GCC201208-201307

SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1#

sub71074-35821

main71074-35820-B0iGSJ15..CHI201208-201307

DK.GRAY,TRIM1#

sub71074-35821

main71074-35821-B0iGSJ15..CHI201308-201512

DK.GRAY,TRIM1#

main71074-35890-B0iGSJ15..(GCC,GEN)..LHD201011-201208

DK.GRAY,TRIM1#

sub71074-35891

main71074-35A00-B0iGSJ15..GEN..LHD;GSJ15..ATM..GCC201011-201208

DK.GRAY,TRIM1#

sub71074-35A01

main71074-35A00-B0iGSJ15..CHI201011-201208

SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1#

sub71074-35A01

main71074-35A10-B0iGSJ15..ARL,SA201011-201208

SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1#

sub71074-35A11¥40,500

main71074-35A10-B0iGSJ15..ARL,SA201011-201208

DK.GRAY,TRIM1#

sub71074-35A11¥40,500

main71074-35A20-B0iGSJ15..GEN..RHD201011-201208

DK.GRAY,TRIM1#

sub71074-35A21

main71074-35B00-B0iGSJ15..GEN..RHD201208-201212

DK.GRAY,TRIM1#

sub71074-35B01¥28,100

main71074-35B00-B0iGSJ15..GEN..RHD201208-201212

SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1#

sub71074-35B01¥28,100

main71074-35B01-B0iGSJ15..GEN..RHD201301

DK.GRAY,TRIM1#

main71074-35B10-B0iGSJ15..GEN..RHD201208-201308

DK.GRAY,TRIM1#

sub71074-35B11

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-35090iGSJ15200707-200804

sub71120-35250

main71120-35130iGSJ15..(GCC,GEN)..LHD201011-201208

sub71120-35370

main71120-35140iGSJ15..CHI201011-201208

SRS AIR BAG-WITH(CURTAIN SHIELD)

sub71120-35380

main71120-35210iGSJ15..(GCC,GEN)..LHD201208-201212

sub71120-35211

sub73214-75010¥170

main71120-35211iGSJ15..(GCC,GEN)..LHD201212-201408

sub71120-35212

main71120-35212iGSJ15..MTM201409-201712

main71120-35220iGSJ15..GEN..LHD;GSJ15..ATM..GCC201208-201212

SRS AIR BAG-WITH(CURTAIN SHIELD)

sub71120-35221

sub73214-75010¥170

main71120-35221iGSJ15..CHI201212-201408

SRS AIR BAG-WITH(CURTAIN SHIELD)

sub71120-35222

main71120-35222iGSJ15..CHI201409-201512

main71120-35250iGSJ15200805-201005

sub71120-35252

main71120-35252iGSJ15201006-201011

sub71120-35400

main71120-35260iGSJ15..GEN..RHD¥64,800201011-201208

SRS AIR BAG-WITH(CURTAIN SHIELD)

main71120-35270iGSJ15..GEN..RHD201011-201208

main71120-35340iGSJ15..ARL,SA¥64,800201208-201212

SRS AIR BAG-WITH(CURTAIN SHIELD)

sub71120-35341¥45,000

sub73214-75010¥170

main71120-35341iGSJ15..ARL,SA¥45,000201212

main71120-35350iGSJ15..GEN..RHD201208-201212

sub71120-35351

sub73214-75010¥170

main71120-35351iGSJ15..GEN..RHD201212-201308

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-35010iGSJ15..RHD¥13,900201011

main71512-35040iGSJ15¥9,100200707-201712

7152

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010iGSJ15¥60200707-201712

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-60050iGSJ15¥200200707-200908

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-35010iGSJ15..ATM..(GCC,GEN)..LHD201011-201712

main71506-35020iGSJ15..GEN..RHD201011-201308

main71552-35050iGSJ15¥13,200200707-201011

main71552-35120iGSJ15..CHI201011-201512

main71552-35130iGSJ15..GEN..RHD¥9,100201011

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-35160-B1iGSJ15..RHD201011

DK.GRAY,TRIM1#

sub71812-35160¥4,110

main71812-35200-B0iGSJ15..MTM200707-201712

DK.GRAY,TRIM1#

71849CAP, SEAT ADJUSTER COVER, LH

main71848-33010iGSJ15..MTM¥100201011-201712

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-60110-B3iGSJ15200707-201712

DK.GRAY,TRIM1#

sub71862-60110¥2,790

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-53030iGSJ15¥500200707-201712

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-53010iGSJ15¥500200707-201712

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-58060iGSJ15¥740200707-201712

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60160-B3iGSJ15200707-201712

DK.GRAY,TRIM1#

sub71875-60160¥480

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-58060iGSJ15..ATM¥740200707-201712

71876BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-58060iGSJ15¥740200707-201712

71876CCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-60160-B3iGSJ15200707-201712

DK.GRAY,TRIM1#

sub71876-60160¥480

71910AHEADREST ASSY, FRONT SEAT

main71910-35730-B0iGSJ15200707-201011

DK.GRAY,TRIM1#

sub71910-35732¥14,100

main71910-35731-B1iGSJ15..LHD201011-201412

DK.GRAY,TRIM1#

sub71910-35870

main71910-35762-B1iGSJ15..RHD201011

DK.GRAY,TRIM1#

main71910-35870-B0iGSJ15..CHI201412-201712

DK.GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-52030-B0iGSJ15..MTM200707-201712

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

sub71930-52030¥950

main71931-42020-B4iGSJ15..MTM200707-201712

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

sub71931-42020¥590

72137ECOVER, SEAT TRACK, NO.1

main72137-35090-B0iGSJ15200707-201712

DK.GRAY,TRIM1#

72457DKNOB, VERTICAL SEAT ADJUSTER, LH

main72457-58010-B0iGSJ15200707-201712

DK.GRAY,TRIM1#

sub72457-58010¥1,090

72459ACAP, VERTICAL SEAT ADJUSTER KNOB

main72459-60020-B2iGSJ15200707-201712

DK.GRAY,TRIM1#

sub72459-60020¥900

72478BUSH, VERTICAL ADJUSTER

main72478-60010iGSJ15¥410200707-201712

72493HANDLE, VERTICAL ADJUSTING, NO.2

main72493-60020-B2iGSJ15200707-201712

DK.GRAY,TRIM1#

sub72493-60020¥3,030

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-60070-B3iGSJ15..MTM200707-201712

DK.GRAY,TRIM1#

72849BCAP, SEAT ARMREST, NO.1

main72848-28030-B5iGSJ15..MTM201208-201712

DK.GRAY,TRIM1#

sub72848-28030¥360

sub72848-0E020

main72848-60010-B3iGSJ15200707-201208

DK.GRAY,TRIM1#

sub72848-60010¥370

72890ARMREST ASSY, SEAT, C LH

main72890-35012-B1iGSJ15200707-201208

DARK GRAY,TRIM1#

sub72890-35013¥21,100

main72890-35020-B0iGSJ15..ARL,SA201208-201308

DARK GRAY,TRIM1#

sub72890-35021¥16,700

main72890-35021-B0iGSJ15..MTM201301-201712

DARK GRAY,TRIM1#

74611HGRIP, ASSIST

main74607-35010-B0iGSJ15..MTM201011-201712

DK.GRAY,TRIM1#

sub74607-35010¥2,130

74617DPLUG, ASSIST GRIP

main74617-35050-B0iGSJ15..MTM201011-201712

DK.GRAY,TRIM1#

sub74617-35050¥220

76519BCLIP, FRONT SEAT CUSHION COVER

main76519-42010iGSJ15..MTM¥80201011-201712

8421

7184735010ORNAMENT, FRONT SEAT BRACKET, RH

main71847-35010¥190

9011006032

main90110-06032¥70

9011910966

main90119-10966¥110

9016850078

main90168-50078¥60

9151281070

main91512-81070¥260

91674A1025

main91674-A1025¥120

38 parts on this diagram · 11 diagrams in section
