LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
WIRELESS DOOR LOCK-WITH
69059ACYLINDER & KEY SET, SPARE WHEEL LOCK
69503CYLINDER SET, LOCK
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
69551RETAINER, BACK DOOR LOCK CYLINDER
69597NUT, SPARE WHEEL LOCK
89070ETRANSMITTER ASSY, DOOR CONTROL
BLANK KEY
BLANK KEY
WIRELESS DOOR LOCK-WITH,BLANK KEY
BLANK KEY
PANAMA SPEC,BLANK KEY
BELIZE SPEC,BLANK KEY
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
WIRELESS DOOR LOCK-WITH
BELIZE SPEC
PANAMA SPEC
WIRELESS DOOR LOCK-WITH
89752ACASE, TRANSMITTER HOUSING
BLANK KEY
WIRELESS DOOR LOCK-WITH,BLANK KEY
BLANK KEY
89785BTRANSMITTER, TRANSPONDER KEY MASTER
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY
BLANK KEY
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020

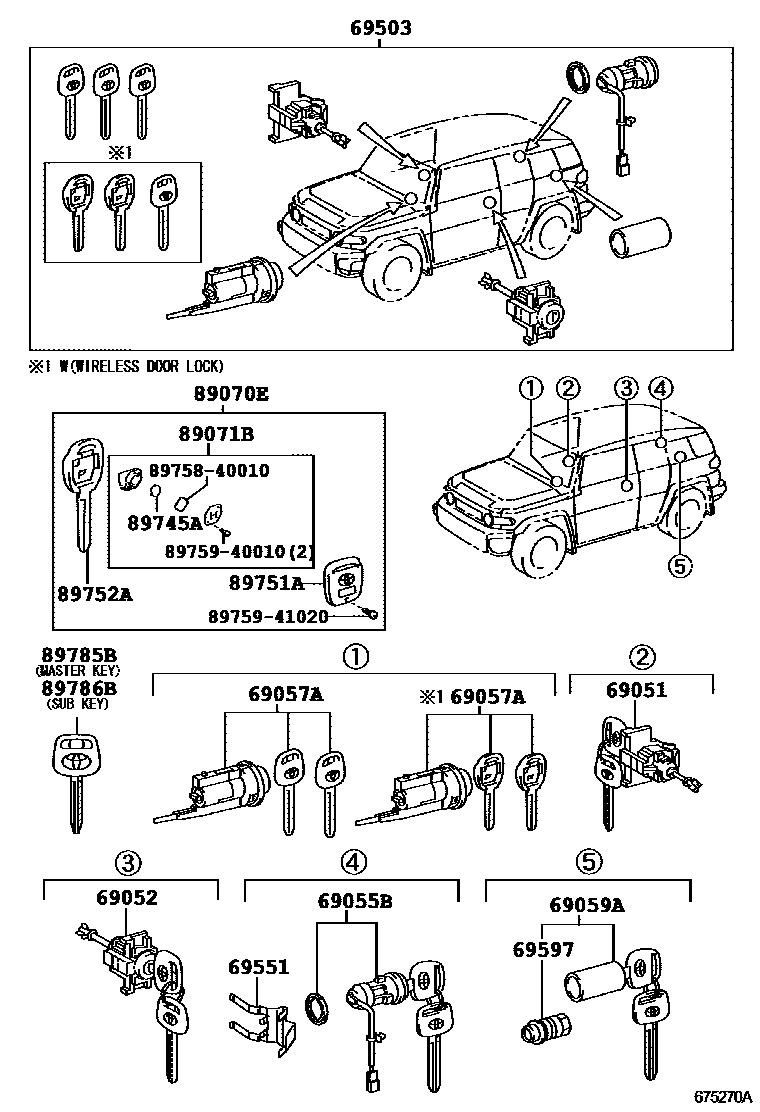

18 parts on this diagram · 2 diagrams in section
