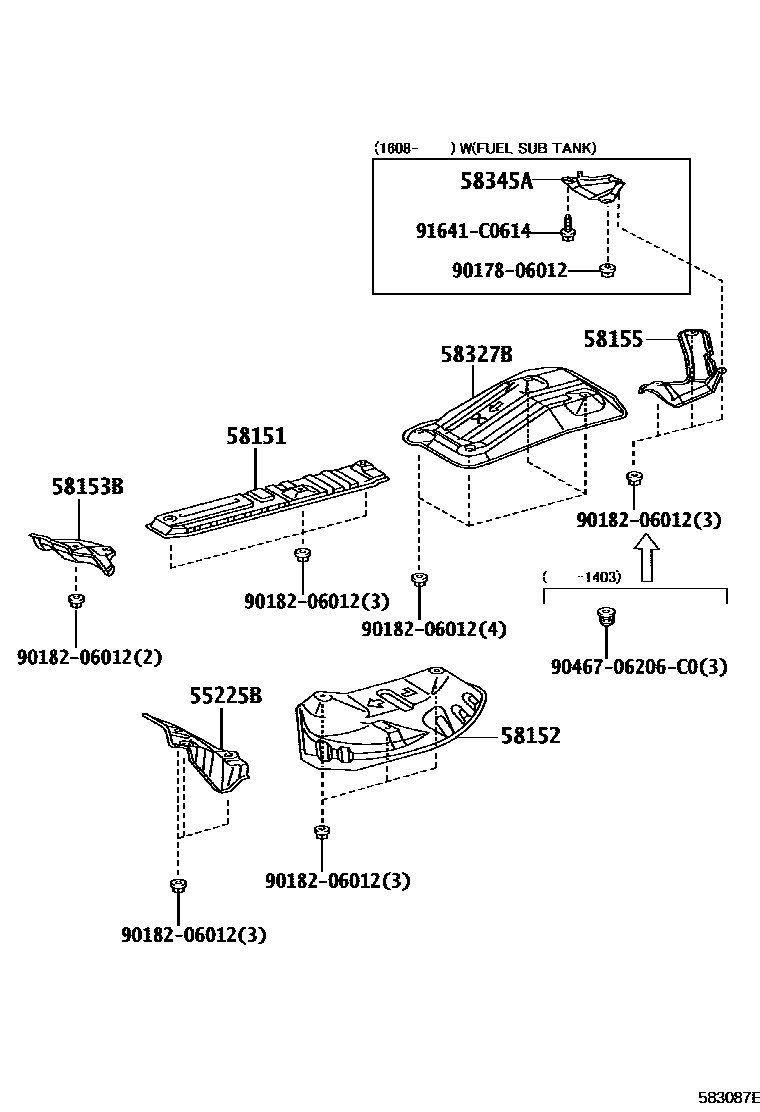

FLOOR INSULATOR

55225BINSULATOR, DASH PANEL HEAT

main55225-35170iGSJ15200707-201011

main55225-35171iGSJ15201802

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-35120iGSJ15200707-201011

main58151-35121iGSJ15201804

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-35010iGSJ15200707-201011

main58152-35020iGSJ15201208-201803

main58152-35030iGSJ15201804

58153BINSULATOR, FLOOR HEAT, NO.3

main58153-35130iGSJ15200707-201011

main58153-60130iGSJ15201802

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-35020iGSJ15200707-201011

sub58155-60100

sub90178-06012

main58155-35040iGSJ15201208-201403

sub90178-06012

main58155-35050iGSJ15201403

main58155-35070iGSJ15201608

FUEL TANK-WITH(SUB TANK)

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-35061iGSJ15200707-201011

main58327-35062iGSJ15201411-201802

main58327-35063iGSJ15201803

58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58331-35030iGSJ15..MTM201608-201712

FUEL TANK-WITH(SUB TANK)

9017806012

main90178-06012

9018206012

main90182-06012

9046706206C0

main90467-06206C0

91641C0614

main91641-C0614

11 parts on this diagram · 1 diagram in section
