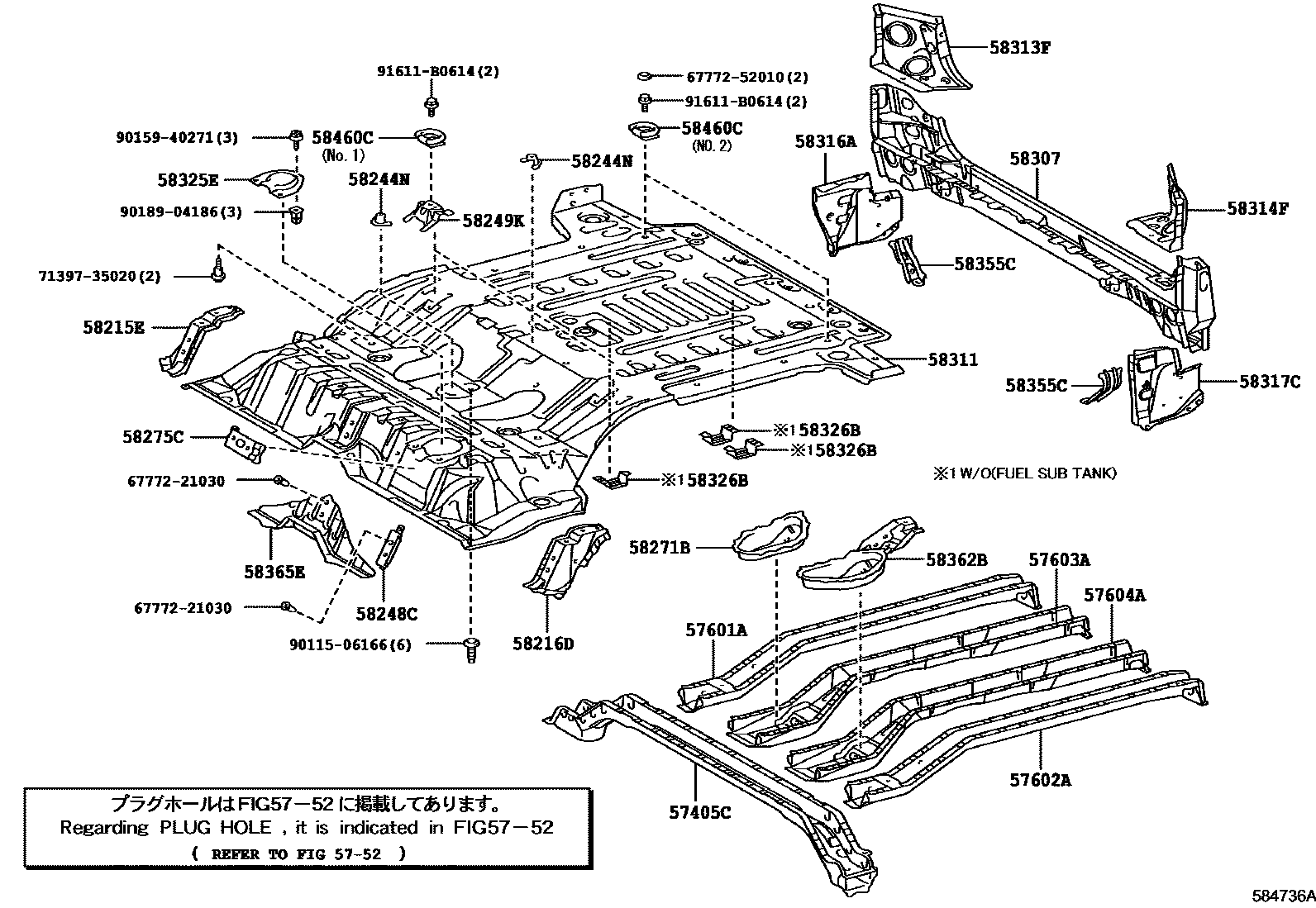

REAR FLOOR PANEL & REAR FLOOR MEMBER

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-35011iGSJ15200707-201011

5752

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-35030iGSJ15200707-201011

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57601-35030iGSJ15200707-201011

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-35020iGSJ15200707-201011

main57603-35021iGSJ15201208

main57603-35030iGSJ15..ARL,GCC,GEN,SA201208-201607

FUEL TANK-WITH(SUB TANK)

main57603-35031iGSJ15201608

FUEL TANK-WITH(SUB TANK)

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-35020iGSJ15200707-201011

main57604-35021iGSJ15201208

main57604-35030iGSJ15..ARL,GCC,GEN,SA201208-201607

FUEL TANK-WITH(SUB TANK)

main57604-35031iGSJ15201608

FUEL TANK-WITH(SUB TANK)

58215EBRACKET, REAR SEAT MOUNTING, RH

main58215-35030iGSJ15200707-201011

58216DBRACKET, REAR SEAT MOUNTING, LH

main58216-35010iGSJ15201011

58244NSTOPPER, REAR SEAT CUSHION BRACKET

main58244-35010×2iGSJ15200707-201011

58248CREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-35040iGSJ15201011

main58247-35041iGSJ15200908-200909

58249KBRACKET, CENTER FLOOR BOARD SUPPORT

main58249-35040×2iGSJ15200707-201011

58271BPLATE, FLOOR SIDE, REAR, RH

main58271-35010iGSJ15200707-201011

58275CBRACKET, WIRE HARNESS PROTECTOR

main58275-35020iGSJ15200707-201011

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-35030iGSJ15200707-201011

main58307-35031iGSJ15201208

main58307-35050iGSJ15..ARL,GCC,GEN,SA201208

FUEL TANK-WITH(SUB TANK)

58311PAN, REAR FLOOR

main58311-35090iGSJ15200707-200812

main58311-35091iGSJ15200901-201011

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-35020iGSJ15200707-201011

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58306-35030iGSJ15200707-201011

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-35050iGSJ15200707-201011

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-35040iGSJ15200707-201011

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-35010iGSJ15200707-201011

58326BBRACKET, FLEXIBLE HOSE MOUNTING

main58326-35010×3iGSJ15200707-201011

58355CBRACKET, REAR BUMPER ARM

main58355-35020×2iGSJ15201011

58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH

main58204-35051iGSJ15200707-201011

58365EREINFORCEMENT, REAR FLOOR PANEL, CENTER

main57551-35010iGSJ15200910-201011

main57551-35012iGSJ15200908-200909

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-35012×2iGSJ15200707-201011

NO.2

main58460-35020×2iGSJ15201011

NO.1

6777221030WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-21030

6777252010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-52010

7139735020STOPPER, REAR SEAT

main71397-35020

9011506166

main90115-06166

9015940271

main90159-40271

9018904186

main90189-04186

91611B0614

main91611-B0614

32 parts on this diagram · 1 diagram in section
