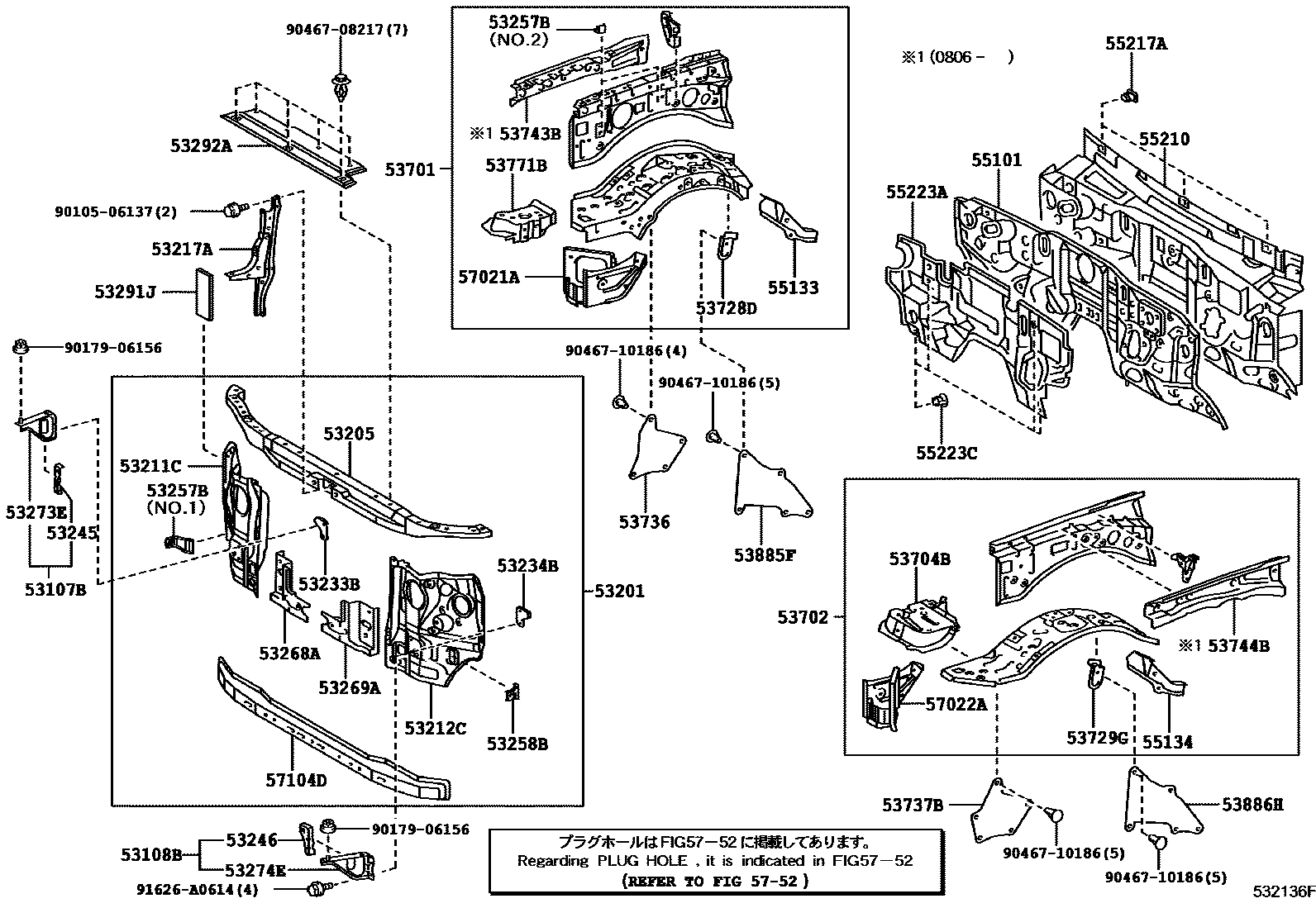

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53107BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH

main53107-35030iGSJ15..MTM200707-201712

53108BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER LH

main53108-35030iGSJ15..ATM200707-201712

53201SUPPORT SUB-ASSY, RADIATOR

main53201-35231iGSJ15..GCC,GEN200707-200907

sub53201-35232

sub90950-01958

main53201-35232iGSJ15..ATM..(GCC,GEN)..LHD200908-201712

main53201-35240iGSJ15..CHI200712-200907

sub53201-35241

sub90950-01958

main53201-35241iGSJ15..CHI200908-201011

ALGERIA SPEC

main53201-35241iGSJ15..RHD;GSJ15..CHI201011

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-35030iGSJ15200707-200907

sub53205-35031

main53205-35031iGSJ15200908-201712

53211CSUPPORT, RADIATOR, RH

main53211-35171iGSJ15..GCC,GEN200707-200907

sub53211-35172

sub90950-01958

main53211-35172iGSJ15..GCC,GEN200908-201712

main53211-35180iGSJ15..CHI200712-200907

sub53211-35181

sub90950-01958

main53211-35181iGSJ15..CHI200908-201011

ALGERIA SPEC

main53211-35181iGSJ15..RHD;GSJ15..CHI201011

53212CSUPPORT, RADIATOR, LH

main53212-35111iGSJ15..(GCC,GEN)..LHD200707-201401

sub53212-35112

main53212-35112iGSJ15..MTM201402-201712

main53212-35120iGSJ15..RHD;GSJ15..CHI200712-201401

sub53212-35121

main53212-35121iGSJ15..RHD;GSJ15..CHI201402

53217ABRACE, HOOD LOCK SUPPORT

main53209-35030iGSJ15200707-201712

53233BBRACKET, HEADLAMP, INNER RH

main53233-35010iGSJ15..MTM200707-201712

53234BBRACKET, HEADLAMP, INNER LH

main53234-35010iGSJ15200707-201712

53245BRACKET, HEADLAMP, RH

main53245-35030iGSJ15200707-201712

53246BRACKET, HEADLAMP, LH

main53246-35020iGSJ15..MTM200707-201712

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iGSJ15200707-201712

NO.2

main53257-35060iGSJ15..MTM200707-201712

NO.1

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-35010iGSJ15..ATM200707-201712

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-35040iGSJ15200707-201712

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-35040iGSJ15200707-201712

53273EBRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-35090iGSJ15200707-201712

53274EBRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-35070iGSJ15200707-201712

53291JSEAL, RADIATOR SUPPORT

main53291-35010iGSJ15200707-201712

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-35020iGSJ15200707-201712

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-35A11iGSJ15200707-200805

sub53701-35A30

main53701-35A30iGSJ15200806-200812

sub53701-35A31

main53701-35A31iGSJ15200901-200908

sub53701-35A32

sub90333-01007

main53701-35A50iGSJ15200908-201108

main53701-35A60iGSJ15201108-201412

sub53701-35A61

main53701-35A61iGSJ15..MTM201501-201712

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-35A01iGSJ15200707-200805

sub53702-35A10

main53702-35A10iGSJ15200806-200812

sub53702-35A11

main53702-35A11iGSJ15200901-201412

sub53702-35A12

main53702-35A12iGSJ15..MTM201501-201712

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-35081iGSJ15200707-200903

sub53704-35082

main53704-35082iGSJ15200904-201501

sub53704-60050

main53704-60050iGSJ15201501-201706

sub53704-60060

main53704-60060iGSJ15..MTM201706-201712

53728DBRACKET, FENDER APRON, RH

main53728-35060iGSJ15200707-201712

53729GBRACKET, FENDER APRON, LH

main53728-35060iGSJ15200707-201712

53736SEAL, FRONT FENDER APRON, RH

main53735-35150iGSJ15200707-202111

sub53735-35151

main53735-35151iGSJ15202111

53737BSEAL, FRONT FENDER APRON, LH

main53736-35150iGSJ15200707-202111

sub53736-35151

main53736-35151iGSJ15202111

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-35040iGSJ15200806-201712

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-35030iGSJ15200806-201712

53771BSUPPORT, BATTERY CARRIER, RH

main53703-60061iGSJ15201501-201706

sub53703-60080

main53703-60080iGSJ15..MTM201706-201712

main53771-35080iGSJ15200707-200908

53885FSHIELD, FRONT FENDER SPLASH, REAR RH

main53885-35020iGSJ15..GCC200707-200908

main53885-60030iGSJ15..GCC200908-201011

main53886-35020iGSJ15..CHI,GEN200707-200908

main53886-60030iGSJ15..ARL,CHI,GEN,SA200908-202111

sub53885-60030

53886HSHIELD, FRONT FENDER SPLASH, REAR LH

main53885-35020iGSJ15..GCC200707-200908

main53885-60030iGSJ15..GCC200908-201011

main53886-35020iGSJ15..CHI,GEN200707-200908

main53886-60030iGSJ15..ARL,CHI,GEN,SA200908-202111

sub53885-60030

55101PANEL SUB-ASSY, DASH

main55101-35A30iGSJ15..ATM200707-201011

main55101-35A40iGSJ15..MTM200707-201712

main55101-35A50iGSJ15..RHD201011

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-35021iGSJ15200707-200811

sub55133-60060

main55133-60060iGSJ15200812-201712

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-35020iGSJ15200707-200811

sub55134-60070

main55134-60070iGSJ15200812-201712

55210INSULATOR ASSY, DASH PANEL

main55210-35370iGSJ15..ATM200707-200805

sub55210-35371

main55210-35371iGSJ15..ATM..LHD200806-201512

sub55210-35372

main55210-35372iGSJ15..ATM..LHD201601

main55210-35380iGSJ15..MTM200707-200805

sub55210-35381

main55210-35381iGSJ15..MTM200806-201712

main55210-35400iGSJ15..RHD201011

55217ARETAINER, DASH PANEL SILENCER

main55217-35020iGSJ15200707-201712

55223AINSULATOR, DASH PANEL, OUTER

main55223-35071iGSJ15200707-200811

sub55223-35072

main55223-35072iGSJ15200812-201011

sub55223-35073

main55223-35073iGSJ15..LHD201011-201512

sub55223-35074

main55223-35074iGSJ15..LHD201601-201902

main55223-35084iGSJ15..RHD201011

main55223-35110iGSJ15..LHD201902

55223CCLIP

main90467-06169iGSJ15201011-201012

main90467-06206-C0iGSJ15..MTM201101-201712

BLACK

57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-35060iGSJ15200707-201712

57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-35050iGSJ15200707-201712

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-35060iGSJ15200707-200808

sub57104-35061

main57104-35061iGSJ15200809-201712

5752

9010506137

main90105-06137

9017906156

main90179-06156

9046708217

main90467-08217

9046710186

main90467-10186

91626A0614

main91626-A0614

47 parts on this diagram · 2 diagrams in section
