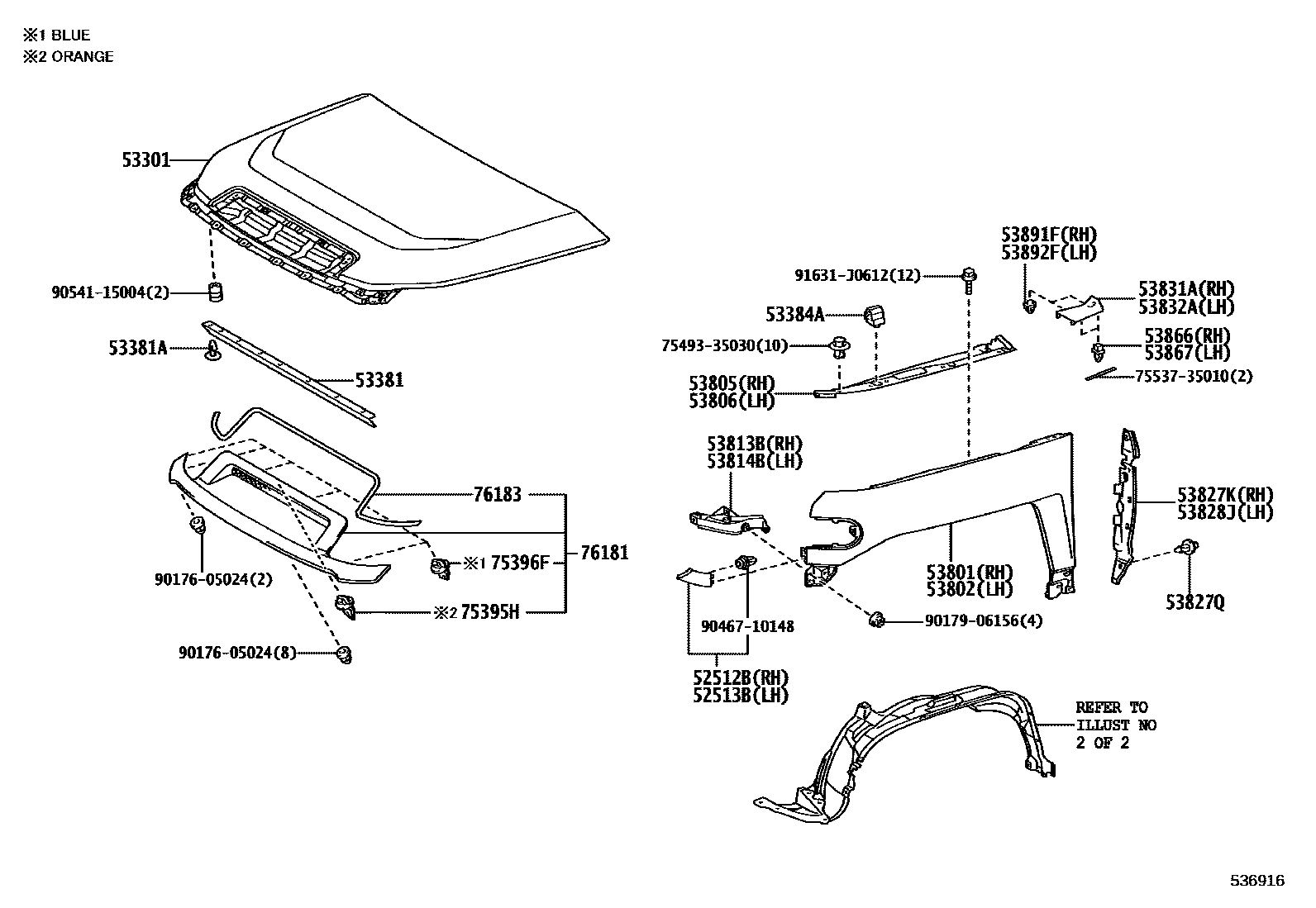

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

52512BFILLER, FRONT BUMPER, RH

main52512-35100-A0iGSJ15..MTM201011-201712

WHITE,058

main52512-35100-B0iGSJ15200707-200808

SILVER ME.,1D4 ,2JR

main52512-35100-B1iGSJ15201011-201208

GRAY ME.,2KB

main52512-35100-B2iGSJ15..ATM201208

CEMENT GRAY ME.,2KY

main52512-35100-C0iGSJ15200707-200808

BLACK MC.,211 ,2JW

main52512-35100-C1iGSJ15..ATM201011

BLACK,2KC

main52512-35100-D1iGSJ15201011-201108

BRICK RED ME.,2JX

main52512-35100-D2iGSJ15201108-201208

RED,3L5

main52512-35100-E0iGSJ15200707-201011

BEIGE,2JY ,4U0

main52512-35100-E1iGSJ15..MTM201011-201712

BEIGE,2KP

main52512-35100-E2iGSJ15201208-201408

ORANGE,2LF

main52512-35100-F0iGSJ15..MTM201408-201712

YELLOW,2JU

main52512-35100-G0iGSJ15201011-201408

DK.GREEN,2KD

main52512-35100-J0iGSJ15200707-200908

BLUE,2JV ,8T6

main52512-35100-J1iGSJ15201011-201308

GRAYISH BLUE,2KQ

main52512-35100-J2iGSJ15..ATM201308

SMOKY BLUE,2LS

52513BFILLER, FRONT BUMPER, LH

main52513-35100-A0iGSJ15..ATM201011

WHITE,058

main52513-35100-B0iGSJ15200707-200808

SILVER ME.,1D4 ,2JR

main52513-35100-B1iGSJ15200808-201011

GRAY ME.,2KB

main52513-35100-B2iGSJ15..MTM201208-201712

CEMENT GRAY ME.,2KY

main52513-35100-C0iGSJ15200707-200808

BLACK MC.,211 ,2JW

main52513-35100-C1iGSJ15200808-201011

BLACK,2KC

main52513-35100-D1iGSJ15200707-201011

BRICK RED ME.,2JX ,3R8

main52513-35100-D2iGSJ15..MTM201408-201712

RED,3L5

main52513-35100-E0iGSJ15200707-201011

BEIGE,2JY ,4U0

main52513-35100-E1iGSJ15..ATM201011

BEIGE,2KP

main52513-35100-E2iGSJ15201208-201408

ORANGE,2LF

main52513-35100-F0iGSJ15..ATM201408

YELLOW,2JU

main52513-35100-G0iGSJ15200908-201011

DK.GREEN,2KD

main52513-35100-J0iGSJ15200707-200908

BLUE,2JV ,8T6

main52513-35100-J1iGSJ15201011-201308

GRAYISH BLUE,2KQ

main52513-35100-J2iGSJ15..MTM201308-201712

SMOKY BLUE,2LS

53301HOOD SUB-ASSY

main53301-35180iGSJ15201011

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-35070iGSJ15..MTM201011-201712

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iGSJ15200707-201011

53384ABUMPER, FENDER TO HOOD

main53384-35020×2iGSJ15200707-201011

53801FENDER SUB-ASSY, FRONT RH

main53801-35590iGSJ15..GCC,GEN200707-201011

main53801-35610iGSJ15..CHI200712-201011

53802FENDER SUB-ASSY, FRONT LH

main53802-35680iGSJ15..GCC,GEN200707-201009

main53802-35700iGSJ15..CHI200712-201009

main53802-35720iGSJ15..GCC,GEN201010-201011

main53802-35730iGSJ15..CHI201010-201011

ALGERIA SPEC

53805SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH

main53805-35010iGSJ15200707-201007

main53805-35011iGSJ15201008-201011

53806SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH

main53806-35010iGSJ15200707-201011

53813BEXTENSION, FRONT FENDER, RH

main53813-35090iGSJ15200707-201011

53814BEXTENSION, FRONT FENDER, LH

main53814-35070iGSJ15200707-201011

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-35040iGSJ15200707-201004

main53827-35041iGSJ15201005-201011

53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-07076-C0×10iGSJ15200707-201011

BLACK

sub90467-07041

sub90467-A0016

main90467-07076-C7×10iGSJ15..ATM201703

BLACK

sub90467-07041

sub90467-A0016

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-35060iGSJ15200707-201004

main53828-35061iGSJ15201005-201011

53831APANEL, FRONT FENDER SIDE, UPPER RH

main61101-35170iGSJ15200707-200912

main61101-35171iGSJ15201001-201010

sub61101-35172

main61101-35181iGSJ15..MTM201011-201712

53832APANEL, FRONT FENDER SIDE, UPPER LH

main61102-35130iGSJ15200707-200912

main61102-35131iGSJ15201001-201010

sub61102-35132

main61102-35141iGSJ15..MTM201011-201712

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main61118-35010×2iGSJ15..ATM201011

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main61118-35010×2iGSJ15..MTM201011-201712

53891FPROTECTOR, FRONT FENDER LINER, RH

main61991-35010iGSJ15200707-201011

FRONT

main61992-35010iGSJ15200707-201011

REAR

53892FPROTECTOR, FRONT FENDER LINER, LH

main61991-35010iGSJ15..MTM201011-201712

FRONT

main61992-35010iGSJ15200707-201011

REAR

75395HCLIP, OUTSIDE MOULDING, NO.1

main75395-35070iGSJ15..ATM201011

75396FCLIP, OUTSIDE MOULDING, NO.2

main75396-35020×6iGSJ15200707-201011

76181BULGE, HOOD

main76180-35030-A0iGSJ15200707-201004

WHITE,058

main76180-35030-B0iGSJ15200707-200808

SILVER ME.,1D4 ,2JR

main76180-35030-B1iGSJ15200808-201004

GRAY ME.,2KB

main76180-35030-C0iGSJ15200707-200808

BLACK MC.,211 ,2JW

main76180-35030-C1iGSJ15200808-201004

BLACK,2KC

main76180-35030-D1iGSJ15200707-201004

BRICK RED ME.,2JX ,3R8

main76180-35030-E0iGSJ15200707-201004

BEIGE,2JY ,4U0

main76180-35030-F0iGSJ15200707-201004

YELLOW,2JU ,5A3

main76180-35030-G0iGSJ15200908-201004

DK.GREEN,2KD

main76180-35030-J0iGSJ15200707-200905

BLUE,2JV ,8T6

main76180-35031-A0iGSJ15..MTM201011-201712

WHITE,058

main76180-35031-B1iGSJ15201011-201208

GRAY ME.,2KB

main76180-35031-B2iGSJ15..MTM201208-201712

CEMENT GRAY ME.,2KY

main76180-35031-C1iGSJ15201005-201011

BLACK,2KC

main76180-35031-D1iGSJ15201005-201011

BRICK RED ME.,2JX

main76180-35031-D2iGSJ15201108-201208

RED,3L5

main76180-35031-E0iGSJ15201005-201011

BEIGE,2JY

main76180-35031-E1iGSJ15..MTM201011-201712

BEIGE,2KP

main76180-35031-E2iGSJ15201208-201408

ORANGE,2LF

main76180-35031-F0iGSJ15201005-201011

YELLOW,2JU

main76180-35031-G0iGSJ15201011-201408

DK.GREEN,2KD

main76180-35031-J0iGSJ15..RHD201011-201208

BLUE,2JV

main76180-35031-J1iGSJ15201011-201308

GRAYISH BLUE,2KQ

main76180-35031-J2iGSJ15..MTM201308-201712

SMOKY BLUE,2LS

76183PROTECTOR, HOOD BULGE, NO.1

main76183-35020iGSJ15200707-201011

7549335030RETAINER, OUTSIDE MOULDING, NO.4

main75493-35030

7553735010MOULDING, WINDSHIELD CORNER, LOWER RH

main75537-35010

9017605024

main90176-05024

9017906156

main90179-06156

9046710148

main90467-10148

9054115004

main90541-15004

91631J0612

main91631-J0612

32 parts on this diagram · 2 diagrams in section
