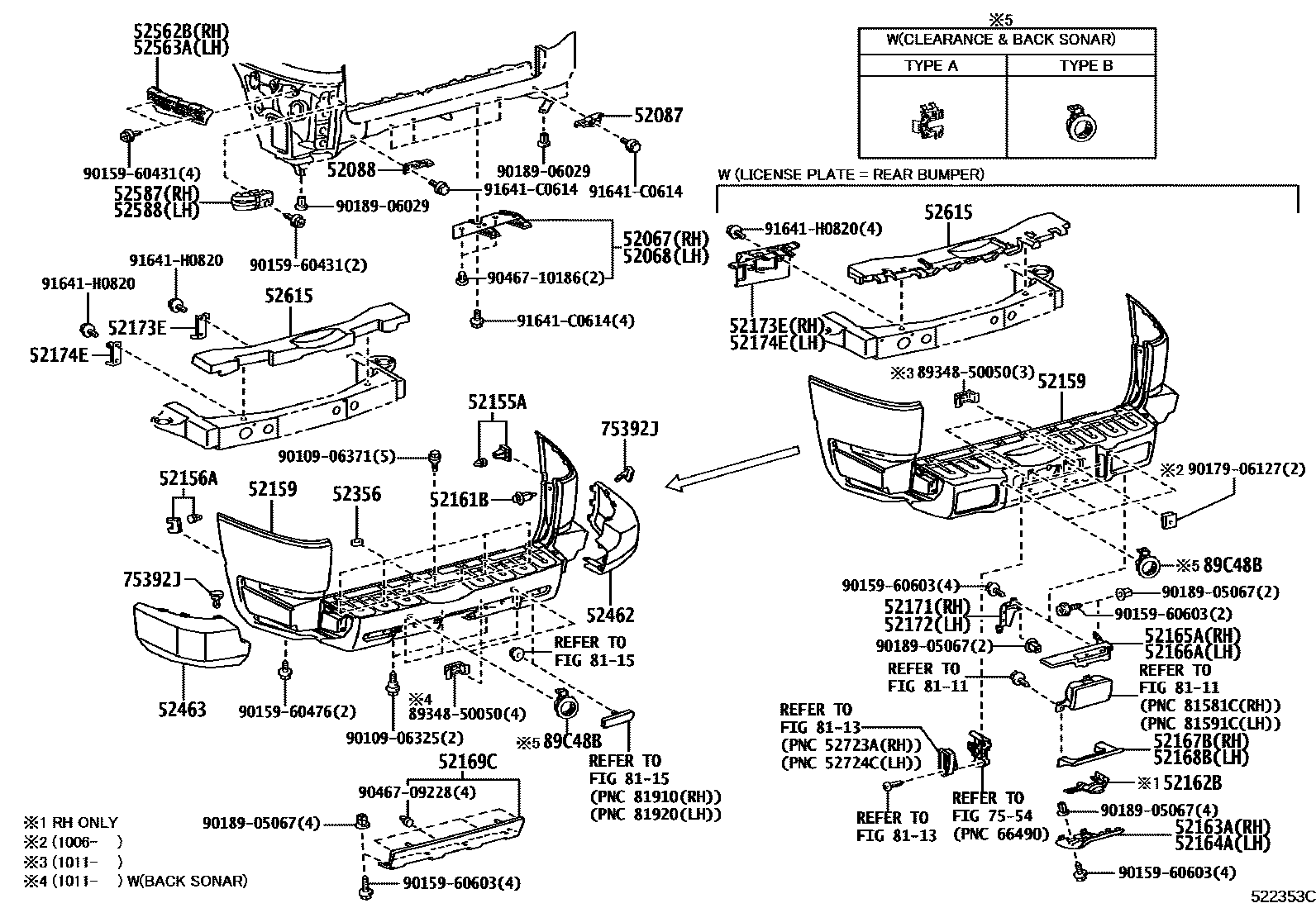

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
NO PAINT REQ.,CLEARANCE & BACK SONAR-BACK SONAR(2-SENSOR)
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,ALGERIA SPEC
NO PAINT REQ.,IVORY COAST SPEC
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(BACK SONAR)
NO PAINT REQ.
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
NO PAINT REQ.
52161BPIECE, REAR BUMPER
sub52161-0K040
52165ACOVER, REAR BUMPER, UPR RH
NO PAINT REQ.
NO PAINT REQ.,ALGERIA SPEC
NO PAINT REQ.,IVORY COAST SPEC
52166ACOVER, REAR BUMPER, UPR LH
NO PAINT REQ.,IVORY COAST SPEC
NO PAINT REQ.
NO PAINT REQ.,ALGERIA SPEC
52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH
IVORY COAST SPEC
ALGERIA SPEC
52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH
IVORY COAST SPEC
ALGERIA SPEC
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.,SPECIAL EDITION
NO PAINT REQ.,SPECIAL EDITION(KUWAIT/QATAR/YEMEN)
sub52169-35040
NO PAINT REQ.,SPECIALEDITION(SAUDI ARABIA/UAE/BAHRAIN)
sub52169-35040
52171RETAINER, REAR BUMPER SIDE, RH
ALGERIA SPEC
IVORY COAST SPEC
52172RETAINER, REAR BUMPER SIDE, LH
ALGERIA SPEC
IVORY COAST SPEC
52173EBRACKET, REAR BUMPER BAR, RH
IVORY COAST SPEC
ALGERIA SPEC
52356CUSHION, REAR BUMPER STEP
52462PAD, REAR BUMPER, RH
SILVER METALLIC
FINAL EDITION GLOBAL(LHD)
FINAL EDITION GLOBAL(RHD)
SPECIAL EDITION
52463PAD, REAR BUMPER, LH
SILVER METALLIC
NO PAINT REQ.,FINAL EDITION GLOBAL(RHD)
NO PAINT REQ.,FINAL EDITION GLOBAL(LHD)
SPECIAL EDITION
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52587RETAINER, REAR BUMPER END, RH
52588RETAINER, REAR BUMPER END, LH
52615ABSORBER, REAR BUMPER ENERGY
IVORY COAST SPEC
ALGERIA SPEC
ALGERIA SPEC
IVORY COAST SPEC
75392JRETAINER, OUTSIDE MOULDING
7554
8111
8113
8115
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
DUMMY-MAT BLACK
CLEARANCE & BACK SONAR-WITH,DUMMY-MAT BLACK
DUMMY-MAT BLACK,TYPE B:REFER ILLUST.
ALGERIA SPEC,DUMMY-MAT BLACK,TYPE B:REFER ILLUST.
IVORY COAST SPEC,DUMMY-MAT BLACK,TYPE B:REFER ILLUST.
CLEARANCE & BACK SONAR-WITH(BACK SONAR),DUMMY-MAT BLACK
CLEARANCE & BACK SONAR-BACK SONAR(2-SENSOR),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
8934850050RETAINER, ULTRASONIC SENSOR, NO.1
main89348-50050
9010906325
main90109-06325
9010906371
main90109-06371
9015960431
main90159-60431
9015960476
main90159-60476
9015960603
main90159-60603
9017906127
main90179-06127
9018905067
main90189-05067
9018906029
main90189-06029
9046709228
main90467-09228
9046710186
main90467-10186
91641C0614
main91641-C0614
91641H0820
main91641-H0820
47 parts on this diagram · 1 diagram in section
