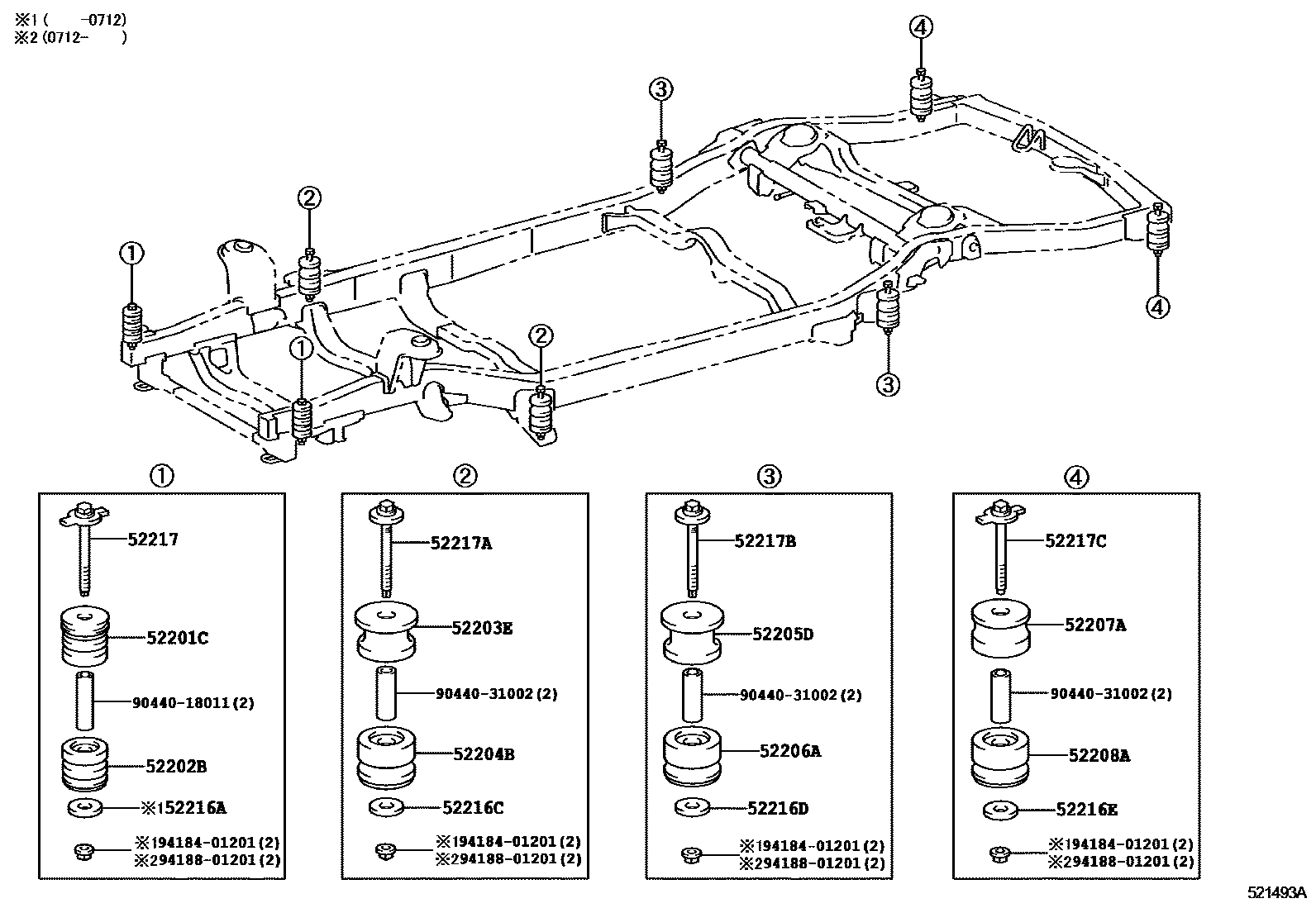

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-35100×2iGSJ15200707-201011

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-35090×2iGSJ15200707-201011

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-35210×2iGSJ15200707-201011

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-35120×2iGSJ15200707-201011

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-35160×2iGSJ15200707-201011

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-35040×2iGSJ15200707-201011

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-35050×2iGSJ15200707-201011

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52208-35050×2iGSJ15200707-201011

52216ASTOPPER, CAB MOUNTING CUSHION

main90201-12078×2iGSJ15200707-200712

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-60040×2iGSJ15200712-201011

main90201-12078×2iGSJ15200707-200712

52216DSTOPPER, CAB MOUNTING CUSHION

main52216-60040×2iGSJ15..MTM201011-201712

main90201-12078×2iGSJ15200707-200712

52216ESTOPPER, CAB MOUNTING CUSHION

main52216-60040×2iGSJ15..ATM201011

main90201-12078×2iGSJ15200707-200712

52217BOLT, BODY MOUNTING

main52217-35180×2iGSJ15200707-201011

52217ABOLT, BODY MOUNTING

main52217-35191×2iGSJ15200707-201011

52217BBOLT, BODY MOUNTING

main52217-35191×2iGSJ15200707-201011

52217CBOLT, BODY MOUNTING

main52217-35180×2iGSJ15200707-201011

9044018011

main90440-18011

9044031002

main90440-31002

9418401201

main94184-01201

9418801201

main94188-01201

20 parts on this diagram · 1 diagram in section
