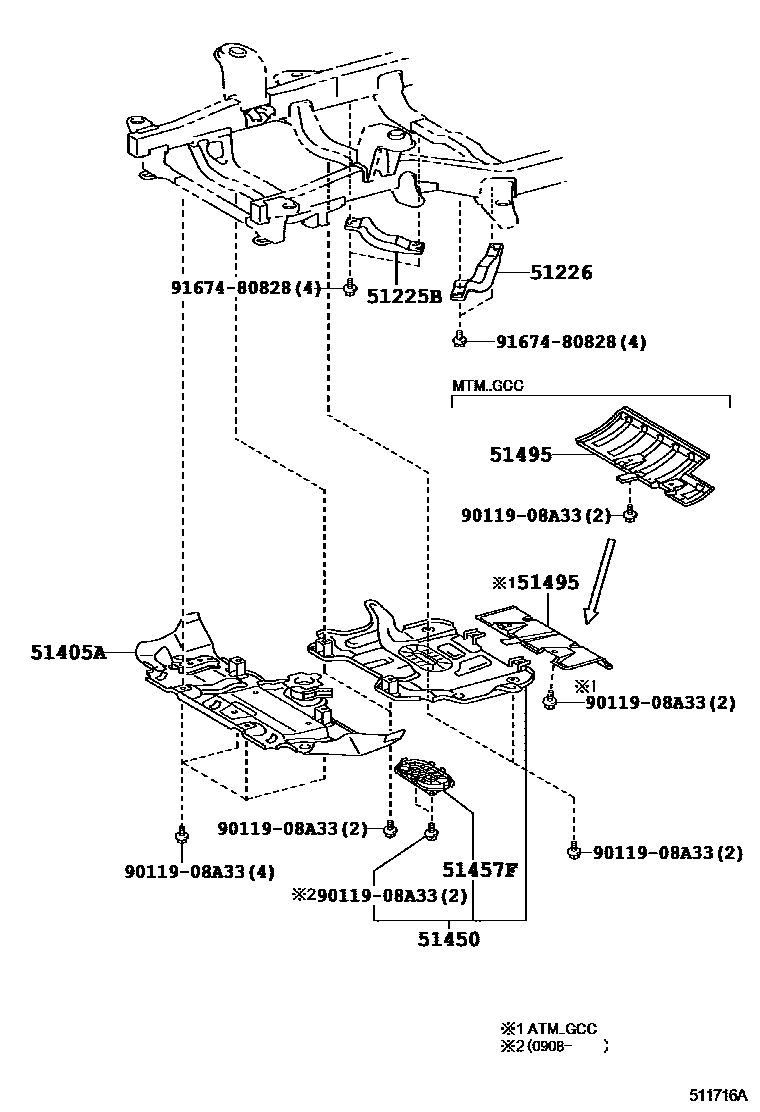

SUSPENSION CROSSMEMBER & UNDER COVER

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-35040iGSJ15..MTM200707-201712

51226BRACKET, FRONT SUSPENSION MEMBER, LH

main51226-35060iGSJ15..ATM200707-201712

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35101iGSJ15200707-200908

main51405-35150iGSJ15..ARL201011-201608

main51405-60210iGSJ15200908-201712

51450COVER ASSY, ENGINE UNDER, REAR

main51450-35010iGSJ15200707-200908

main51450-60050iGSJ15..MTM200908-201712

51457FSEAL, ENGINE UNDER COVER

main51457-35030iGSJ15200707-200908

main51457-60030iGSJ15..MTM200908-201712

51495COVER, TRANSMISSION UNDER

main51495-35050iGSJ15..GCC200707-200908

main51495-60370iGSJ15..MTM..GCC201011-201712

main51495-60380iGSJ15..GCC200908-201011

9011908A33

main90119-08A33

9167480828

main91674-80828

8 parts on this diagram · 1 diagram in section
