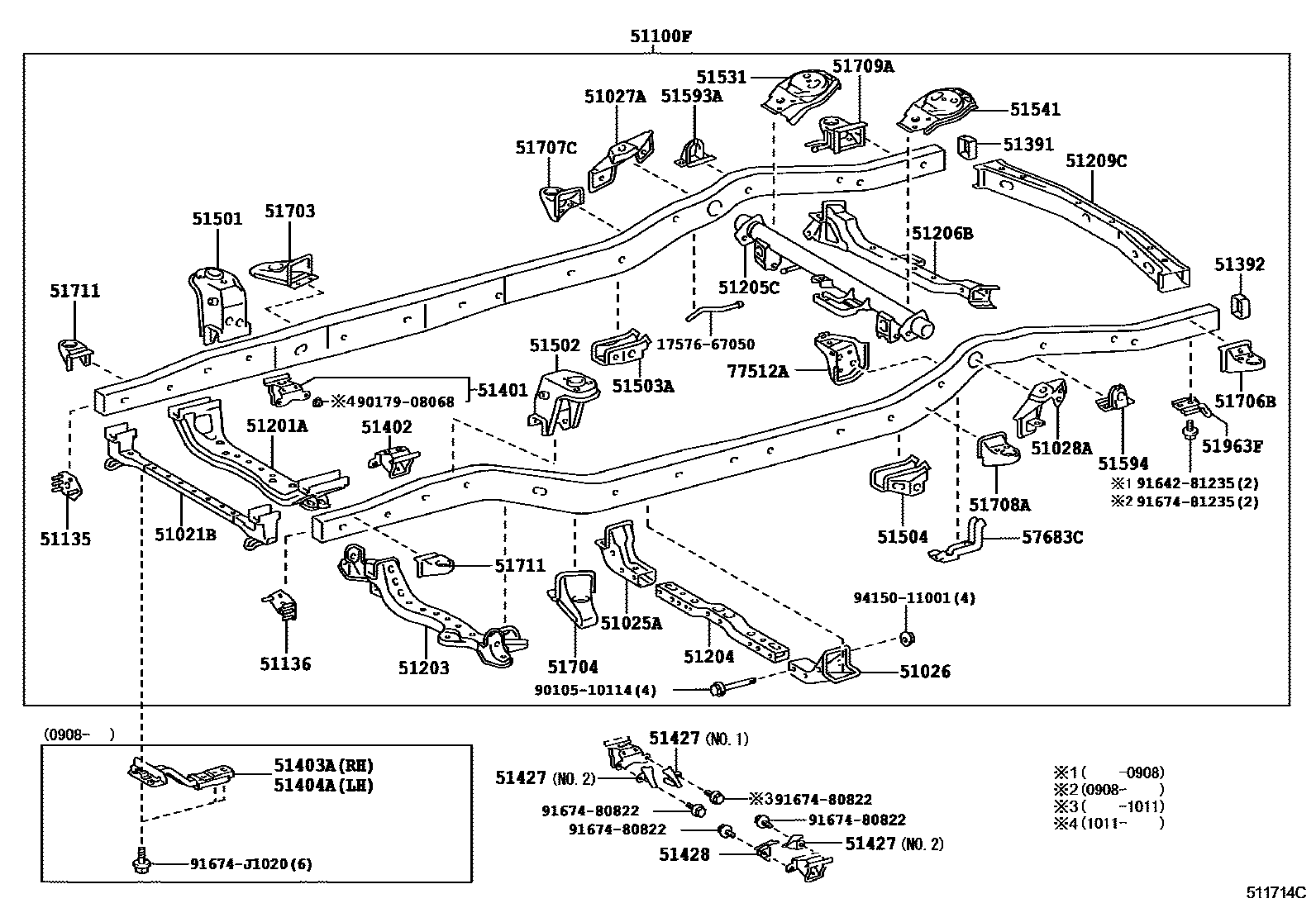

FRAME
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH
51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH
51100FFRAME SUB-ASSY
51135PLATE, FRAME SIDE RAIL, RH
51136PLATE, FRAME SIDE RAIL, LH
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51391GUSSET, FRAME REAR CROSSMEMBER, RH
51392GUSSET, FRAME REAR CROSSMEMBER, LH
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51427REINFORCEMENT, ENGINE FRONT MOUNTING, RH
NO.2
NO.1
51428REINFORCE, ENGINE MOUNTING, REAR
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
51531BRACKET, REAR SPRING SUPPORT, RH
51541BRACKET, REAR SPRING SUPPORT, LH
51593ABRACKET, REAR SPRING BUMPER, RH
51594BRACKET, REAR SPRING BUMPER, LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING
51711BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH
51963FHOOK, TRANSPORT
57683CBRACKET, FUEL TANK MOUNTING
77512ABRACKET, FUEL TANK, REAR
1757667050BRACKET, MUFFLER CLAMP
9010510114
9017908068
9164281235
9167480822
9167481235
91674J1020
9415011001
48 parts on this diagram · 2 diagrams in section
