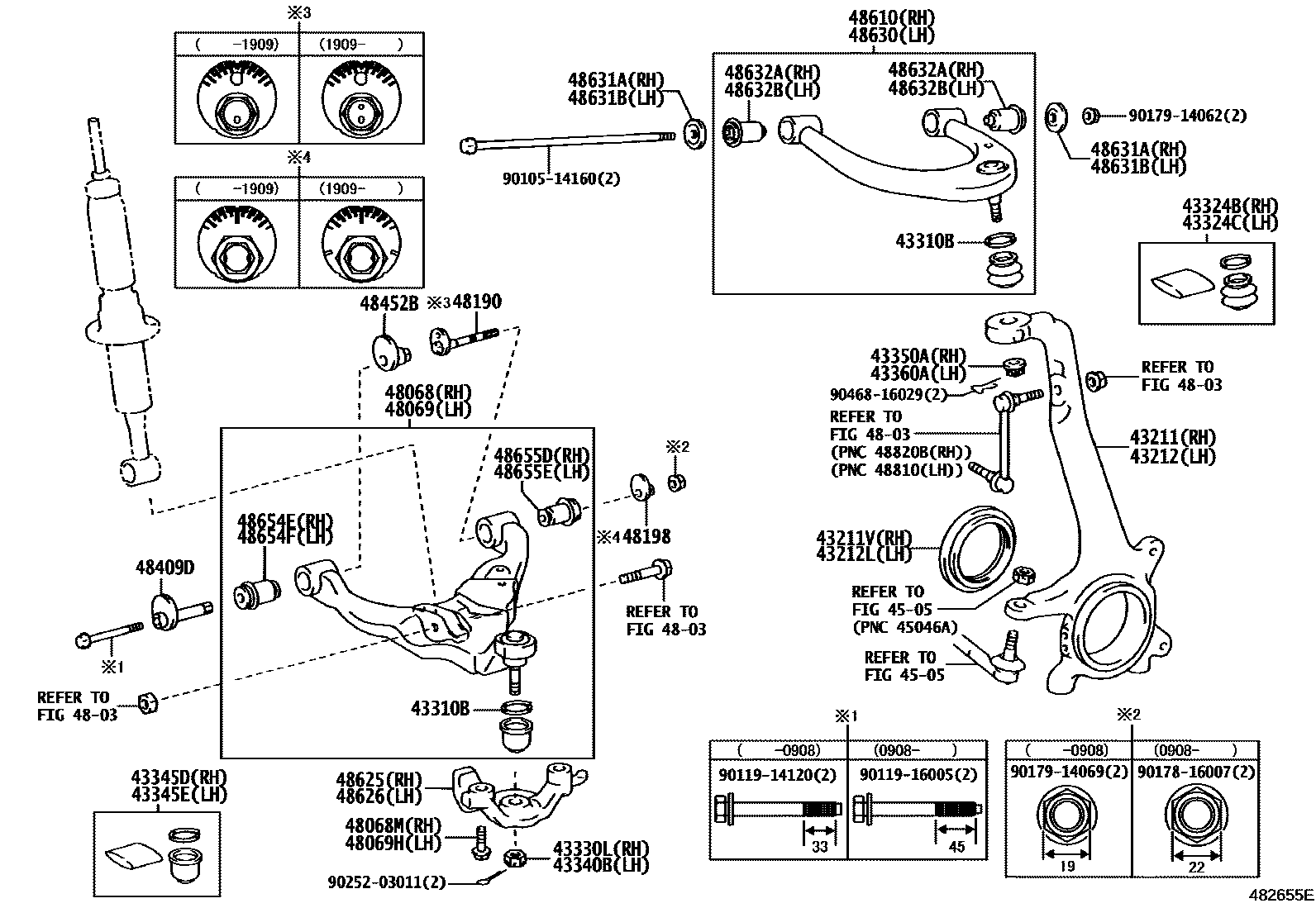

FRONT AXLE ARM & STEERING KNUCKLE
43211VSEAL, OIL (FOR STEERING KNUCKLE RH)
43212LSEAL, OIL (FOR STEERING KNUCKLE LH)
43310BRING, SET (FOR DUST COVER)
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43345DCOVER, LOWER BALL JOINT DUST, RH
43345ECOVER, LOWER BALL JOINT DUST, LH
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
4505
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48190CAM ASSY, CAMBER ADJUST
48198CAM, CAMBER ADJUST, NO.2
48409DCAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST
48452BPLATE, FRONT SUSPENSION TOE ADJUST, NO.2
48625ATTACHMENT, FRONT LOWER BALL JOINT, RH
48626ATTACHMENT, FRONT LOWER BALL JOINT, LH
48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)
48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
48654EBUSH, FRONT LOWER ARM, NO.1 RH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
9010514160
main90105-14160
9011914120
main90119-14120
9011916005
main90119-16005
9017816007
main90178-16007
9017914062
main90179-14062
9017914069
main90179-14069
9025203011
main90252-03011
9046816029
main90468-16029
43 parts on this diagram · 1 diagram in section
