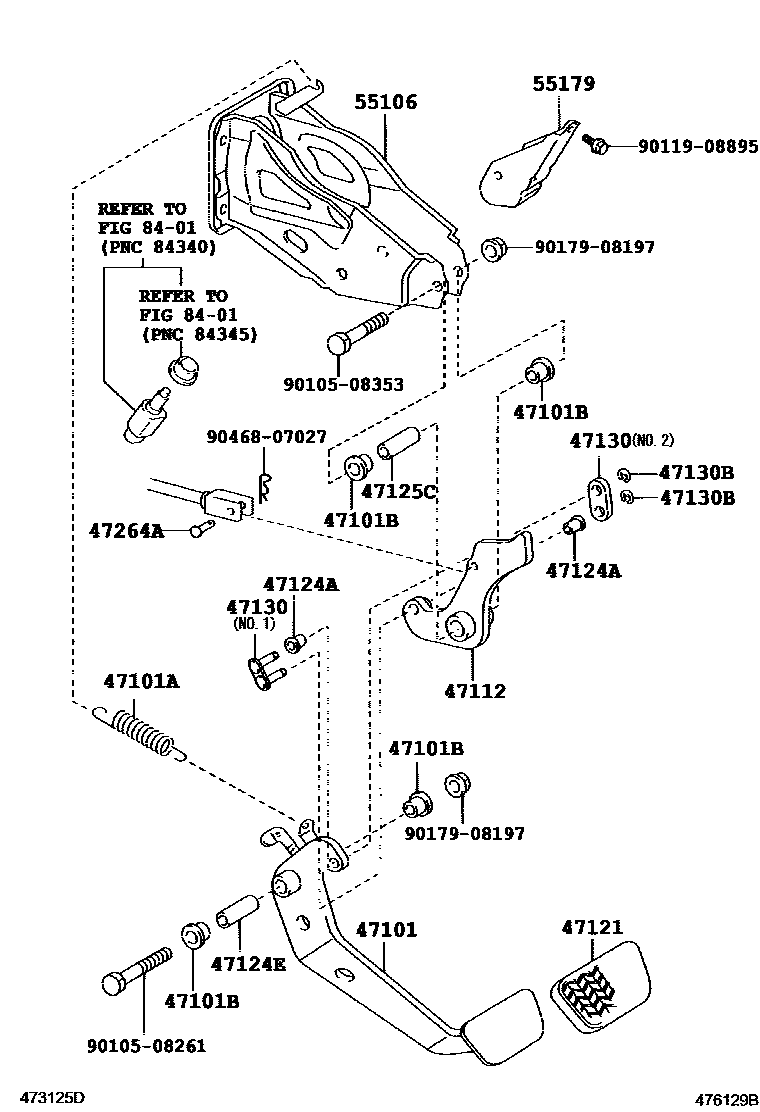

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-35420iGSJ15..ATM200707-201001

main47101-35430iGSJ15..MTM200707-201001

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20033iGSJ15200707-201011

47101BBUSH(FOR BRAKE PEDAL)

main90386-14015×4iGSJ15200707-201001

47112LEVER, BRAKE PEDAL

main47112-35040iGSJ15200707-201001

47121PAD, BRAKE PEDAL

main31321-52010iGSJ15..MTM201011-201511

main31321-52020iGSJ15..MTM201512-201712

main47121-50020iGSJ15..ATM200707-201011

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-34010×2iGSJ15200707-201001

47124ECOLLAR, BRAKE PEDAL SHAFT, NO.2

main90387-08160iGSJ15200707-201001

47125CCOLLAR(FOR BRAKE PEDAL BRACKET)

main47144-60020iGSJ15200707-201001

47130LINK ASSY, BRAKE PEDAL

main4710A-28010iGSJ15200707-201001

NO.1

main47130-60021iGSJ15200707-201001

NO.2

47130BRING E, BRAKE PEDAL LINK PIN

main96160-00400×2iGSJ15200707-201001

47264APIN(FOR PUSH ROD)

main90240-06023iGSJ15200707-200907

main90240-06027iGSJ15200908-201011

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-35170iGSJ15200707-201001

55179REINFORCEMENT, BRAKE PEDAL SUPPORT

main55179-35050iGSJ15200707-201001

8401

9010508261

main90105-08261

9010508353

main90105-08353

9011908895

main90119-08895

9017908197

main90179-08197

9046807027

main90468-07027

19 parts on this diagram · 2 diagrams in section
