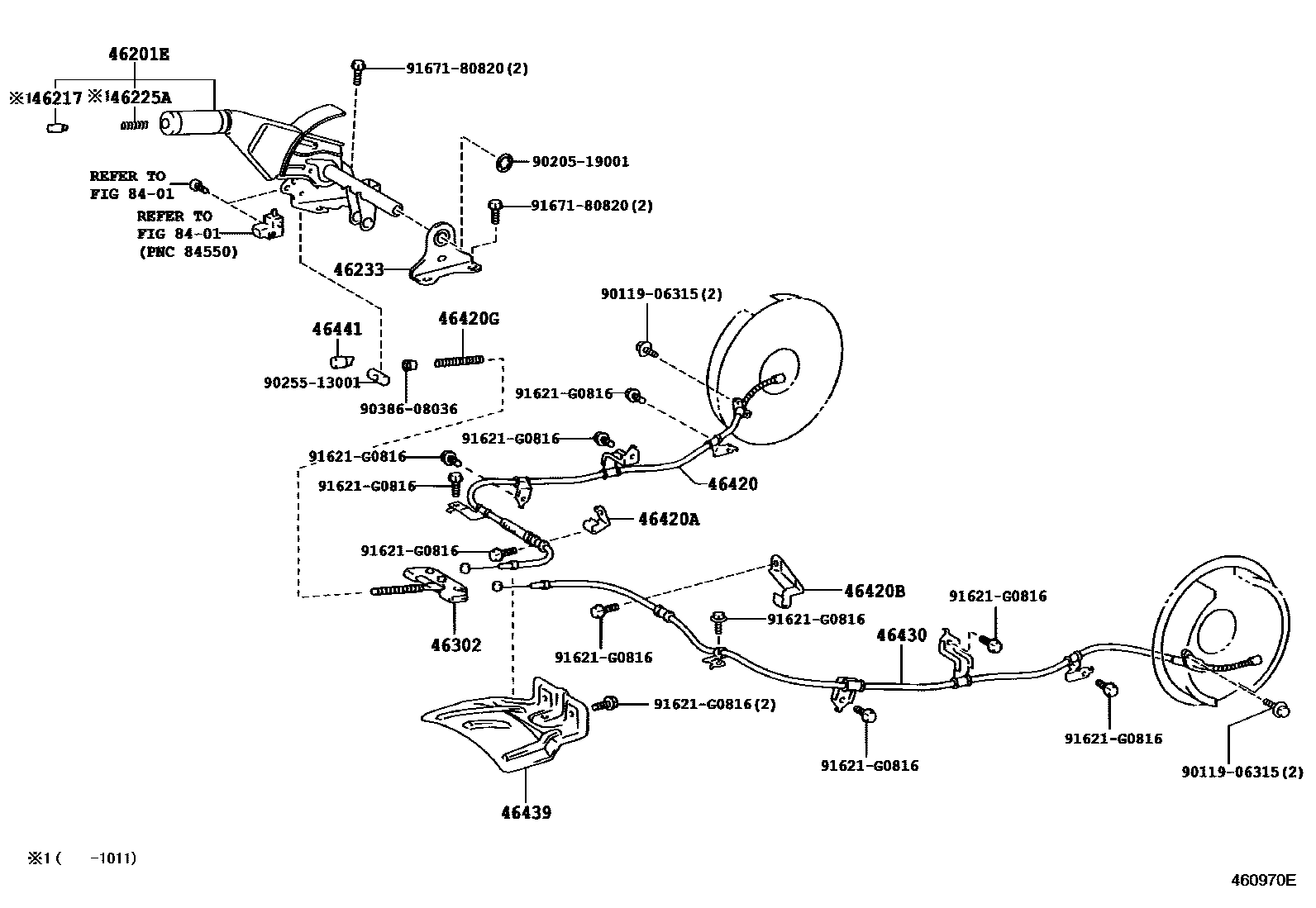

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-35031-B0iGSJ15..LHD201011

DK.GRAY,TRIM1#

main46201-35050-B0iGSJ15..RHD201011

DK.GRAY,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-17010-B5iGSJ15200707-201011

DK.GRAY,TRIM1#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90504-12005iGSJ15200707-201011

46233SUPPORT, PARKING BRAKE CENTER

main46233-60020iGSJ15200707-200907

main46233-60040iGSJ15200908-201011

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-60010iGSJ15200707-201011

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35770iGSJ15200707-201011

main46420-35772iGSJ15201011-201306

main46420-35773iGSJ15201307

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-35070iGSJ15200707-201011

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-35030iGSJ15200707-201011

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-10239iGSJ15200707-201011

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35560iGSJ15200707-201011

main46430-35562iGSJ15201011-201306

main46430-35563iGSJ15201307

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-35060iGSJ15200707-201011

46441NUT, WIRE ADJUSTING, NO.1

main46441-60010iGSJ15200707-201011

8401

9011906315

main90119-06315

9020519001

main90205-19001

9025513001

main90255-13001

9038608036

main90386-08036

91621G0816

main91621-G0816

9167180820

main91671-80820

19 parts on this diagram · 2 diagrams in section
