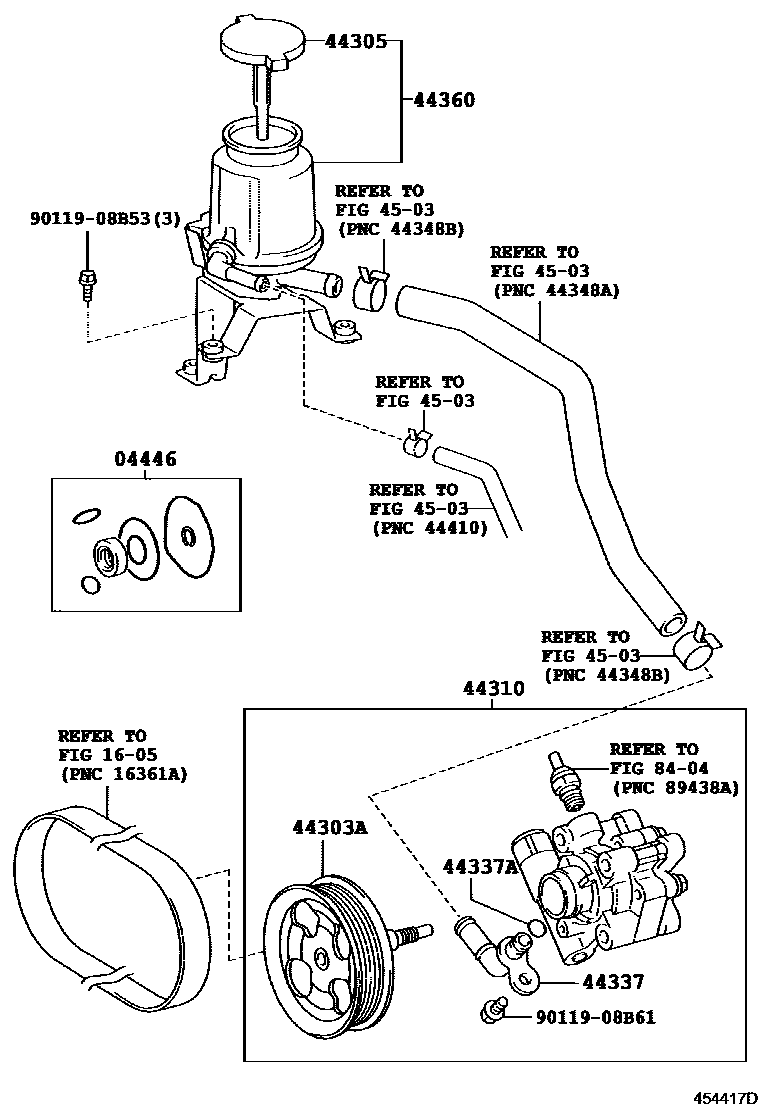

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iGSJ15200707-200908

main04446-35080iGSJ15200908-201011

1605

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iGSJ15200707-200908

main44303-60020iGSJ15200908-201712

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iGSJ15200707-200801

sub44305-28060

main44305-28060iGSJ15200802-201207

sub44305-28061

main44305-28061iGSJ15..MTM..GEN201208-201712

main44305-32040iGSJ15..MTM..GCC201208-201712

44310PUMP ASSY, VANE

main44310-35660iGSJ15..CHI,GEN200707-200908

main44310-35720iGSJ15..GCC200707-200908

main44310-35750iGSJ15..ATM..(ARL,CHI,GEN,SA)200908-201712

main44310-35760iGSJ15..GCC200908-201712

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iGSJ15200707-200908

main44337-60230iGSJ15200908-201712

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iGSJ15200707-200908

main90301-15025iGSJ15..ATM200908-201712

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-35170iGSJ15200707-200908

main44360-35200iGSJ15..ATM..GCC201208-201712

main44360-60320iGSJ15200908-201207

sub44360-60321

main44360-60321iGSJ15..ATM..(ARL,CHI,GEN,SA)201208-201712

4503

8404

9011908B53

main90119-08B53

9011908B61

main90119-08B61

12 parts on this diagram · 2 diagrams in section
