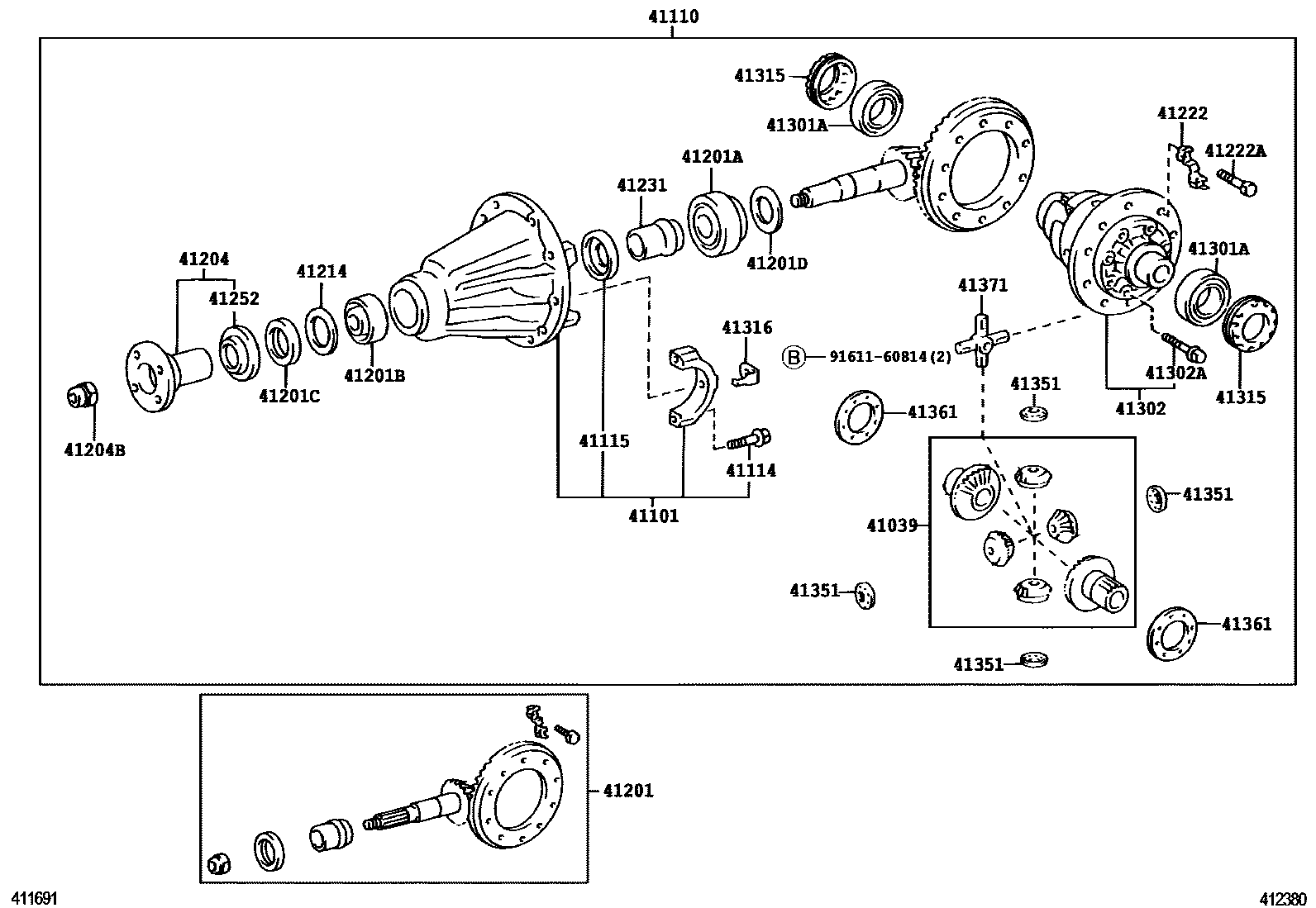

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
DIFFERENTIAL LOCK-WITH
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
DIFFERENTIAL LOCK-WITH
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:11=3.727
*FGR=43:11=3.909
*FGR=41:11=3.727,DIFFERENTIAL LOCK-WITH
*FGR=41:11=3.727
*FGR=43:11=3.909
*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITH
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41115RING, DIFFERENTIAL OIL STORAGE
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:11=3.727,DIFFERENTIAL LOCK-WITH
*FGR=43:11=3.909
*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITH
*FGR=41:11=3.727
*FGR=41:11=3.727
*FGR=43:11=3.909
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
T=1.85
T=1.86
T=1.87
T=1.88
T=1.89
T=1.90
T=1.91
T=1.92
T=1.93
T=1.94
T=1.95
T=1.96
T=1.97
T=1.98
T=1.99
T=2.00
T=2.01
T=2.02
T=2.03
T=2.04
T=2.05
T=2.06
T=2.07
T=2.08
T=2.09
T=2.10
T=2.11
T=2.12
T=2.13
T=2.14
T=2.15
T=2.16
T=2.17
T=2.18
T=2.19
T=2.20
T=2.21
T=2.22
T=2.23
T=2.24
T=2.25
T=2.26
T=2.27
T=2.28
T=2.29
T=2.30
T=2.31
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=39.5
OD=43
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
DIFFERENTIAL LOCK-WITH
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
DIFFERENTIAL LOCK-WITH
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
RH
DIFFERENTIAL LOCK-WITH,RH
DIFFERENTIAL LOCK-WITH,LH
LH
41302CASE SUB-ASSY, REAR DIFFERENTIAL
sub41302-26010
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
sub90105-10570
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
DIFFERENTIAL LOCK-WITH,RH
RH
LH
DIFFERENTIAL LOCK-WITH,LH
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
DIFFERENTIAL LOCK-WITH
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.9,RH,ID=46
T=0.9
T=0.9,DIFFERENTIAL LOCK-WITH,RH,ID=46
T=0.9,RH & LH,ID=54
T=1.0
T=1.0,DIFFERENTIAL LOCK-WITH,RH,ID=46
T=1.0,RH,ID=46
T=1.0,RH & LH,ID=54
T=1.1,DIFFERENTIAL LOCK-WITH,RH,ID=46
T=1.1
T=1.1,RH & LH,ID=54
T=1.1,RH,ID=46
T=1.2,RH,ID=46
T=1.2,DIFFERENTIAL LOCK-WITH,RH,ID=46
T=1.2
T=1.2,RH & LH,ID=54
T=1.3,DIFFERENTIAL LOCK-WITH,RH,ID=46
T=1.3
T=1.3,RH & LH,ID=54
T=1.3,RH,ID=46
T=0.90,RH & LH,ID=54
T=0.90,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54
T=1.00,RH & LH,ID=54
T=1.00,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54
T=1.10,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54
T=1.10,RH & LH,ID=54
T=1.20,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54
T=1.20,RH & LH,ID=54
T=1.30,RH & LH,ID=54
T=1.30,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54
9161160814
main91611-60814
27 parts on this diagram · 5 diagrams in section
