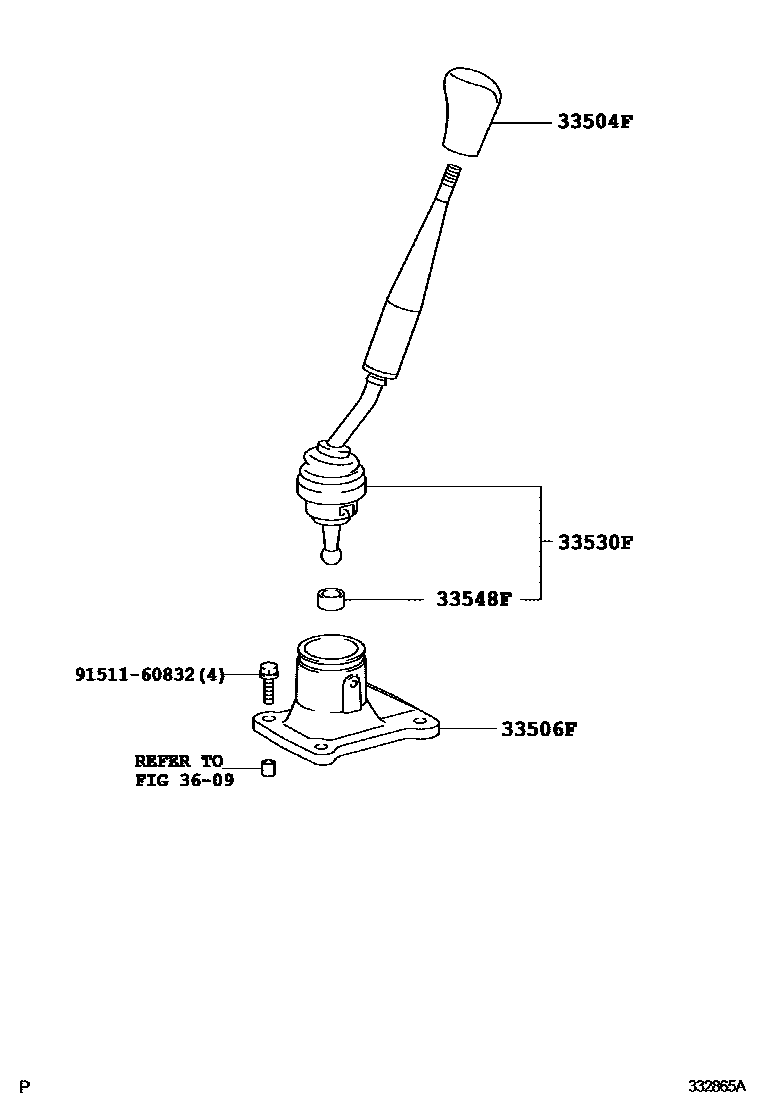

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-35080-B1iGSJ15..MTM200707-201712

DK.GRAY,TRIM1#

main33504-35090-B0iGSJ15..ATM200707-200711

DK.GRAY,TRIM1#

main33504-35091-B0iGSJ15..CHI200712-201102

DK.GRAY,TRIM1#

main33504-35093-B0iGSJ15..ARL201102-201308

DK.GRAY,TRIM1#

main33504-35101-B0iGSJ15..GCC200712-201102

IMAGE PACKAGE,DK.GRAY,TRIM1#

main33504-35101-B0iGSJ15..GCC200712-201011

FOR GCC,DK.GRAY,TRIM1#

main33504-35101-B0iGSJ15..CHI200712-201102

DK.GRAY,TRIM1#

main33504-35101-B0iGSJ15..CHI,SA201011-201102

COLOR PACKAGE(FOR GCC),DK.GRAY,TRIM1#

main33504-35103-B0iGSJ15..ARL201102

DK.GRAY,TRIM1#

main33504-35103-B0iGSJ15..CHI,SA201102

IMAGE PACKAGE,DK.GRAY,TRIM1#

main33504-35103-B0iGSJ15..CHI,SA201102

COLOR PACKAGE(FOR GCC),DK.GRAY,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-60120iGSJ15..MTM200707-201712

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-35651iGSJ15..MTM200707-201712

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-60040iGSJ15..MTM200707-201712

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

9151160832

main91511-60832

6 parts on this diagram · 4 diagrams in section
