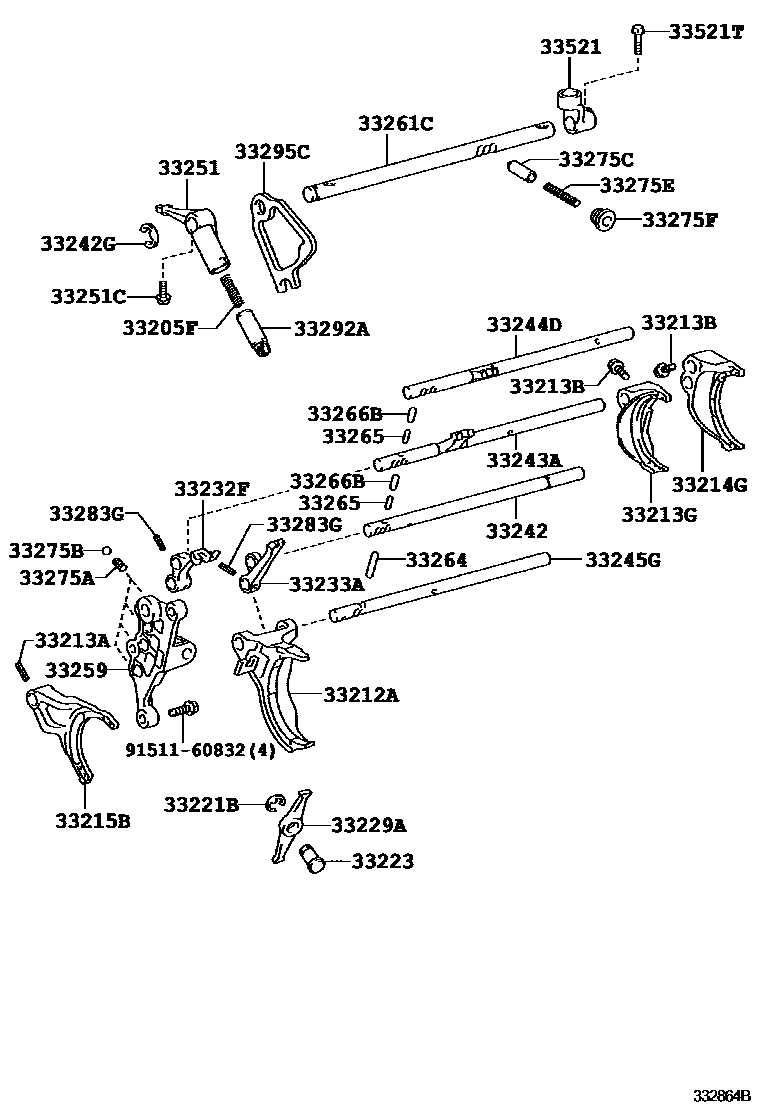

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221BRING, E(FOR REVERSE SHIFT ARM)
33223PIVOT, SHIFT ARM
33229AARM, RELEASE, NO.1
33233AHEAD, GEAR SHIFT, NO.2
33242SHAFT, GEAR SHIFT FORK, NO.1
33242GRING, E (FOR SHIFT FORK SHAFT)
33244DSHAFT, GEAR SHIFT FORK, NO.3
33251LEVER, SHIFT & SELECT
33251CBOLT, SET (FOR SHIFT & SELECT LEVER)
33259BRACKET, SHIFT INTERLOCK
33261CSHAFT, SHIFT & SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=24.6,OD=6
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4
33266BPIN, SHIFT INTERLOCK, NO.3
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=13.5
33275BBALL, SHAFT DETENT
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33292APIN, LOCK BALL
33295CCAM, SHIFT & SELECT
33521HOUSING, SHIFT LEVER
33521TBOLT (FOR SHIFT LEVER HOUSING)
9151160832
main91511-60832
35 parts on this diagram · 1 diagram in section
