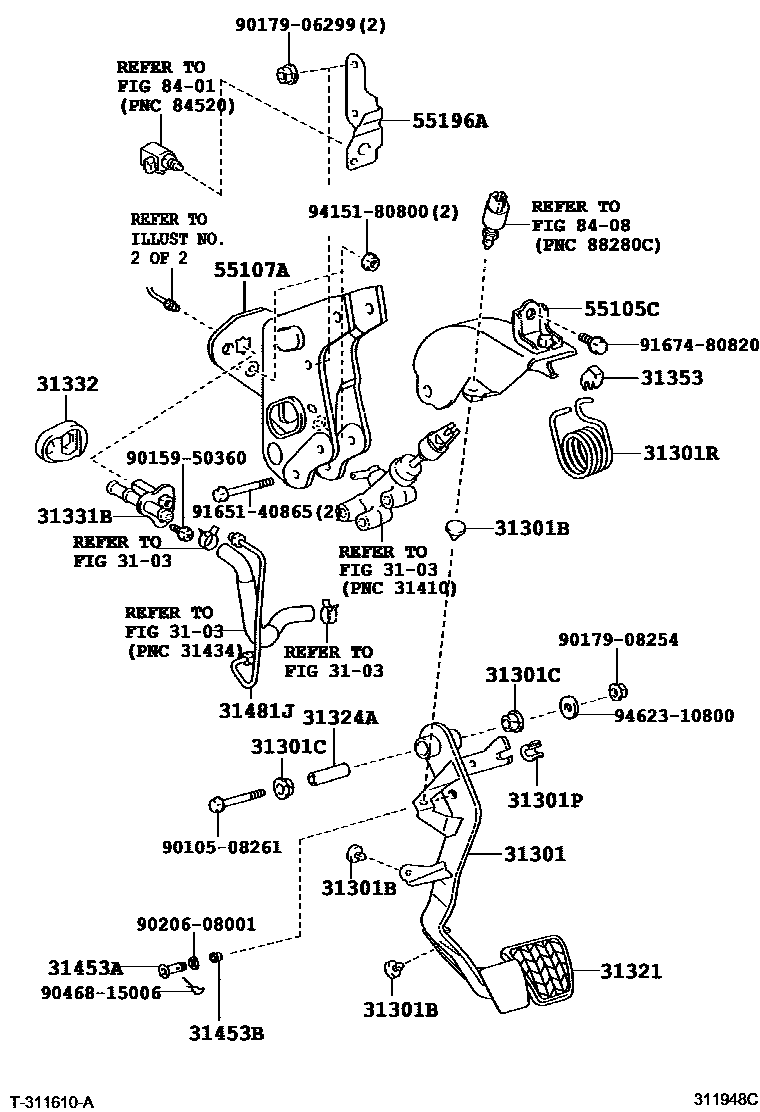

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

3103

31301PEDAL SUB-ASSY, CLUTCH

main31301-35270iGSJ15..MTM200707-201712

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iGSJ15..MTM200707-201712

31301CBUSH(FOR CLUTCH PEDAL)

main90386-14015iGSJ15..MTM200707-201712

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGSJ15..MTM200707-201712

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main31316-35010iGSJ15..MTM200707-201712

31321PAD, CLUTCH PEDAL

main31321-52010iGSJ15..MTM200707-201511

main31321-52020iGSJ15..MTM201512-201712

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-08160iGSJ15..MTM200707-201712

31331BWAY, CLUTCH PEDAL SUPPORT

main31331-60010iGSJ15..MTM200707-201712

31332GROMMET, CLUTCH PEDAL SUPPORT

main31332-60010iGSJ15..MTM200707-201712

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iGSJ15..MTM200707-201712

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-T0002iGSJ15..MTM200707-201712

L=31.9

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iGSJ15..MTM200707-201712

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-60B00iGSJ15..MTM200908-201712

main31481-6A090iGSJ15..MTM200707-200908

31481JTUBE, CLUTCH MASTER CYLINDER TO 2 WAY

main31481-6A050iGSJ15..MTM200707-201712

55105CSUPPORT, PEDAL BRACKET CLUTCH WIRE

main55105-60010iGSJ15..MTM200707-201712

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-60190iGSJ15..MTM200707-201712

55196ABRACKET, CLUTCH START SWITCH MOUNTING

main55196-35020iGSJ15..MTM200707-201712

8401

8408

9010508261

main90105-08261

9015950360

main90159-50360

9017906299

main90179-06299

9017908254

main90179-08254

9020608001

main90206-08001

9046815006

main90468-15006

9165140865

main91651-40865

9167480820

main91674-80820

9415180800

main94151-80800

9462310800

main94623-10800

30 parts on this diagram · 3 diagrams in section
