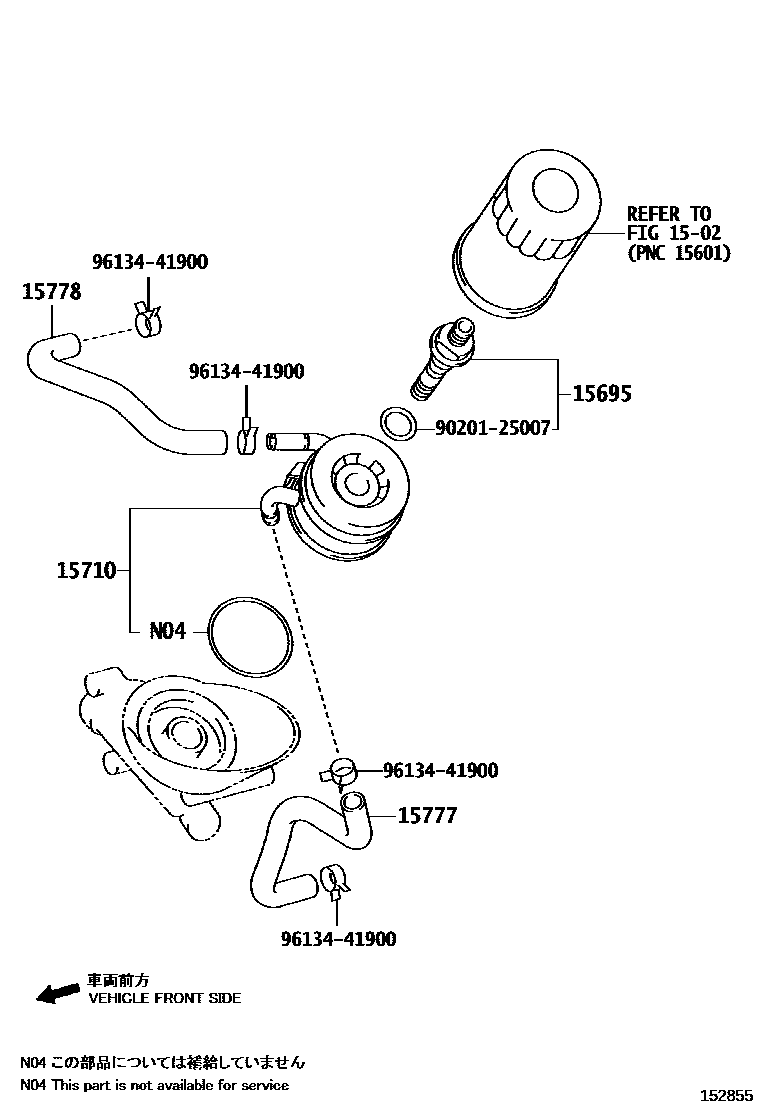

ENGINE OIL COOLER

0001 1 0002 1 0004 1 0008 1

1502

15695BOLT, OIL COOLER UNION

main15695-22010i1GRFE..GSJ15..GCC200707-200908

main15695-62010i1GRFE..GSJ15..SA200908-202109

15710COOLER ASSY, OIL

main15710-31010i1GRFE..GSJ15..GCC200707-200908

main15710-31040i1GRFE..GSJ15..MTM..GEN200908-202109

main15710-31100i1GRFE..GSJ15..SA202011-202109

main15710-31101i1GRFE..GSJ15..GCC,SA202109

15777HOSE, OIL COOLER

main15777-31010i1GRFE..GSJ15..GCC200707-200908

15778HOSE, OIL COOLER, NO.2

main15778-31010i1GRFE..GSJ15..GCC200707-200908

9020125007

main90201-25007

9613441900

main96134-41900

7 parts on this diagram · 4 diagrams in section
