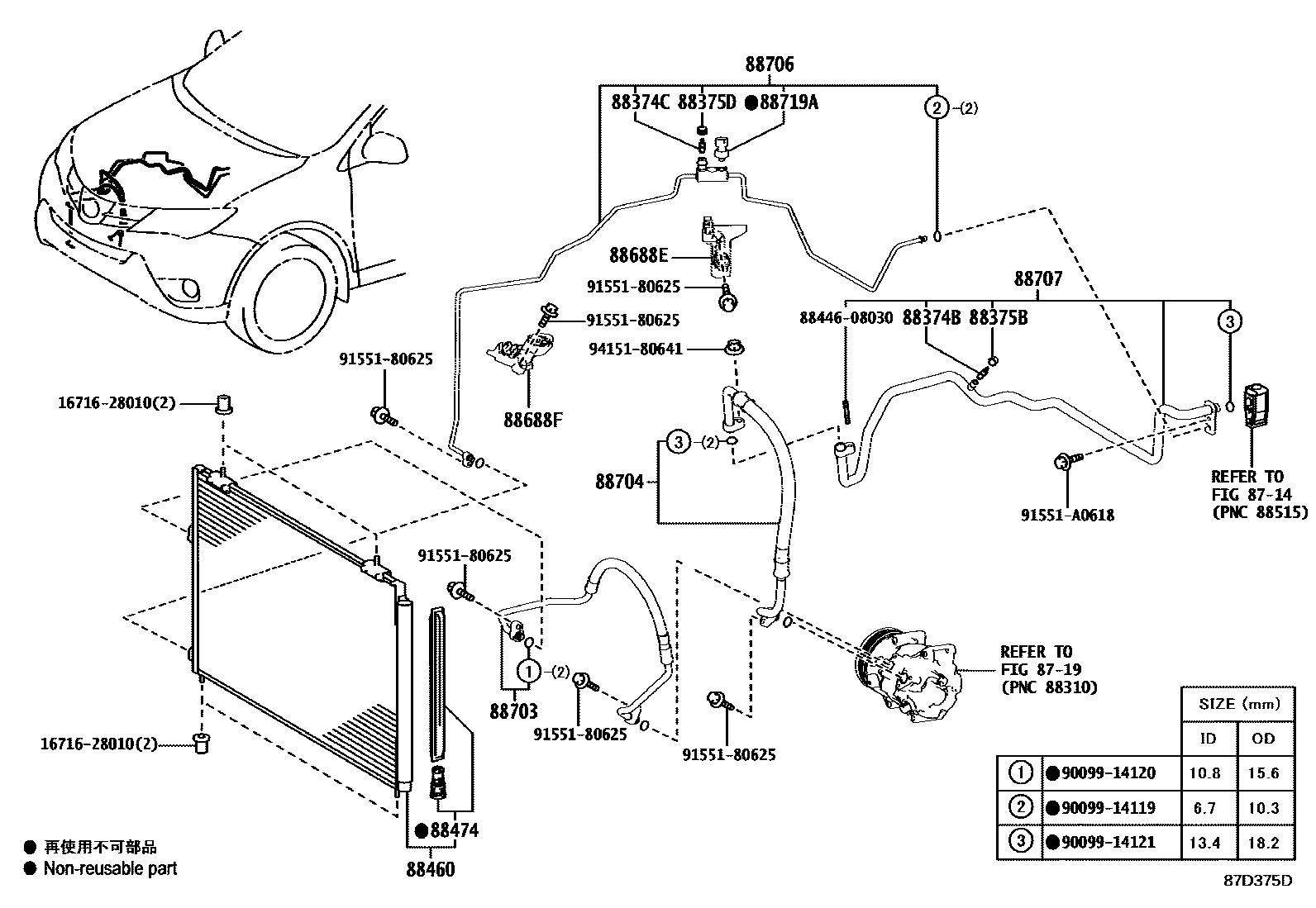

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

88374CVALVE, SERVICE, NO.2

main88374-30010iASA4#,ZSA4#201212-201510

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iASA4#,ZSA4#201212-201510

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iASA4#,ZSA4#201212-201510

88460CONDENSER ASSY, COOLER

main88460-42110iALA49..6FC;ALA49..6F..X;ASA42..G..GCC201510-201810

main88460-42150iAVA4#201510-201810

88474DRYER, COOLER

main88474-12030iASA4#,ZSA4#201212-201510

main88474-47020iAVA4#201510-201810

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-42510iASA4#,ZSA4#201212-201510

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-42520iASA4#,ZSA4#201212-201510

88703HOSE SUB-ASSY, DISCHARGE

main88703-42190iALA49201510-201810

main88703-42210iASA4#201212-201510

main88703-42220iZSA4#201212-201510

main88703-42240iAVA4#201510-201810

88704HOSE SUB-ASSY, SUCTION

main88704-42270iALA49201510-201810

main88704-42280iASA4#201510-201812

main88704-42290iZSA4#201510-201812

main88704-42710iAVA4#201510-201810

88706PIPE SUB-ASSY, LIQUID

main88706-42450iASA4#,ZSA4#..ARL,GEN,SA201510-201812

main88706-42470iALA49201510-201810

main88706-42480iASA4#..GCC201510-201812

main88706-42810iAVA4#201510-201810

88707PIPE SUB-ASSY, SUCTION

main88707-42120iASA4#,ZSA4#..ARL,GEN,SA201510-201812

main88707-42130iALA49201510-201810

main88707-42150iAVA4#201510-201810

main88710-42080iASA4#..GCC201510-201812

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iASA4#,ZSA4#201212-201510

1671628010CUSHION, FAN SHROUD

main16716-28010

8844608030BOLT, IDLE PULLEY

main88446-08030

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

9415180641

main94151-80641

23 parts on this diagram · 5 diagrams in section
