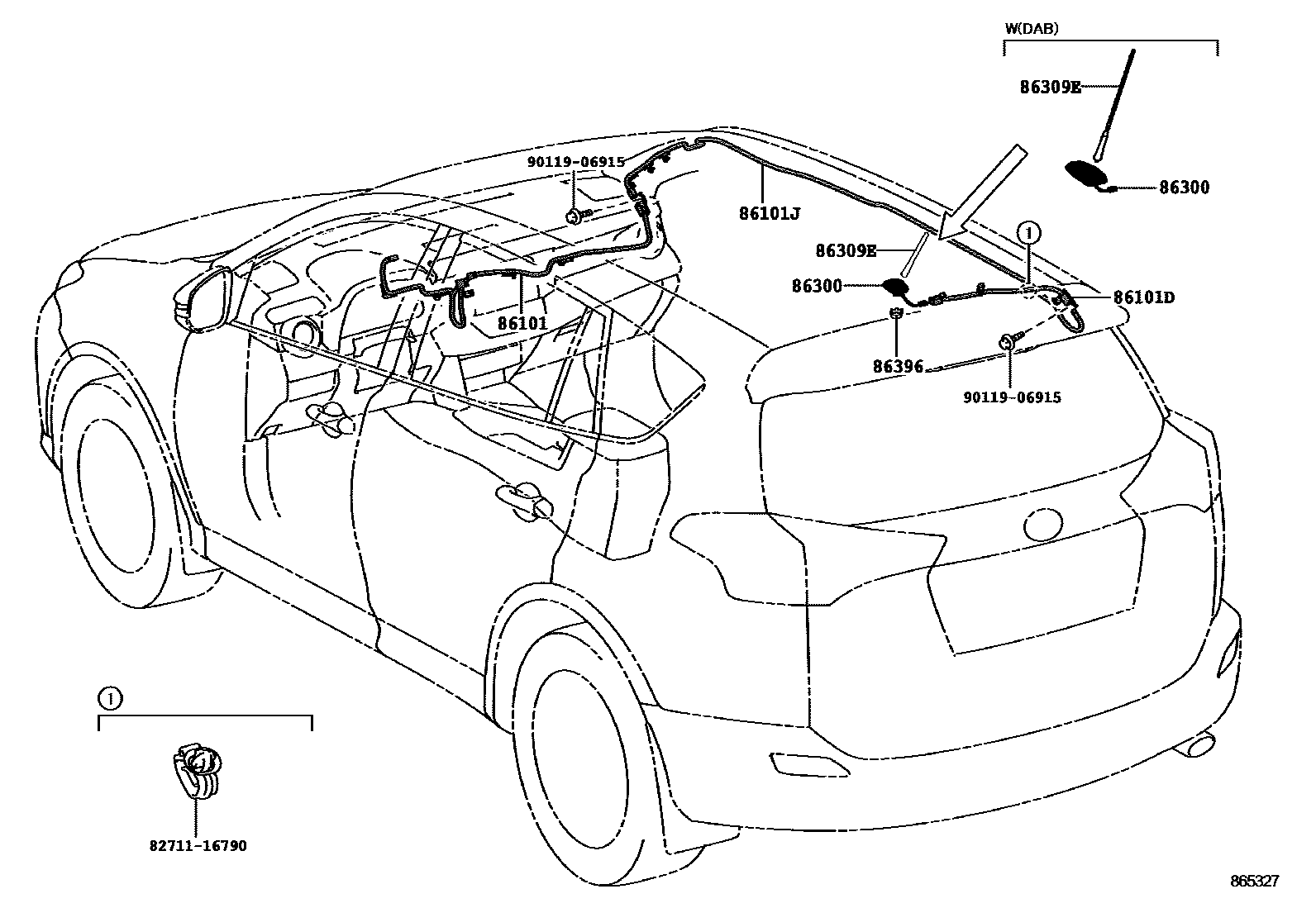

ANTENNA

0001 1 0002 1 0003 1 0004 1

86101CORD SUB-ASSY, ANTENNA

main86101-42500iASA4#,ZSA4#..LHD201212-201812

main86101-42540iASA44,ZSA42..ARL201212-201510

main86101-42880iALA49..RHD..6FC;ALA49..RHD..6F..X201510-201812

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-42660iASA4#,ZSA4#201212-201510

main86101-42790iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201812

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-42580iASA4#,ZSA4#201212-201812

86300ANTENNA ASSY, W/HOLDER

main86300-42210iASA4#,ZSA4#201212-201510

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-13030iASA4#,ZSA4#201212-201510

86396NUT, ANTENNA

main86396-47010iASA4#,ZSA4#201212-201510

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906915

main90119-06915

8 parts on this diagram · 4 diagrams in section
