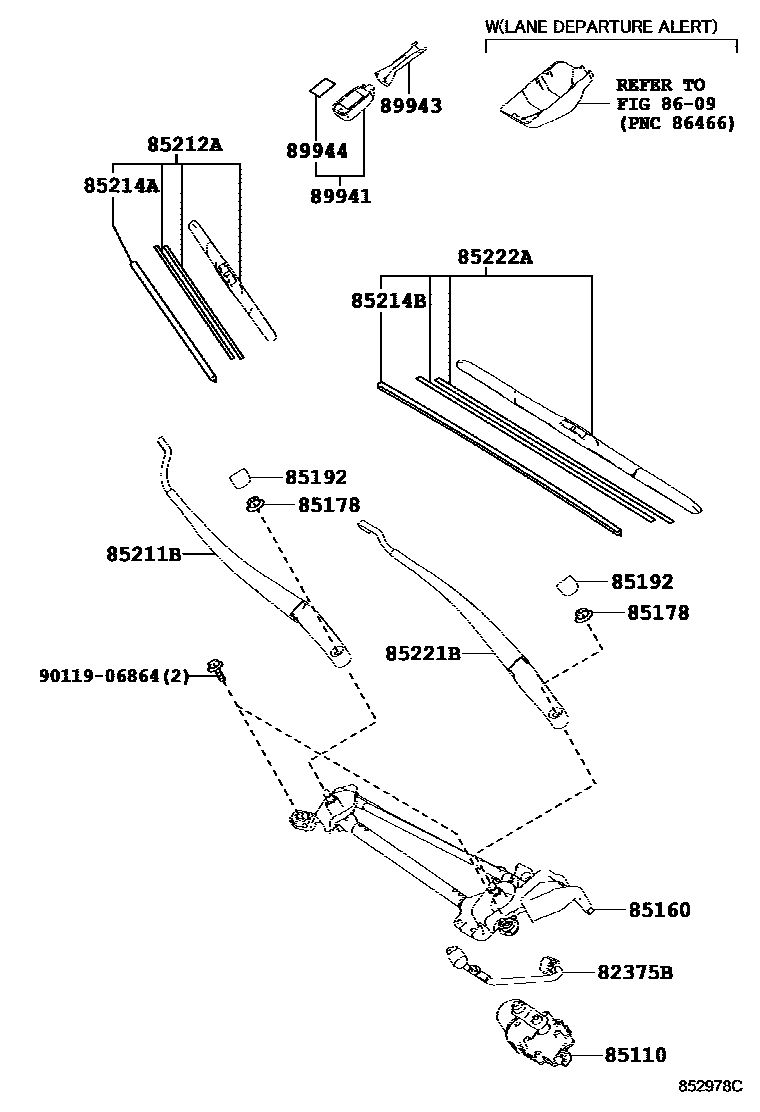

WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1

82375BWIRE, WIPER MOTOR

main82375-48020iASA4#,ZSA4#201212-201812

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42180iASA4#,ZSA4#..LHD201212-201402

sub85110-42181

main85110-42181iASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN201403-201812

main85110-42200iASA44,ZSA42..ARL201212-201402

sub85110-42201

main85110-42201iASA44,ZSA4#..RHD;ALA49..RHD..6F..(G,M)201403-201812

main85110-42190iASA44..G..GEN201212-201510

RUSSIA SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-42160iASA4#,ZSA4#..LHD201212-201812

main85150-42180iALA49..RHD..6FC;ALA49..RHD..6F..X201212-201812

main85150-42170iASA44..G..GEN201212-201510

RUSSIA SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iASA4#,ZSA4#201212-201812

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iASA4#,ZSA4#;ALA49..6F..(G,M)201212-201812

85211BARM, FRONT WIPER, RH

main85211-42140iALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN201212-201812

main85211-42160iASA44,ZSA4#..RHD;ALA49..RHD..6F..(G,M)201212-201812

85212ABLADE, FR WIPER, RH

main85212-42130iASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN201212-201812

main85212-52250iALA49..RHD..6FC;ALA49..RHD..6F..X201212-201812

85214ARUBBER, WIPER, RH

main85214-28090iASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN201212-201812

main85214-52110iALA49..RHD..6FC;ALA49..RHD..6F..X201309-201812

main85214-68020iASA44,ZSA42..ARL201212-201308

sub85214-52110

85214BRUBBER, WIPER, LH

main85214-28090iASA44,ZSA4#..RHD;ALA49..RHD..6F..(G,M)201212-201812

main85214-52110iASA4#,ZSA4#..LHD201309-201812

main85214-68020iASA4#,ZSA4#..LHD201212-201308

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-42140iALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN201212-201812

main85221-42160iASA44,ZSA4#..RHD;ALA49..RHD..6F..(G,M)201212-201812

main85221-42150iASA44..G..GEN201212-201311

RUSSIA SPEC

85222ABLADE, FR WIPER, LH

main85222-42120iASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN201212-201812

main85222-42130iASA44,ZSA4#..RHD;ALA49..RHD..6F..(G,M)201212-201812

8609

89941SENSOR, RAIN

main89941-52010iALA49..6FC..M..SA201510-201812

KEY PLATE-MASTER 2 FOR SMART

main89941-52010iASA4#..LHD..G..GEN201708-201812

INTERMITTENT WIPER-WITH(RAIN SENSOR&MIST)

main89941-52010iZSA4#..6F..GEN201212-201510

UKURAINE SPEC&AIR CONDITIONER-AUTO DUAL CONTROL

89943COVER, RAIN SENSOR

main89943-42020iZSA4#..6F..GEN201212-201510

UKURAINE SPEC&AIR CONDITIONER-AUTO DUAL CONTROL

main89943-42020iALA49..6FC..M..SA201510-201812

KEY PLATE-MASTER 2 FOR SMART

main89943-42020iASA4#..LHD..G..GEN201708-201812

INTERMITTENT WIPER-WITH(RAIN SENSOR&MIST)

main89943-33050iZSA4#..6F..GEN;ASA44,ZSA4#..G..GEN201212-201510

HEADLAMP-DISCHARGE & W(*AHB)

89944TAPE, RAIN SENSOR

main89944-42010iZSA4#..6F..GEN201212-201510

UKURAINE SPEC&AIR CONDITIONER-AUTO DUAL CONTROL

main89944-42010iALA49..6FC..M..SA201510-201812

KEY PLATE-MASTER 2 FOR SMART

main89944-42010iASA4#..LHD..G..GEN201708-201812

INTERMITTENT WIPER-WITH(RAIN SENSOR&MIST)

9011906864

main90119-06864

16 parts on this diagram · 4 diagrams in section
