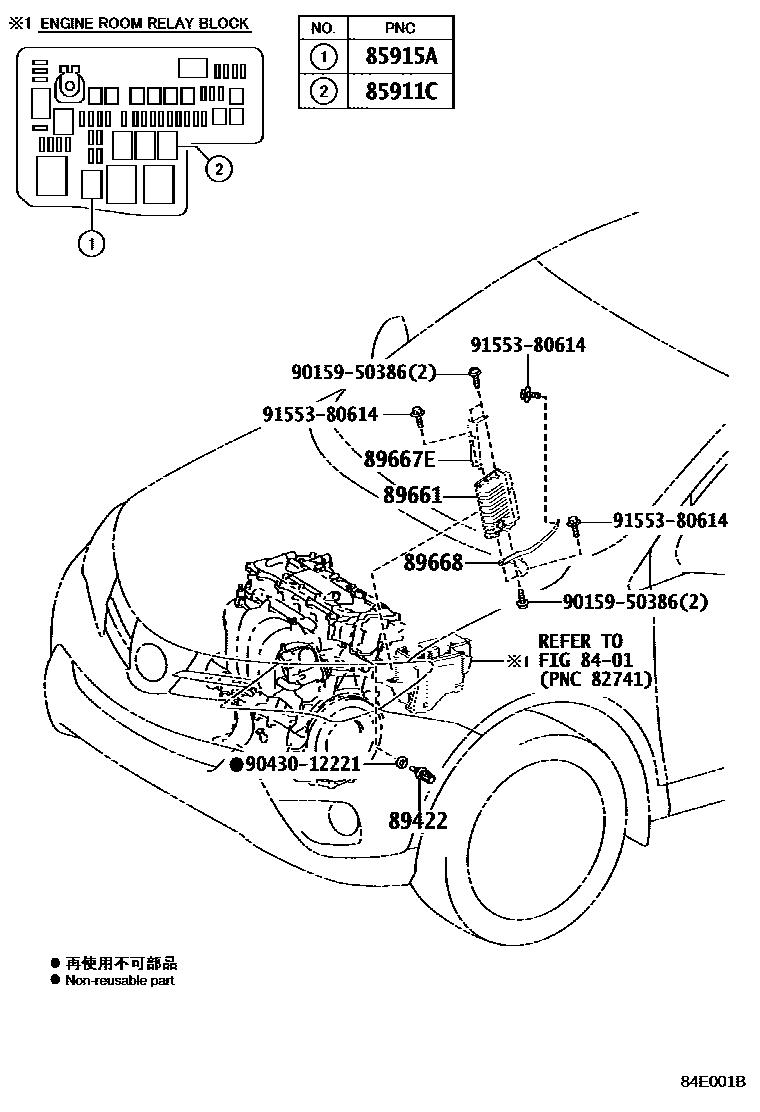

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

8401

85911CRELAY, EFI 2

main90987-02027iAVA4#201510-201810

85915ARELAY, MAIN

main90987-02027iASA4#,ZSA4#201510-201812

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iASA4#,ZSA4#201510-201812

89661COMPUTER, ENGINE CONTROL

main89661-42L70iAVA4#201510-201810

main89661-42R00supersedes 89661-42Q80iASA42..6F..GCC201212-201510

EXHAUST EMISSION CONTROL-EUROPE EURO4,L/OBD

main89661-42R10supersedes 89661-42Q90iASA44..6F..(ARL,GEN)201212-201510

EXHAUST EMISSION CONTROL-EUROPE EURO4,L/OBD

main89661-42R20supersedes 89661-42L10iASA42..6FC..GEN201212-201510

EXHAUST EMISSION CONTROL-EUROPE EURO4,L/OBD

main89661-42R30supersedes 89661-42P90iASA44..6FC..(ARL,GEN)201212-201510

EXHAUST EMISSION CONTROL-EUROPE EURO4,L/OBD

main89661-42S11iZSA44..B201510-201812

main89661-42S51iZSA42..B201510-201812

main89661-42V00iZSA42..6F201510-201812

main89661-42V20iZSA44..6F201510-201812

main89661-42V40iZSA42..A201510-201604

main89661-42V41iZSA42..A201605-201812

main89661-42V60iZSA44..A201510-201604

main89661-42V61iZSA44..A201605-201812

main89661-42W50iASA42..6F201510-201805

main89661-42W60iASA44..6F201510-201805

main89661-42W70iASA42..6FC201510-201812

main89661-42W80iASA44..6FC201510-201812

main89661-42K80iAVA4#..G201608-201810

TAIWAN SPEC

main89661-42L40iZSA44..G201212-201510

EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM

main89661-42L50iZSA42..G..GEN201410-201510

BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM

main89661-42R40iASA42..G..GEN201212-201510

BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM

main89661-42R50iASA44..6FC..X..GEN201212-201510

EXHAUST EMISSION CONTROL-BRAZIL BR2 W/ON-BOARD DIAGNOSTID SYSTEM

main89661-42R80supersedes 89661-42R70iZSA44..6F201404-201510

EXHAUST EMISSION CONTROL-EUROPE EURO5,W/O(OBD)

main89661-42S10supersedes 89661-42S00iZSA44..A201212-201510

EXHAUST EMISSION CONTROL-EUROPE EURO4,L/OBD

main89661-42S30supersedes 89661-42S20iZSA42..6F..GEN201404-201510

EXHAUST EMISSION CONTROL-EUROPE EURO5,W/O(OBD)

main89661-42S50supersedes 89661-42S40iZSA42..A201212-201510

EXHAUST EMISSION CONTROL-EUROPE EURO4,L/OBD

main89661-42U10iZSA42..6F..M..ARL201510-201708

AUSTRALIA SPEC

main89661-42V10supersedes 89661-42R70iZSA44..6F..X201510-201812

CHILE SPEC

main89661-42V30iZSA42..A..ARL201510-201604

TAIWAN SPEC

main89661-42V31iZSA42..G..ARL201708-201812

AUSTRALIA SPEC

main89661-42V70iZSA42..A..GEN201510-201605

BRAZIL SPEC

main89661-42V71iZSA42..A..GEN201608-201812

EXHAUST EMISSION CONTROL-WITH(OBD BRLEV BR2 GASOLINE)

main89661-42V80iZSA44..A..(G,M)201510-201605

BRAZIL SPEC

main89661-42V81iZSA44..A..(G,M)201608-201812

EXHAUST EMISSION CONTROL-WITH(OBD BRLEV BR2 GASOLINE)

main89661-42W10iASA42..G..GEN201510-201812

TAIWAN SPEC

main89661-42W20iASA44..LHD..G..GEN201806-201812

DENSO,TAIWAN SPEC

main89661-42W90iASA42..6FC..GEN201510-201608

BRAZIL SPEC

main89661-42X00iASA44..LHD..6FC..GEN201608-201805

EXHAUST EMISSION CONTROL-WITH(OBD BRLEV BR2 GASOLINE)

main89661-42Y20iAVA42201510-201810

MOROCCO SPEC

main89661-42Y40iZSA42..LHD..B201510-201812

ARGENTINA SPEC

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42060iAVA4#201510-201810

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42060iASA4#;ZSA4#..B201510-201812

main89668-48160iZSA4#..6F,A201510-201812

main89668-78020iAVA4#201510-201810

9015950386

main90159-50386

9043012221

main90430-12221

9155380614

main91553-80614

10 parts on this diagram · 5 diagrams in section
