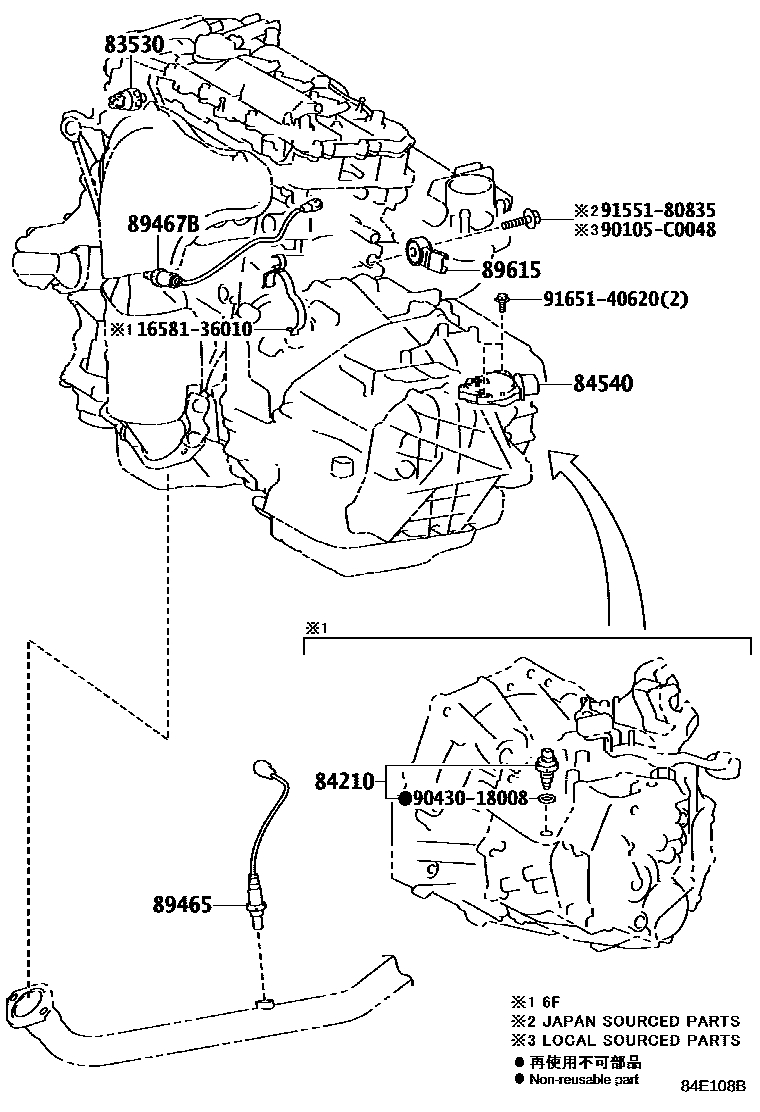

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK(1/2) 0009 1ENGINE ROOM RELAY BLOCK(2/2) 0010 1COWL 0011 1COWL 0012 1COWL 0013 1COWL 0014 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1INSTRUMENT PANEL 0018 1STEERING 0019 1SEAT 0020 1DOOR,ROOF,FLOOR & BACK DOOR 0021 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZSA4#201310-201402

YAZAKI

sub83530-12060

main83530-28020iZSA4#201310-201402

DENSO

main83530-28020iASA4#201212-201812

main83530-60010iALA49201510-201810

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iASA4#,ZSA4#..6F201212-201812

84540SWITCH ASSY, NEUTRAL START

main84540-28030iZSA4#..A201510-201812

main84540-33010iASA4#..6FC201212-201812

main84540-52070iZSA4#..A201212-201812

89465SENSOR, OXYGEN

main89465-42210iZSA4#201212-201812

main89465-42230iASA4#201212-201812

89467BSENSOR, AIR FUEL RATIO

main89467-06200iAVA4#201712-201810

MARK=89467-06200

main89467-21020iASA4#201212-201812

main89467-42130iALA49..DCRL201510-201810

main89467-42140iALA49..DCRE201510-201810

main89467-48270iAVA4#201712-201810

MARK=89467-48270

main89467-48270iAVA4#201510-201712

main89467-52060iZSA4#201212-201812

89615SENSOR, KNOCK CONTROL

main89615-20090iASA4#,ZSA4#201212-201812

1658136010CLAMP, HOSE(FOR WATER HOSE)

main16581-36010

90105C0048

main90105-C0048

9043018008

main90430-18008

9155180835

main91551-80835

9165140620

main91651-40620

11 parts on this diagram · 21 diagrams in section
