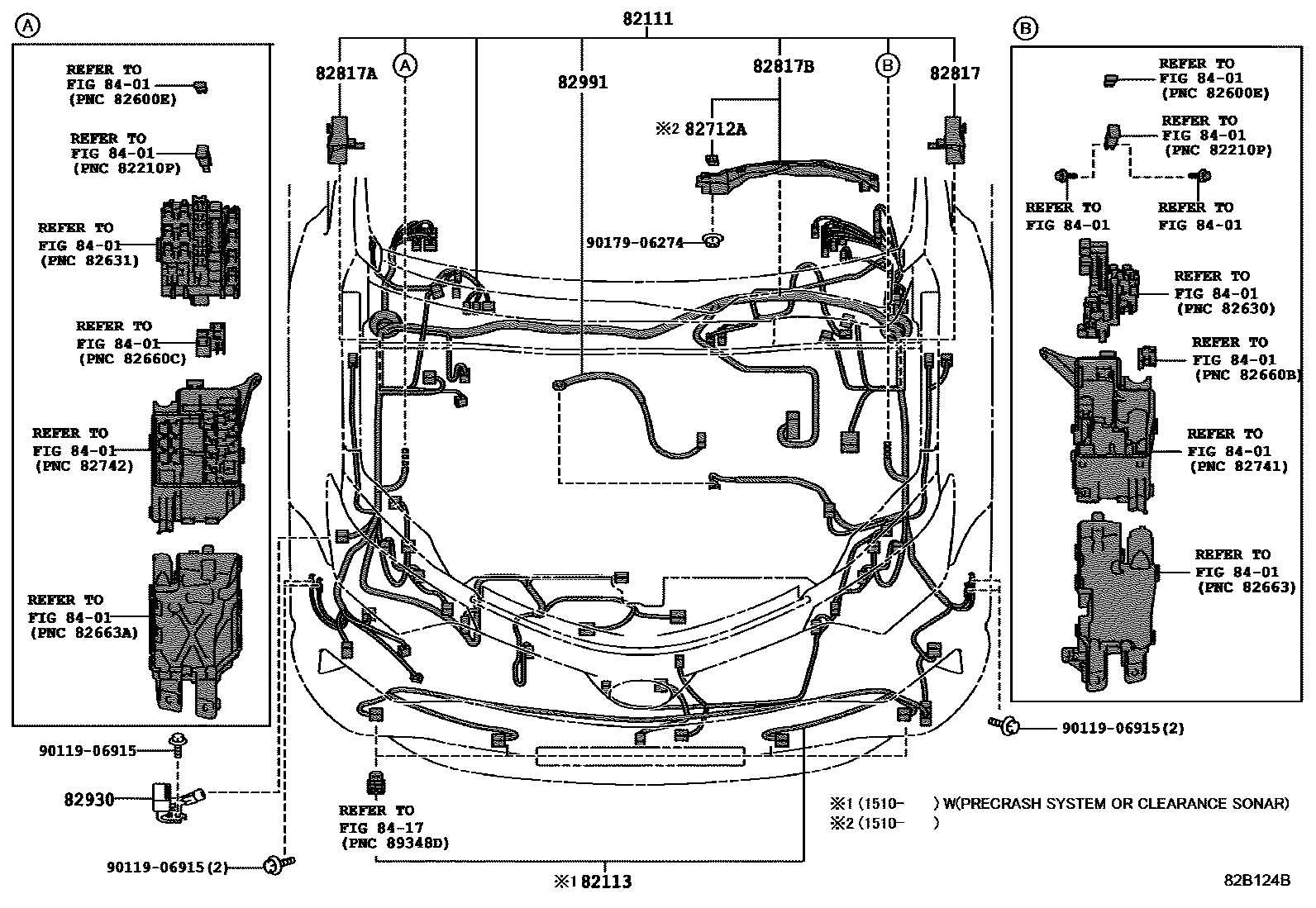

82111WIRE, ENGINE ROOM MAIN

main82111-42N90iASA44..ARL201212-201311

main82111-42N91iASA44..ARL201311-201504

main82111-42N92iASA44..ARL201504-201510

main82111-42P10iZSA42..ARL201212-201311

main82111-42P11iZSA42..ARL201311-201504

main82111-42P12iZSA42..ARL201504-201510

main82111-42P20iASA4#..LHD..X201212-201311

VSC-WITHOUT

main82111-42P21iASA4#..LHD..G201311-201504

VSC-WITHOUT

main82111-42P22iASA4#..LHD..X201504-201510

VSC-WITHOUT

main82111-42P30iASA4#..LHD..G201212-201311

main82111-42P31iASA4#..LHD..G201311-201504

main82111-42P32iASA4#..LHD..G201504-201510

main82111-42P60iZSA4#..X..GEN201212-201311

VSC-WITHOUT

main82111-42P61iZSA4#..X..GEN201311-201504

VSC-WITHOUT

main82111-42P62iZSA4#..G..GEN201504-201510

VSC-WITHOUT

main82111-42P80iZSA4#..G..GEN201212-201311

main82111-42P81iZSA4#..G..GEN201311-201504

main82111-42P82iZSA4#..G..GEN201504-201510

main82111-4A750iASA4#..LHD..M..GEN201510-201608

HEAD LAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH

main82111-4A750iASA4#..M..GCC201510-201608

HEAD LAMP-LED

main82111-4A751iASA4#..LHD..M..GEN201608-201708

HEAD LAMP-LED

main82111-4A752iASA4#..LHD..G..GEN201708-201812

HEAD LAMP-LED

main82111-4AA30iZSA4#..A..G..GEN201510-201608

HEAD LAMP-LED

main82111-4AA31iZSA4#..A..G..GEN201608-201708

HEAD LAMP-LED

main82111-4AA32iZSA4#..(6F,A)..M..GEN201708-201812

HEAD LAMP-LED

main82111-4AD80iALA49..M..GEN201510-201608

HEAD LAMP-LED

main82111-4AD81iALA49..G..GEN201608-201708

HEAD LAMP-LED

main82111-4AD82iALA49..M..GEN201708-201810

HEAD LAMP-LED

main82111-4AD90iASA44..RHD201510-201608

main82111-4AD91iASA44..RHD201608-201708

main82111-4AD92iASA44..RHD201708-201812

main82111-4AE10iZSA42..RHD..6F..M..GEN201510-201608

HEAD LAMP-LED

main82111-4AE11iZSA42..6F..G..GEN;ZSA42..(6F,A)..(ARL,SA)201608-201708

main82111-4AE12iZSA42..6F..G;ZSA42..(6F,A)..(ARL,SA)201708-201812

main82111-4AE50iALA49..RHD201510-201608

main82111-4AE51iALA49..RHD201608-201708

main82111-4AE52iALA49..RHD201708-201810

main82111-4AJ30iAVA4#201510-201608

main82111-4AJ31iAVA4#201608-201708

main82111-4AJ32iAVA4#201708-201810

main82111-4AM10iZSA4#..LHD..B..G201510-201608

HEAD LAMP-LED

main82111-4AM11iZSA4#..LHD..B..M201608-201708

HEAD LAMP-LED

main82111-4AM12iZSA4#..LHD..B..M201708-201812

HEAD LAMP-LED

main82111-4AM40iZSA42..B..SA;ZSA4#..RHD..B..G201510-201608

HEAD LAMP-LED

main82111-4AM41iZSA42..B..SA;ZSA4#..RHD..B..G201608-201708

HEAD LAMP-LED

main82111-4AM42iZSA4#..RHD..M..GEN201708-201812

HEAD LAMP-LED

main82111-4AM50iALA49..(M,X)..GEN201510-201608

main82111-4AM51iALA49..(M,X)..GEN201608-201708

main82111-4AM52iALA49..(M,X)..GEN201708-201810

main82111-4AM60iASA4#..LHD..(M,X)201510-201608

main82111-4AM61iASA4#..LHD..(M,X)201608-201708

main82111-4AM62iASA4#..LHD..(M,X)201708-201812

main82111-4AM90iZSA4#..LHD..(6F,A)..(M,X)201510-201608

main82111-4AM91iZSA4#..LHD..(6F,A)..(M,X)201608-201708

main82111-4AM92iZSA4#..LHD..(6F,A)..(M,X)201708-201812

main82111-4AN00iZSA4#..LHD..B..(M,X)201510-201608

main82111-4AN01iZSA4#..LHD..B..(M,X)201608-201708

main82111-4AN02iZSA4#..LHD..B..(M,X)201708-201812

main82111-4AN10iZSA42..RHD..6F..(M,X)..GEN201510-201608

main82111-4AN11iZSA42..RHD..6F..(M,X)..GEN201608-201708

main82111-4AN12iZSA42..RHD..6F..X..GEN201708-201812

main82111-4AN20iZSA4#..RHD..B..(M,X)..GEN201510-201608

main82111-4AN21iZSA4#..RHD..B..(M,X)..GEN201608-201708

main82111-4AN22iZSA4#..RHD..B..(M,X)..GEN201708-201812

main82111-4AN60iASA4#..M..GCC201608-201708

HEAD LAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH

main82111-4AN61iASA4#..G..GCC201708-201812

HEAD LAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH

82113WIRE, ENGINE ROOM, NO.3

main82113-42010iALA49,AVA4#..(6FC,A)..(G,M)..(GEN,SA)201510-201812

CLEARANCE & BACK SONAR-WITH(FRONT&REAR)

82712ASUPPORT, WIRING HARNESS

main82712-33190iAVA4#201510-201810

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-42750iZSA4#..LHD..B..M201708-201710

HEAD LAMP-LED

main82817-42750iASA4#,ZSA4#201212-201812

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-42760iASA4#,ZSA4#201212-201812

main82817-42760iZSA4#..LHD..B..G201708-201710

HEAD LAMP-LED

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-42460iZSA4#..LHD..B..G201212-201812

main82817-42460iZSA4#..LHD..B..G201708-201710

HEAD LAMP-LED

main82817-78010iAVA4#201510-201810

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-42010iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201812

82991WIRE, FUSIBLE LINK REPAIR

main82991-42040iASA4#201212-201812

main82991-42050iALA49201510-201810

main82991-42060iZSA4#201212-201812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17
