BATTERY & BATTERY CABLE

0001 1 0002 1 0003 112V BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY

28800BATTERY

main28800-21171i2ARFXE..AVA4#201510-201810

S46B24R

sub28800-21172

main28800-26141i2AD#..ALA49201608-201810

115D31L

sub28800-26142

main28800-26902i2AD#..ALA49201510-201608

115D31L

main28800-42041i2ARFE,3ZRFE..ASA4#,ZSA4#201212-201510

55D23L,YUASA

sub28800-31260

main28800-42062i2ARFE,3ZRFE..ASA4#,ZSA4#201212-201812

55D23L,FURUKAWA

sub28800-42063

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ARFE..ASA4#201212-201812

main90982-05063i2ARFXE..AVA4#201510-201810

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2ADFTV..ALA49..6F..(G,M)201609-201812

main82821-42070i3ZRFE..ZSA4#201212-201812

main82821-48020i2ARFE..ASA4#201212-201610

main82821-53090i2ARFXE..AVA4#201510-201810

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i3ZRFE..ZSA4#201510-201812

main90982-06070i2AD#..ALA49201212-201810

28897PLATE, BATTERY CAUTION

main28897-38030i2ARFE..ASA4#..GCC201608-201812

28898PLATE, BATTERY

main28898-46020

28899INSULATOR, BATTERY

main28899-26060i2AD#..ALA49201510-201810

main28899-36020i2ARFE..ASA4#201212-201812

main28899-36090i2ARFXE..AVA4#201510-201810

8202

8401

9415180801

main94151-80801

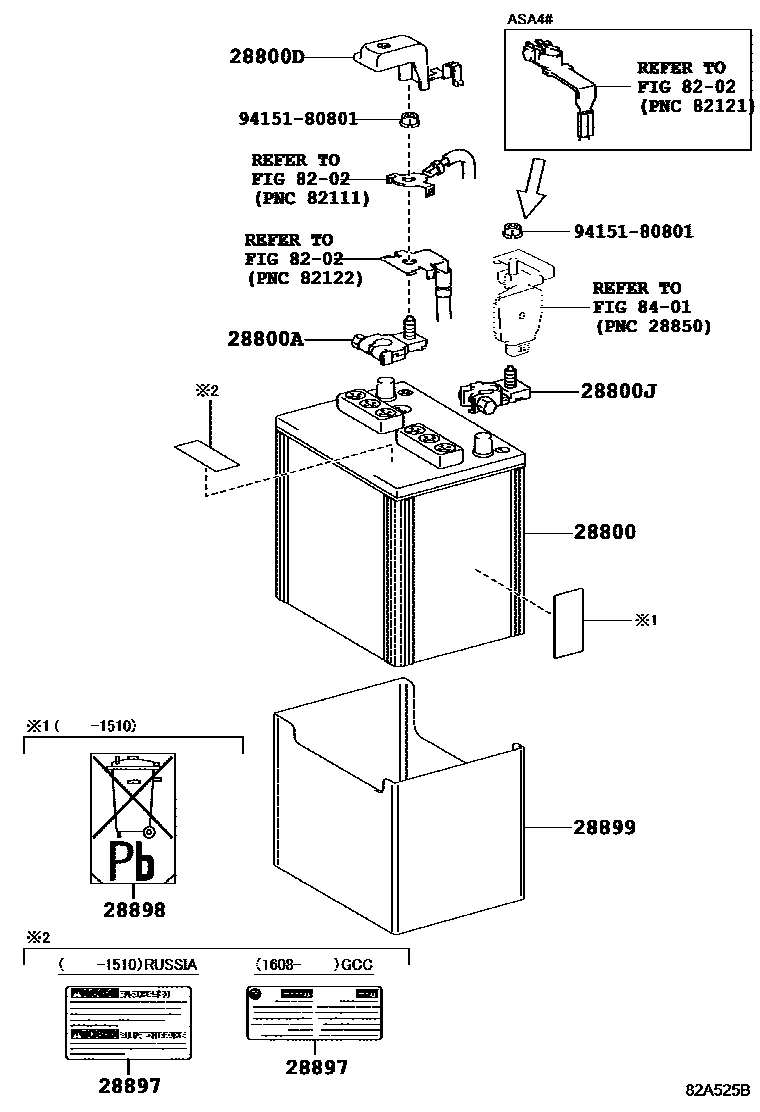

10 parts on this diagram · 6 diagrams in section
