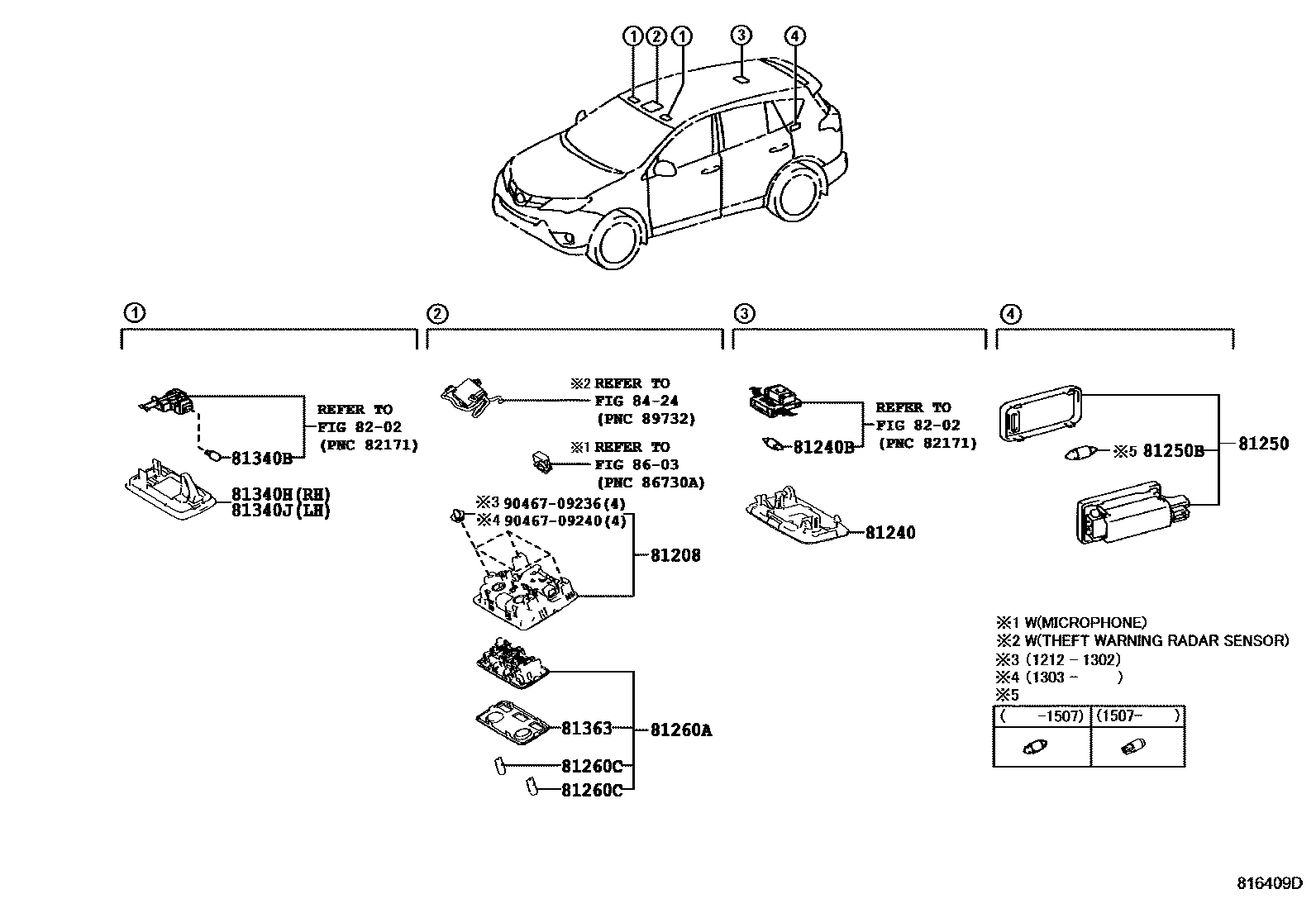

INTERIOR LAMP
81208LAMP SUB-ASSY, MAP
AUDIO-CD&USB&*BT&4SPEAKER(VFD),LT.GRAY,TRIM2#,4#
MOON ROOF-WITH&AUDIO-CD&USB&6SPEAKER(VFD),LT.GRAY,TRIM1#,2#,3#,4#
MOON ROOF-WITH,LT.GRAY,TRIM1#,2#,3#,4#
L3 PACKAGE,LT.GRAY,TRIM1#,2#,3#,4#
AUDIO-6SPEAKER(AUDIO LESS),LT.GRAY,TRIM1#,2#,3#,4#
sub81208-42171
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & DOUBLE-LOCK & ALARM),LT.GRAY,TRIM1#,2#,3#,4#
sub81208-42191
MOON ROOF-WITH&AUDIO-6SPEAKER(AUDIO LESS),LT.GRAY,TRIM1#,2#,4#
sub81208-42201
MOON ROOF-WITH,LT.GRAY,TRIM1#,2#,4#
sub81208-42211
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & DOUBLE-LOCK & ALARM)&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#,4#
sub81208-42221
81240LAMP ASSY, ROOM, NO.1
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,LT.GRAY,TRIM10,20,40
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,BLACK,TRIM1#,2#,4#
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,BLACK,TRIM1#,2#,4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
12V 5W
12V 5W
81260ALAMP ASSY, MAP
LT.GRAY,TRIM2#,3#,4#
81260CBULB(FOR MAP LAMP)
12V 5W
81340BBULB (FOR VANITY LAMP)
12V 8W
81340HLAMP ASSY, VANITY, RH
81340JLAMP ASSY, VANITY, LH
81363LENS, ROOM LAMP, OUTER
8202
8424
8603
9046709236
main90467-09236
9046709240
main90467-09240
16 parts on this diagram · 4 diagrams in section
