SEAT BELT

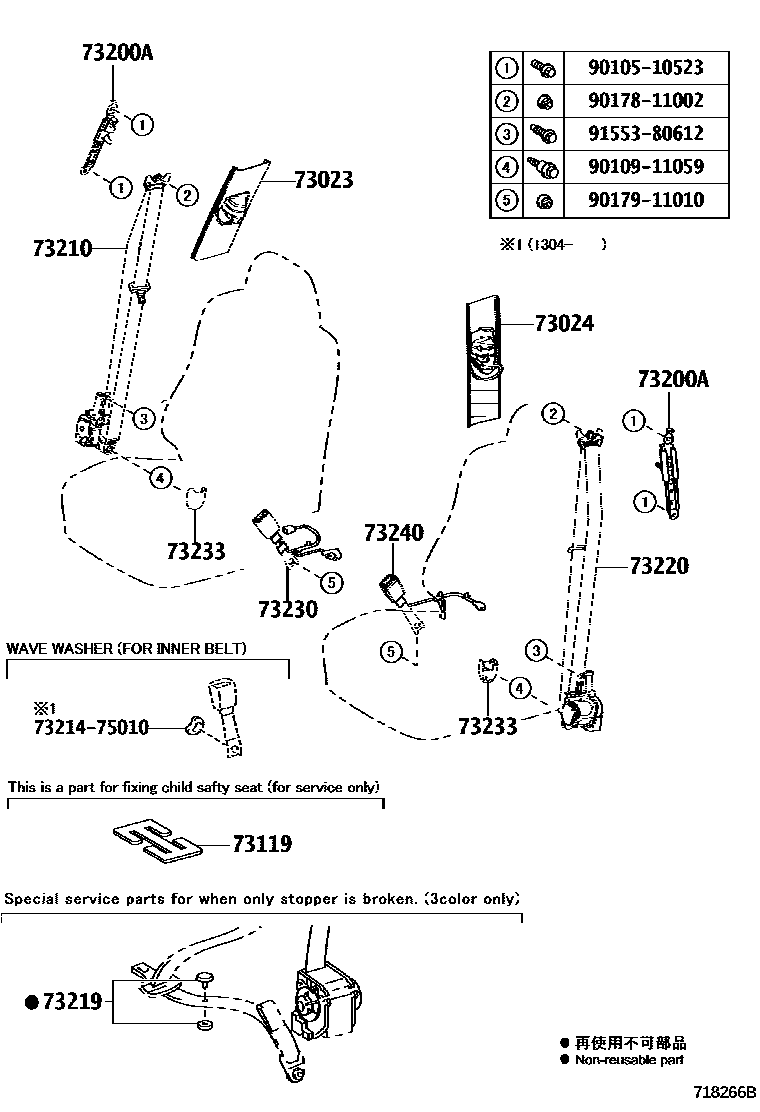

0001 1FRONT SEAT 0002 1REAR SEAT 0003 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33030-B1iALA49..6F..M..DCR;ASA4#,ZSA4#..M..(GCC,GEN,SA)201510-201812

LT.GRAY,TRIM1#,2#,4#

sub73023-58010

sub73023-33030

main73023-33030-B1iZSA4#..A..X..GEN201212-201510

LT.GRAY,TRIM2#,3#,4#

sub73023-58010

sub73023-33030

main73023-33030-C0iALA49..M..DCRL201510-201812

BLACK,TRIM10,20,40

sub73023-58010

sub73023-33030

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33030-B1iALA49..6F..M..DCR;ASA4#,ZSA4#..M..(GCC,GEN,SA)201510-201812

LT.GRAY,TRIM1#,2#,4#

sub73024-58010

sub73024-33030

main73024-33030-B1iASA4#,ZSA4#..G;ZSA4#..6F..GEN201212-201510

LT.GRAY,TRIM2#,3#,4#

sub73024-58010

sub73024-33030

main73024-33030-C0iALA49..M..DCRL201510-201812

BLACK,TRIM10,20,40

sub73024-58010

sub73024-33030

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iALA49..6F..X;ALA49,AVA4#..6FC,A201212-201812

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iASA4#,ZSA4#;ALA49..6F..(G,M)201508-201812

main73200-53010iASA4#,ZSA4#201212-201508

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-42350-C0iZSA4#..X..GEN201212-201304

BLACK,TRIM2#,3#,4#

sub73210-42351

main73210-42351-C0iASA42..G;ASA44,ZSA42..G..(ARL,GCC)201305-201510

BLACK,TRIM2#,4#

sub73210-42352

main73210-42351-C0iASA42..G;ASA44,ZSA42..G..(ARL,GCC)201305-201510

BLACK,TRIM2#,3#,4#

sub73210-42352

main73210-42352-C0iALA49,ASA4#,AVA4#,ZSA4#..M201510-201608

BLACK/LT.GRAY,TRIM1#,2#,3#,4#

sub73210-42410

main73210-42352-C0iALA49,ASA4#,AVA4#,ZSA4#..M201510-201608

BLACK/LT.GRAY,TRIM2#,4#

sub73210-42410

main73210-42410-C0iALA49,ASA4#,AVA4#,ZSA4#..M..(GCC,GEN,SA)201608-201801

BLACK/LT.GRAY,TRIM2#,4#

main73210-42410-C1iALA49,ASA44,ZSA42..M..ARL201608-201801

BLACK/BLACK,TRIM10,20,40

main73210-42410-C2iALA49,ASA4#,AVA4#,ZSA4#..M201801-201805

BLACK,TRIM2#,4#

main73210-47281-C7iALA49,ASA4#,AVA4#,ZSA4#..M201805-201812

BLACK,TRIM2#,4#

sub73210-47281

sub73210-47282

73219STOPPER, TONGUE PLATE

main73219-33010iASA4#,ZSA4#201212-201812

BLACK

main73219-33020iASA4#,ZSA4#;ALA49..6F..(G,M)201212-201812

GRAY

main73219-33030iALA49..6F..X;ALA49,AVA4#..6FC,A201212-201812

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-42310-C0iZSA4#..X..GEN201212-201304

BLACK,TRIM2#,4#

sub73220-42311

main73220-42310-C0iZSA4#..X..GEN201212-201304

BLACK,TRIM2#,3#,4#

sub73220-42311

main73220-42311-C0iASA42..G;ASA44,ZSA42..G..(ARL,GCC)201305-201510

BLACK,TRIM2#,4#

sub73220-42312

main73220-42311-C0iASA42..G;ASA44,ZSA42..G..(ARL,GCC)201305-201510

BLACK,TRIM2#,3#,4#

sub73220-42312

main73220-42312-C0iALA49,ASA4#,AVA4#,ZSA4#..M201510-201608

BLACK/LT.GRAY,TRIM2#,4#

main73220-42320-C0iALA49,ASA4#,AVA4#,ZSA4#..M..(GCC,GEN,SA)201608-201801

BLACK/LT.GRAY,TRIM2#,4#

main73220-42320-C1iALA49,ASA44,ZSA42..M..ARL201608-201801

BLACK/BLACK,TRIM10,20,40

main73220-42320-C2iALA49,ASA4#,AVA4#,ZSA4#..M201801-201805

BLACK,TRIM2#,4#

main73220-47221-C7iALA49,ASA4#,AVA4#,ZSA4#..M201805-201812

BLACK,TRIM2#,4#

sub73220-47221

sub73220-47222

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-42210-C0iASA44..RHD..M;ALA49,ZSA4#..RHD..(CVT,MTM)..M201212-201812

BLACK,TRIM2#,4#

main73230-42220-C0iALA49..6F..M..GEN;ASA4#,ZSA4#..LHD..M201212-201812

BLACK,TRIM2#,4#

main73230-42230-C0iALA49..RHD..6FC..G201510-201812

BLACK,TRIM1#,2#,3#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0iASA4#,ZSA4#..G;ZSA4#..6F..GEN201212-201510

BLACK,TRIM2#,3#,4#

sub73233-60020

sub73233-35010

main73233-60020-C0iASA4#,ZSA4#..G;ZSA4#..6F..GEN201212-201610

BLACK,TRIM2#,4#

sub73233-60020

sub73233-35010

main73233-60020-C1iALA49,ASA4#,AVA4#,ZSA4#..M201610-201812

BLACK,TRIM2#,4#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-42210-C0iALA49..X..GEN201212-201812

BLACK,TRIM2#,4#

main73230-42210-C0iZSA4#..6F..GEN;ASA4#,ZSA4#..LHD..G201212-201510

BLACK,TRIM2#,3#,4#

main73230-42220-C0iASA44..RHD..M;ALA49,ZSA4#..RHD..(CVT,MTM)..M201212-201812

BLACK,TRIM2#,4#

main73230-42230-C0iALA49,AVA4#..(6FC,A)..G..GEN201510-201812

BLACK,TRIM1#,2#,3#,4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

16 parts on this diagram · 3 diagrams in section
