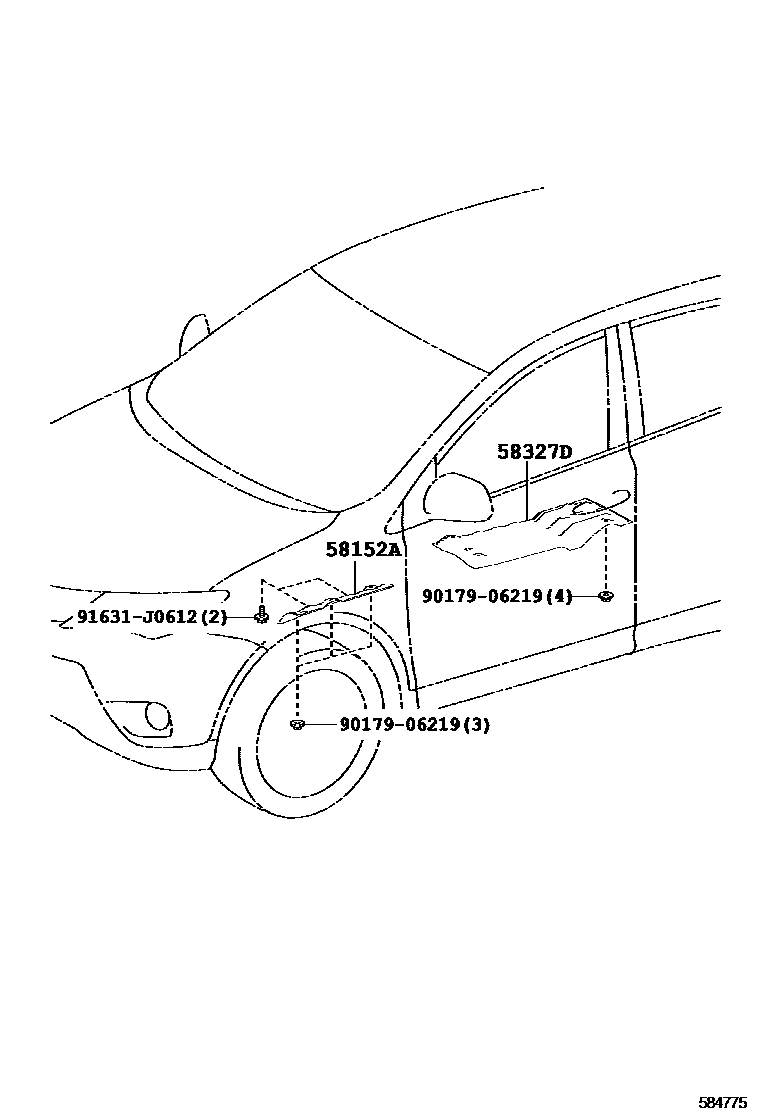

FLOOR INSULATOR

0001 1TYPE A 0002 1TYPE B 0004 1

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-42010iALA49201510-201810

main58152-42030iASA4#,ZSA4#201212-201510

main58152-48031iAVA4#201510-201810

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-42010iASA4#,ZSA4#201212-201510

TYPE A:REFER ILLUST.

main58327-42020iASA4#,ZSA4#201309-201510

TYPE B:REFER ILLUST.

main58327-48050iAVA4#201510-201810

9017906219

main90179-06219

91631J0612

main91631-J0612

4 parts on this diagram · 3 diagrams in section
