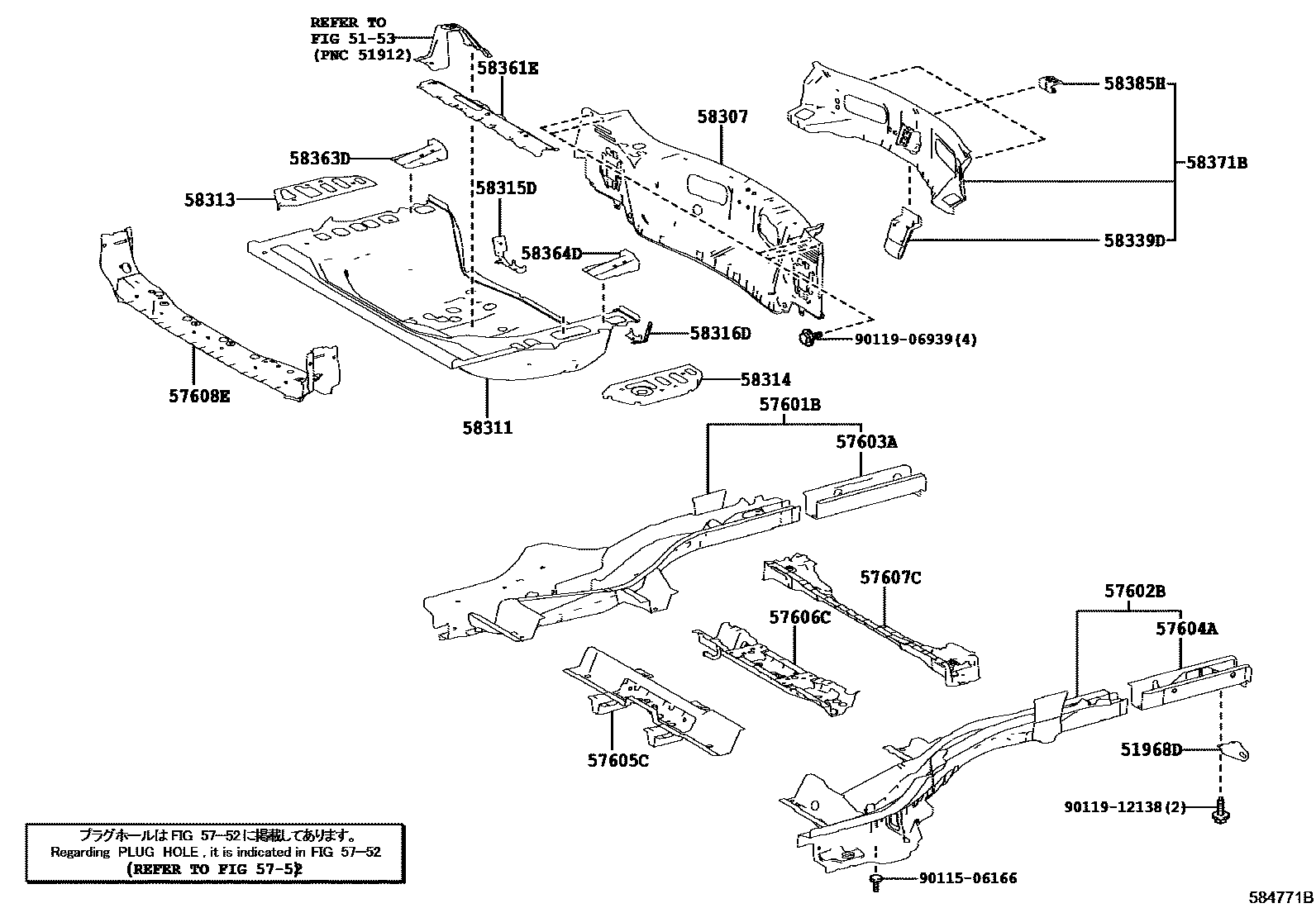

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

5153

51968DHOOK, TRANSPORT, REAR LH

main51968-42010iASA4#,ZSA4#201212-201812

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-42907iASA4#,ZSA4#201212-201306

sub57601-48918

main57601-48918iASA4#,ZSA4#201306-201812

main57601-78020iAVA4#201510-201810

sub57601-78021

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-42905iASA4#,ZSA4#201212-201306

sub57602-48917

main57602-48917iASA4#,ZSA4#201306-201812

main57602-78020iAVA4#201510-201810

sub57602-78021

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-42021iASA4#,ZSA4#201212-201812

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-42020iASA4#,ZSA4#201212-201812

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-42010iASA4#,ZSA4#201212-201812

main57605-78020iAVA4#201510-201810

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-42100iASA4#,ZSA4#201212-201812

main57606-48070iAVA4#201510-201810

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-42070iASA4#,ZSA4#201212-201410

main57607-78010iASA4#,ZSA4#201410-201812

main57607-78020iAVA4#201510-201810

57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH

main57608-42050iASA4#,ZSA4#201212-201305

sub57608-48030

main57608-48030iASA4#,ZSA4#201306-201410

main57608-78010iASA4#,ZSA4#201410-201812

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-42020iASA4#,ZSA4#201212-201410

sub58307-42021

main58307-42021iASA4#,ZSA4#201410-201505

sub58307-42022

sub90950-01886

main58307-42030iASA4#,ZSA4#201505-201812

58311PAN, REAR FLOOR

main58311-42130iASA4#,ZSA4#201212-201505

sub58311-42132

main58311-42132iASA4#,ZSA4#201505-201812

58313PANEL, REAR FLOOR SIDE, RH

main58313-42040iASA4#,ZSA4#201212-201812

58314PANEL, REAR FLOOR SIDE, LH

main58314-42040iASA4#,ZSA4#201212-201812

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-42070iASA4#,ZSA4#201212-201812

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-42080iASA4#,ZSA4#201212-201812

58339DBRACKET, JACK UP

main58339-42040iASA4#,ZSA4#201212-201812

58361EREINFORCEMENT, REAR FLOOR PANEL, NO.1

main58361-42020iASA4#,ZSA4#201212-201812

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-42010iASA4#,ZSA4#201212-201812

58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

main58364-42030iASA4#,ZSA4#201212-201812

58371BPANEL, BODY LOWER BACK, OUTER

main58302-42020iASA4#,ZSA4#201212-201812

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-42020iASA4#,ZSA4#201212-201812

9011506166

main90115-06166

9011906939

main90119-06939

9011912138

main90119-12138

26 parts on this diagram · 3 diagrams in section
