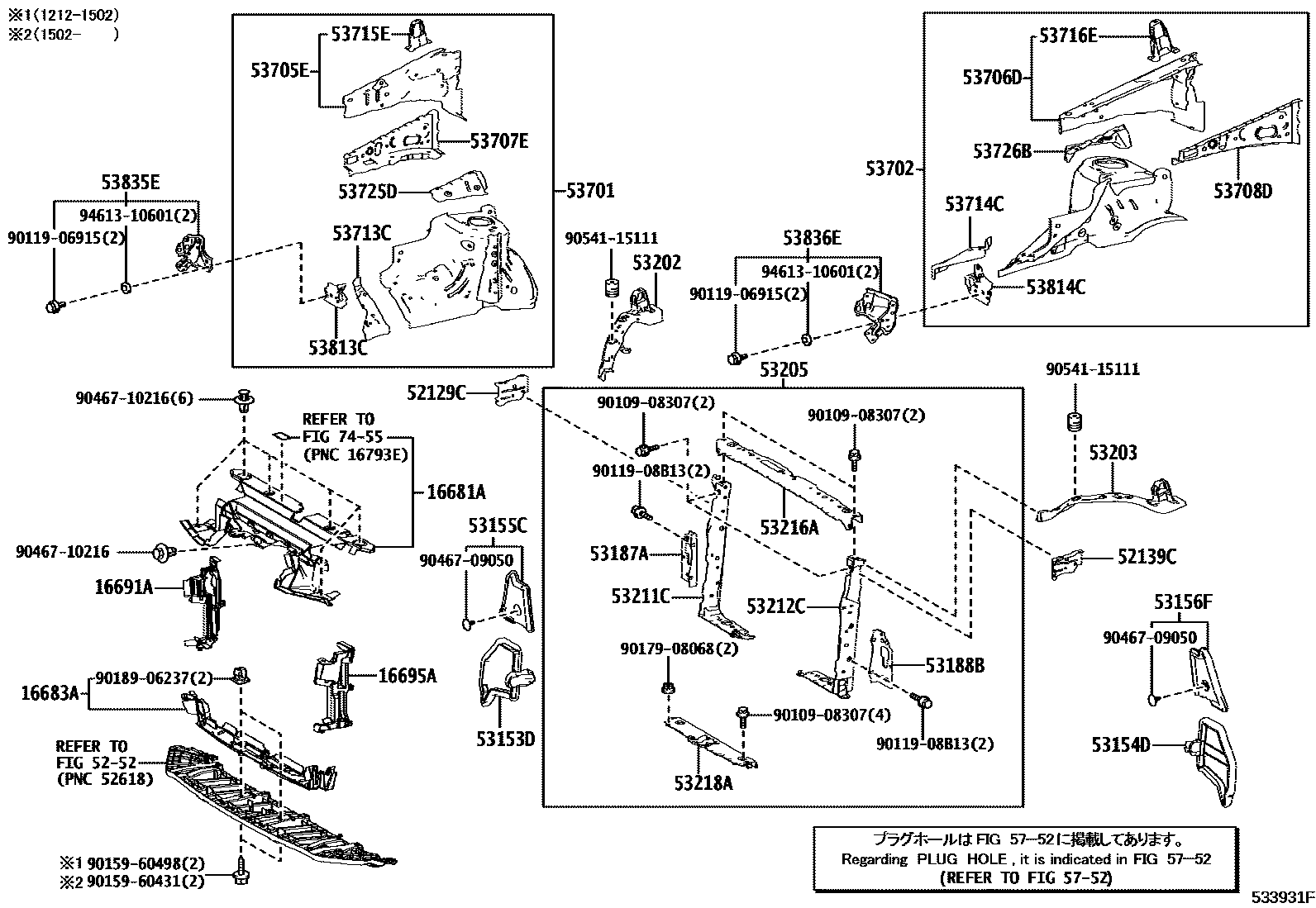

FRONT FENDER APRON & DASH PANEL

0001 1FRONT FENDER APRON 0002 1FRONT FENDER APRON 0003 1FRONT FENDER APRON 0004 1FRONT FENDER APRON 0005 1FRONT FENDER APRON 0006 1DASH PANEL 0007 1DASH PANEL 0008 1DASH PANEL 0009 1DASH PANEL

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-36010i2ARFE,3ZRFE..ASA4#,ZSA4#201212-201510

main16681-36020i2AD#,2AR#,3ZRFE..ALA49,ASA4#,AVA4#,ZSA4#201510-201607

sub16681-36021

main16681-36021i2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M);2ADFHV,2ARFXE..ALA49,AVA4#201608-201812

16683APLATE, RADIATOR LOWER AIR GUIDE

main16683-36010i2ARFE,3ZRFE..ASA4#,ZSA4#201212-201510

main16683-36060i2ARFXE..AVA4#201510-201810

main16683-36070i2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M)201510-201812

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-26010i2ARFE,3ZRFE..ASA4#,ZSA4#201212-201510

main16691-36090i2ADFTV..ALA49..6F..(G,M);2ARFE,3ZRFE..ASA4#,ZSA4#..ARL,GEN,SA201510-201812

main16691-36100i2ARFXE..AVA4#201510-201810

main16691-36110i2ARFE..ASA4#..GCC201510-201604

sub16691-36111

main16691-36111i2ARFE..ASA4#..GCC201605-201812

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-26010i2ARFE,3ZRFE..ASA4#,ZSA4#201212-201510

main16695-36090i2ADFTV..ALA49..6F..(G,M);2ARFE,3ZRFE..ASA4#,ZSA4#..ARL,GEN,SA201510-201812

main16695-36100i2ARFXE..AVA4#201510-201810

main16695-36110i2ARFE..ASA4#..GCC201510-201604

sub16695-36111

main16695-36111i2ARFE..ASA4#..GCC201605-201812

52129CARM, FRONT BUMPER, UPPER NO.2 RH

main52129-42020iASA4#,ZSA4#¥1,470201212-201812

52139CARM, FRONT BUMPER, UPPER NO.2 LH

main52139-42020iASA4#,ZSA4#¥1,470201212-201812

5252

53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-42010iASA4#,ZSA4#201212-201812

53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-42020iASA4#,ZSA4#¥1,460201212-201812

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-42040iASA4#,ZSA4#201212-201812

53156FSEAL, RADIATOR GRILLE, NO.2

main53156-42020iASA4#,ZSA4#;ALA49..6F..(G,M)¥840201212-201812

53187ASTAY, RADIATOR SUPPORT, RH

main53187-42010iASA4#,ZSA4#¥1,720201212-201812

53188BSTAY, RADIATOR SUPPORT, LH

main53188-42010iASA4#,ZSA4#¥1,720201212-201812

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-42030iASA4#,ZSA4#¥3,840201212-201812

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-42040iASA4#,ZSA4#¥3,840201212-201812

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-42080iASA4#,ZSA4#201212-201510

main53205-42120iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201812

53211CSUPPORT, RADIATOR, RH

main53211-42903iASA4#,ZSA4#201212-201812

53212CSUPPORT, RADIATOR, LH

main53212-42903iASA4#,ZSA4#201212-201812

53216ASUPPORT, RADIATOR, UPPER

main53216-42902iASA4#,ZSA4#201212-201812

53218ASUPPORT, RADIATOR, LOWER

main53209-42020iASA4#,ZSA4#201212-201510

main53209-78010iALA49..6F..X;ALA49,AVA4#..6FC,A¥1,500201510-201812

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-42150iASA4#,ZSA4#¥29,500201212-201812

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-42160iASA4#,ZSA4#¥29,500201212-201812

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-42020iASA4#,ZSA4#201212-201812

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-42020iASA4#,ZSA4#201212-201812

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-42010iASA4#,ZSA4#¥3,560201212-201812

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-42010iASA4#,ZSA4#¥3,560201212-201812

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-42040iASA4#,ZSA4#¥1,390201212-201812

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-42040iASA4#,ZSA4#¥1,950201212-201312

sub53714-42041¥1,350

main53714-42041iASA4#,ZSA4#¥1,350201401-201812

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-42020iASA4#,ZSA4#201212-201812

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-42020iASA4#,ZSA4#201212-201812

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-42010iASA4#,ZSA4#¥1,390201212-201812

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-42010iASA4#,ZSA4#¥1,390201212-201812

53813CEXTENSION, FRONT FENDER, RH

main53813-42030iASA4#,ZSA4#¥1,170201212-201812

53814CEXTENSION, FRONT FENDER, LH

main53814-42030iASA4#,ZSA4#¥1,280201212-201812

53835EBRACE, FRONT FENDER TO APRON, RH

main53803-42010iASA4#,ZSA4#201212-201509

sub53803-42020

main53803-42020iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201812

53836EBRACE, FRONT FENDER TO APRON, LH

main53804-42010iASA4#,ZSA4#¥2,560201212-201812

5752

7455

9010908307

main90109-08307¥80

9011906915

main90119-06915¥60

9011908B13

main90119-08B13¥90

9015960431

main90159-60431¥70

9015960498

main90159-60498¥70

9017908068

main90179-08068¥100

9018906237

main90189-06237¥100

9046709050

main90467-09050¥120

9046710216

main90467-10216¥100

9054115111

main90541-15111¥330

9461310601

main94613-10601¥70
