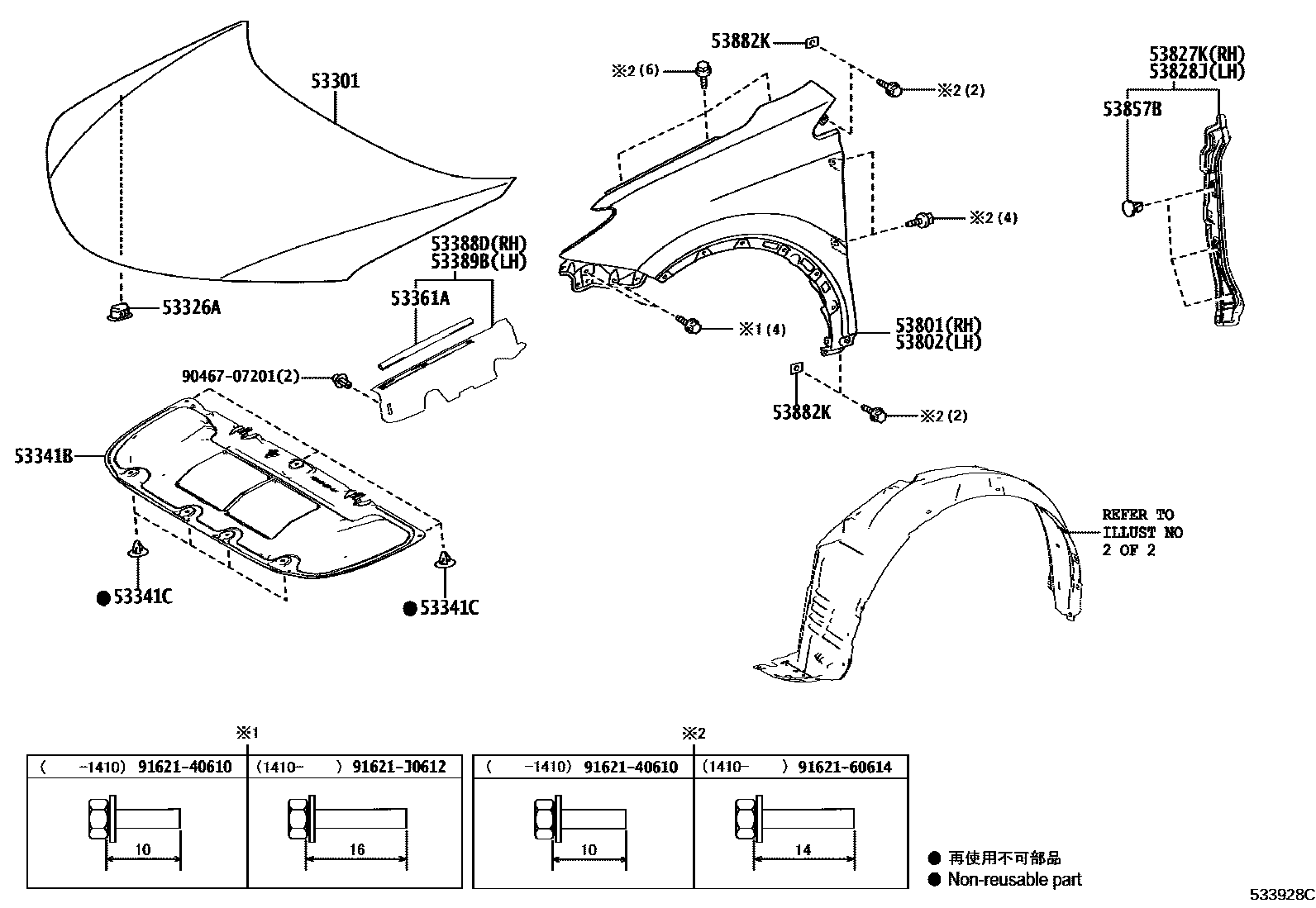

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-42110iASA4#,ZSA4#201212-201510

53326ACLIP, HOOD MOULDING

main53326-52010iASA4#,ZSA4#201212-201510

53341BINSULATOR, HOOD

main53341-42090iASA4#,ZSA4#201212-201510

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×7iASA4#,ZSA4#201212-201510

53361AWEATHERSTRIP, HOOD

main53361-42010×2iASA4#,ZSA4#201212-201510

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-42030iASA4#,ZSA4#201212-201510

main53388-42031iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-42050iASA4#,ZSA4#201212-201510

main53389-42051iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

53801FENDER SUB-ASSY, FRONT RH

main53811-42320iASA4#,ZSA4#201212-201510

53802FENDER SUB-ASSY, FRONT LH

main53812-42350iASA4#,ZSA4#201212-201510

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-42050iASA4#,ZSA4#201212-201510

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-42070iASA4#,ZSA4#201212-201510

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011×6iASA4#,ZSA4#201212-201510

53882KSEAL, FRONT FENDER

main53882-16030×4iASA4#,ZSA4#201212-201510

9046707201

main90467-07201

9162140610

main91621-40610

9162160614

main91621-60614

91621J0612

main91621-J0612

17 parts on this diagram · 2 diagrams in section
