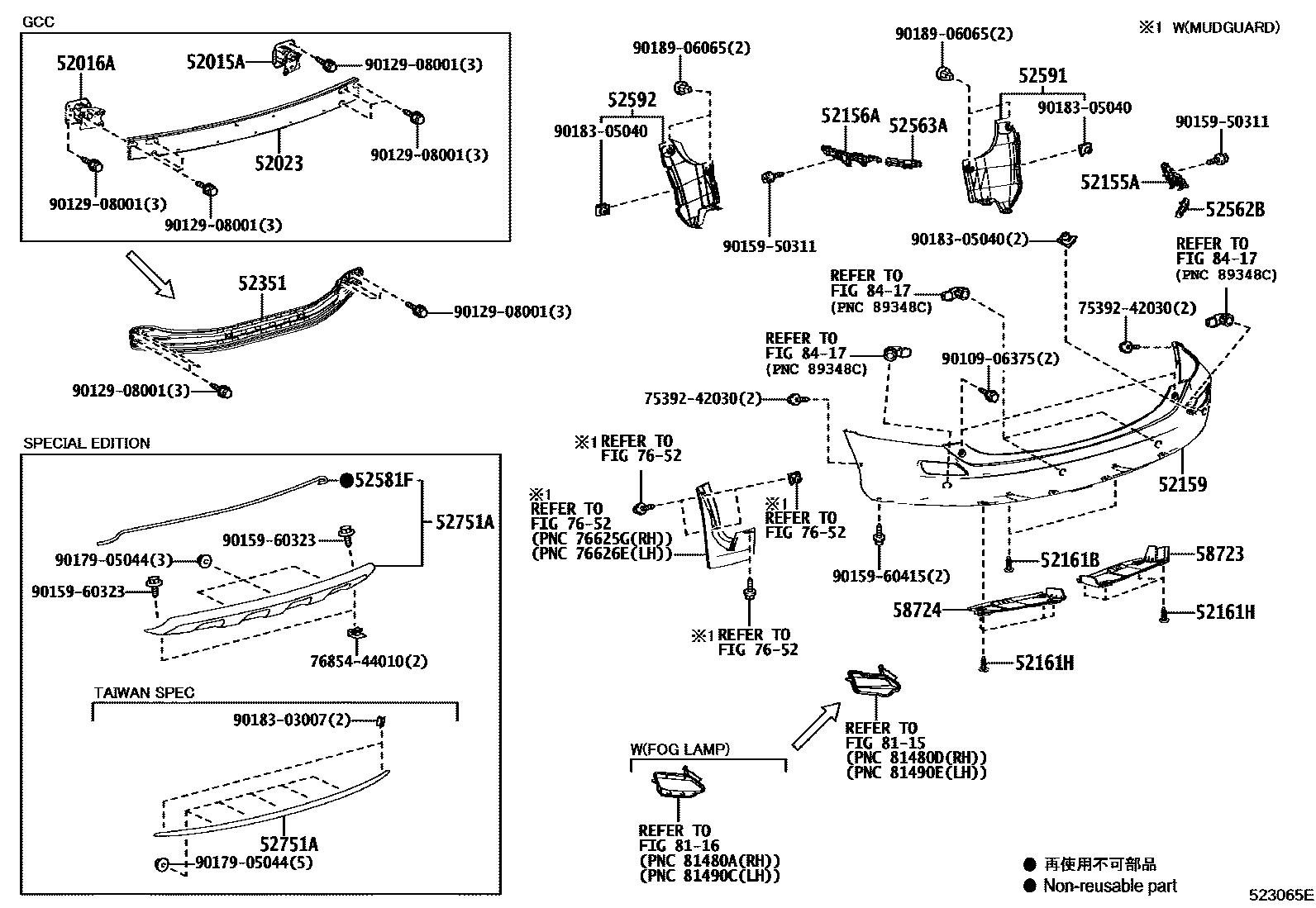

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
CLEARANCE & BACK SONAR-WITH(REAR)
52155ASUPPORT, REAR BUMPER SIDE, RH
main52155-42040iZSA42..M,X;ZSA42..CVT..G;ZSA44..A..(M,X);ALA49..6F..(G,M);ZSA42..6F..G..GEN;ASA4#,ZSA44..6F,6FC,B201510-201812
52156ASUPPORT, REAR BUMPER SIDE, LH
main52156-42020iZSA42..M,X;ZSA42..CVT..G;ZSA44..A..(M,X);ALA49..6F..(G,M);ZSA42..6F..G..GEN;ASA4#,ZSA44..6F,6FC,B201510-201812
52159COVER, REAR BUMPER
NO PAINT REQ.,RUSSIA SPEC&MUD GUARD-WITH(FRONT & REAR)&CLEARANCE & BACK SONAR-WITH(REAR)
PAINT REQ.
CLEARANCE & BACK SONAR-WITHOUT&SPECIAL EDITION
main52159-42240iASA42..G..GEN;ZSA42..A..(G,X);ZSA44..(6F,A)..X;ZSA42..LHD..6F..X;ASA44..6FC..(G,X)..ARL;ASA44..LHD..6FC..(G,X)..GEN201410-201509
CLEARANCE & BACK SONAR-WITH(REAR)&SPECIAL EDITION
TAIWAN SPEC&SPECIAL EDITION
52161BPIECE, REAR BUMPER
main52161-16010×2iZSA42..M,X;ZSA42..CVT..G;ZSA44..A..(M,X);ALA49..6F..(G,M);ZSA42..6F..G..GEN;ASA4#,ZSA44..6F,6FC,B201510-201812
sub52161-0K040
52161HPIECE, REAR BUMPER
main52161-16010×8iZSA42..M,X;ZSA42..CVT..G;ZSA44..A..(M,X);ALA49..6F..(G,M);ZSA42..6F..G..GEN;ASA4#,ZSA44..6F,6FC,B201510-201812
sub52161-0K040
52351STEP, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52581FPROTECTOR, REAR BUMPER
main52581-42070iASA42..G..GEN;ZSA42..A..(G,X);ZSA44..(6F,A)..X;ZSA42..LHD..6F..X;ASA44..6FC..(G,X)..ARL;ASA44..LHD..6FC..(G,X)..GEN201410-201509
SPECIAL EDITION
52591SEAL, REAR BUMPER SIDE, RH
main52591-42090iZSA42..M,X;ZSA42..CVT..G;ZSA44..A..(M,X);ALA49..6F..(G,M);ZSA42..6F..G..GEN;ASA4#,ZSA44..6F,6FC,B201510-201812
52592SEAL, REAR BUMPER SIDE, LH
52751AMOULDING, REAR BUMPER, CENTER
TAIWAN SPEC&SPECIAL EDITION
main52751-42020iASA42..G..GEN;ZSA42..A..(G,X);ZSA44..(6F,A)..X;ZSA42..LHD..6F..X;ASA44..6FC..(G,X)..ARL;ASA44..LHD..6FC..(G,X)..GEN201410-201509
SPECIAL EDITION,EXCEPT COLOR 070
SPECIAL EDITION,COLOR 070 ONLY
58723PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1
main58723-42020supersedes 58723-42050iASA44..G..ARL;ALA49..6F..(G,M);ASA4#,ZSA4#..M,X;ZSA42..A..G..ARL201510-201812
58724PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.2
main58724-42020supersedes 58724-42050iZSA44..B..G;ALA49..6FC..(G,M)..SA;ASA44,ZSA42..G..(GCC,GEN,SA);ALA49,ASA42,AVA4#..LHD..(6FC,A)..G201510-201712
7652
8115
8116
8417
7539242030RETAINER, OUTSIDE MOULDING
main75392-42030
7685444010RETAINER, FRONT SPOILER, UPPER LH
main76854-44010
9010906375
main90109-06375
9012908001
main90129-08001
9015950311
main90159-50311
9015960323
main90159-60323
9015960415
main90159-60415
9017905044
main90179-05044
9018303007
main90183-03007
9018305040
main90183-05040
9018906065
main90189-06065
32 parts on this diagram · 2 diagrams in section
