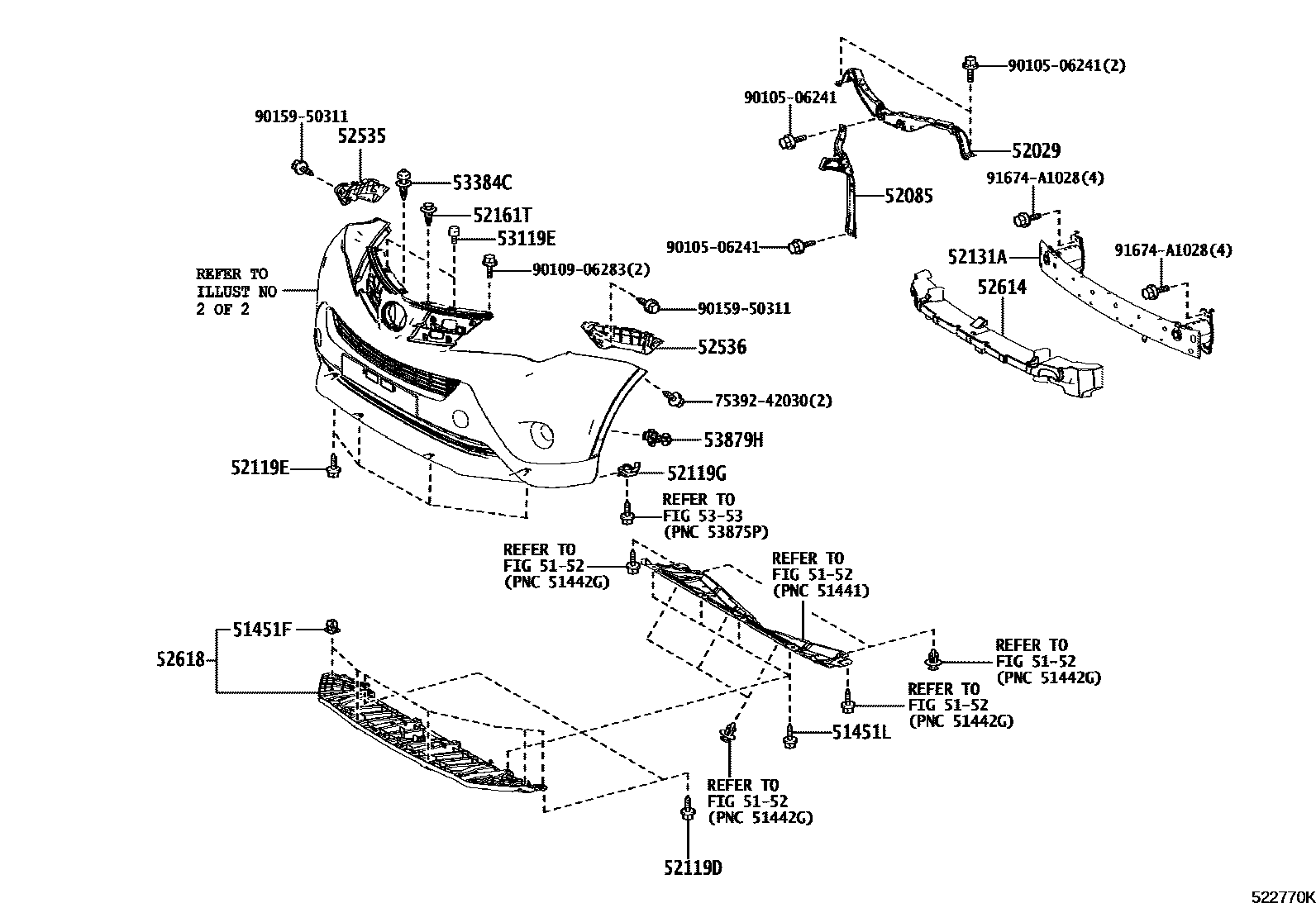

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

51451FGROMMET, NO.1

main90189-06193iASA4#,ZSA4#201212-201501

main90189-06237iZSA42..M,X;ZSA44..6F,B;ZSA42..CVT..G;ZSA44..A..(M,X);ZSA42..6F..G..GEN;ALA49,ASA4#,AVA4#..ARL,GEN,SA201502-201812

51451LBOLT, NO.1

main90119-06767iZSA42..M,X;ZSA44..6F,B;ZSA42..CVT..G;ZSA44..A..(M,X);ALA49,ASA4#,AVA4#;ZSA42..6F..G..GEN201212-201812

5152

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-42100iASA4#,ZSA4#201212-201510

main52029-42110iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201812

52085STAY SUB-ASSY, FRONT BUMPER, CENTER

main52085-42040iASA4#,ZSA4#201212-201510

main52085-42050iZSA42..M,X;ZSA42..CVT..G;ZSA44..A..(M,X);ALA49..6F..(G,M);ZSA42..6F..G..GEN;ASA4#,ZSA44..6F,6FC,B201510-201812

52119DSCREW, NO.1

main90159-60431iZSA44..A..G;ZSA42..6F..G..ARL201212-201812

52119ESCREW, NO.2

main90159-60431iZSA44..A..G;ZSA42..6F..G..ARL201212-201812

52119GCLIP, NO.1

main90467-05114iZSA42..M,X;ZSA44..6F,B;ZSA42..CVT..G;ZSA44..A..(M,X);ALA49,ASA4#,AVA4#;ZSA42..6F..G..GEN201212-201812

52131AREINFORCEMENT, FRONT BUMPER

main52021-42120iASA4#,ZSA4#201212-201812

52161TPIECE, FRONT BUMPER

main52161-16010iASA4#,ZSA4#201212-201510

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-42070iASA4#,ZSA4#201212-201510

main52535-42080iZSA44..A..G;ZSA42..6F..G..ARL201510-201812

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-42050iASA4#,ZSA4#201212-201510

main52536-42070iZSA44..A..G;ZSA42..6F..G..ARL201510-201812

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-42080iASA4#,ZSA4#201212-201510

main52614-42110iZSA44..A..G;ZSA42..6F..G..ARL201510-201812

52618ABSORBER, FRONT BUMPER, LOWER

main52618-42050iASA4#,ZSA4#201212-201510

main52618-42070iZSA44..A..G;ZSA42..6F..G..ARL201510-201812

53119EPROTECTOR, RADIATOR GRILLE

main53119-12150iASA4#,ZSA4#201212-201510

53384CCUSHION, HOOD, CENTER

main53384-68010iASA4#,ZSA4#201212-201510

5353

53879HRETAINER, FRONT FENDER LINER

main53879-28010iZSA44..A..G;ZSA42..6F..G..ARL201212-201812

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

9010506241

main90105-06241

9010906283

main90109-06283

9015950311

main90159-50311

91674A1028

main91674-A1028

23 parts on this diagram · 6 diagrams in section
