SPARE WHEEL CARRIER

51912BRACKET, SPARE WHEEL

main51912-42010iASA4#,ZSA4#201212-201510

51931CARRIER, SPARE WHEEL, NO.1

main51931-33230supersedes 51931-47020iASA4#,ZSA4#201212-201510

64777HCUSHION, SPARE WHEEL

main64777-42050supersedes 64777-42060iASA44..M..SA;ALA49..6F..G..GEN;ALA49..6F..(G,M)..SA;ASA4#,ZSA4#..G..(GCC,GEN,SA)201510-201812

SPARE TIRE-GROUND TIRE

main64777-42040iASA4#..GCC;ASA42..X..GEN;ASA44..6F..GEN201311-201508

SPARE TIRE-165/80D17(REINFORCED TEMPORARY)

sub64777-42060

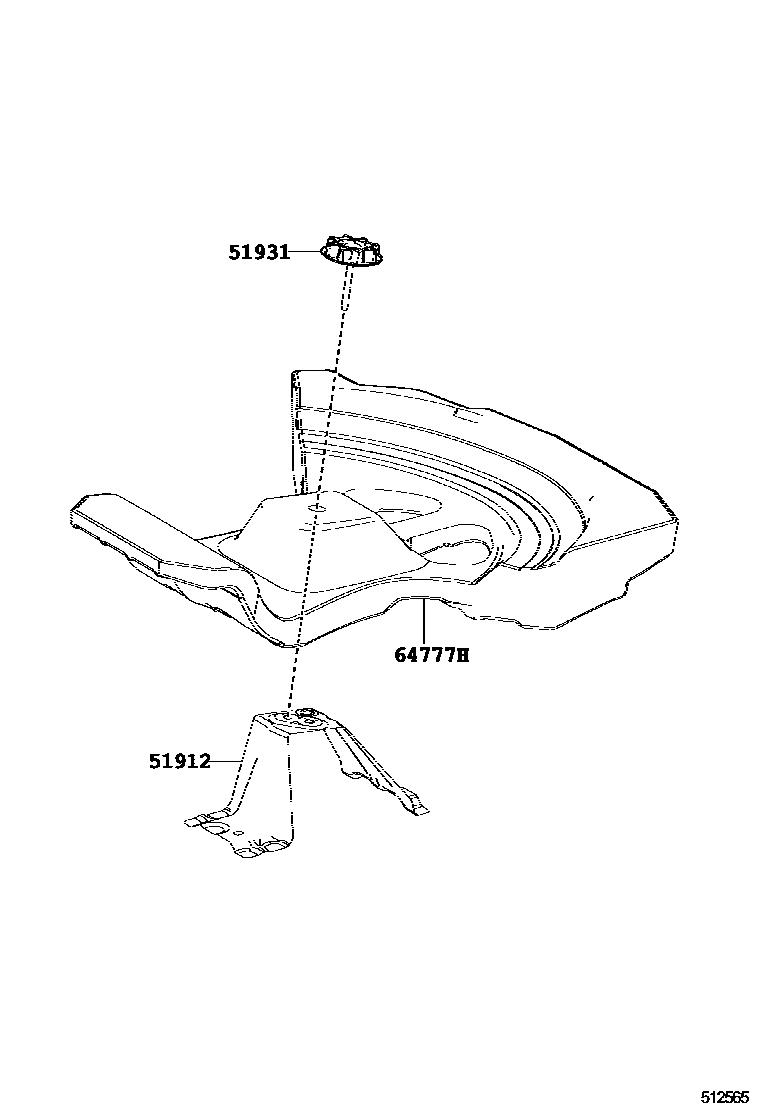

3 parts on this diagram · 1 diagram in section
