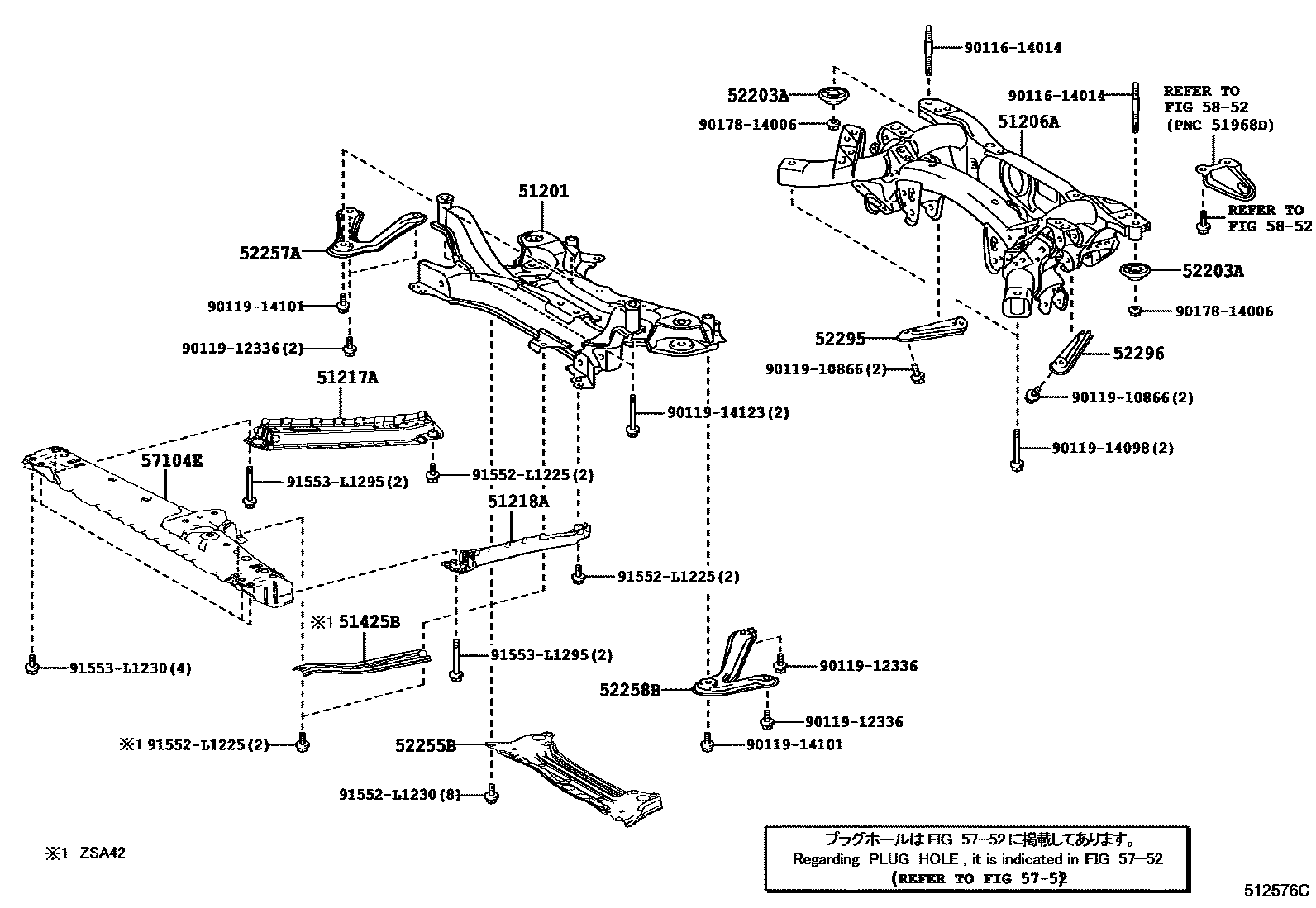

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0003 1SUSPENSION CROSSMEMBER 0004 1UNDER COVER 0005 1UNDER COVER 0006 1UNDER COVER 0007 1UNDER COVER 0008 1UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iASA4#,ZSA4#201212-201309

main51201-12442iALA49..6FC;ALA49..6F..X201510-201810

sub51201-78010

main51201-12451iAVA4#201510-201810

sub51201-78020

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-42062iASA4#,ZSA4#201212-201309

main51206-42063iASA4#,ZSA4#201310-201412

main51206-48060iAVA4#201510-201810

main51206-78010iALA49..6FC;ALA49..6F..X201510-201810

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-42020iASA4#,ZSA4#201212-201510

main51107-48020iAVA4#201510-201810

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-42020iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

main51108-48020iAVA4#201510-201810

51425BREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-42010iZSA42201212-201510

52203ACUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER

main52203-42020×2iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-76010iASA4#,ZSA4#201212-201510

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42010iASA4#,ZSA4#201212-201510

main52257-48040iAVA4#201510-201810

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42010iALA49..6FC;ALA49..6F..X201510-201810

main52258-48050iAVA4#201510-201810

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-42010iASA4#,ZSA4#201212-201510

main53653-48020iAVA4#201510-201810

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-42010iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

main53654-48010iAVA4#201510-201810

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-42070iASA4#,ZSA4#201212-201510

5752

5852

9011614014

main90116-14014

9011910866

main90119-10866

9011912336

main90119-12336

9011914098

main90119-14098

9011914101

main90119-14101

9011914123

main90119-14123

9017814006

main90178-14006

91552L1225

main91552-L1225

91552L1230

main91552-L1230

91553L1230

main91553-L1230

91553L1295

main91553-L1295

25 parts on this diagram · 7 diagrams in section
