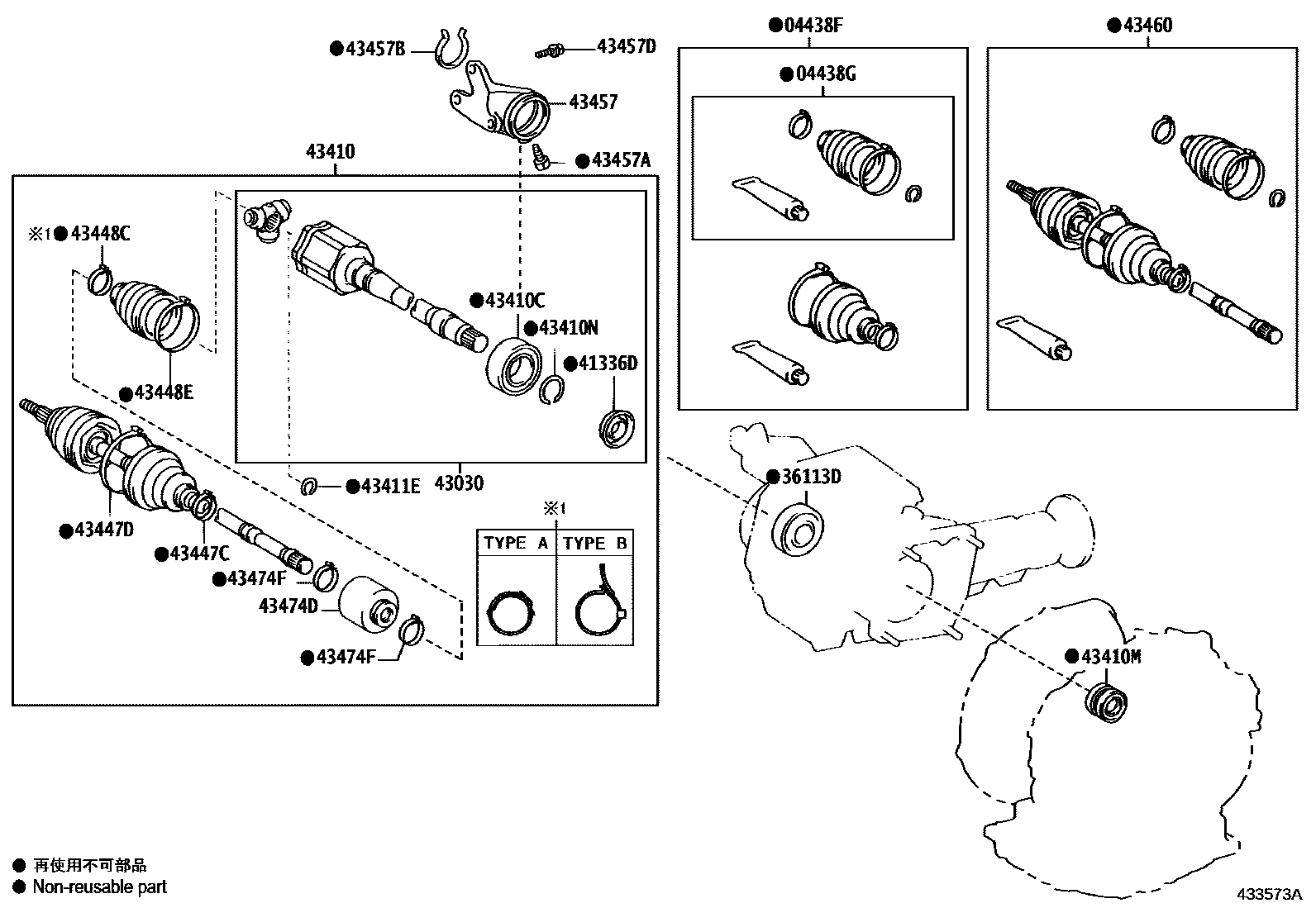

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
PNC 43410=TYPE B
PNC 43410=TYPE A
PNC 43410=TYPE A
PNC 43410=TYPE B
PNC 43410=TYPE B
PNC 43410=TYPE A
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
PNC 43410=TYPE B
PNC 43410=TYPE A
36113DSEAL, OIL (FOR TRANSFER CASE RH)
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
PNC 43410=TYPE B
PNC 43410=TYPE A
PNC 43410=TYPE A
PNC 43410=TYPE A
PNC 43410=TYPE B
43410SHAFT ASSY, FRONT DRIVE, RH
(L)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
43410CBEARING (FOR FRONT DRIVE SHAFT)
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
PNC 43410=TYPE A
PNC 43410=TYPE B
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX22-19.5
*10-1.25PX19.8-8.3
43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
PNC 43410=TYPE A
PNC 43410=TYPE A
PNC 43410=TYPE B
PNC 43410=TYPE A
PNC 43410=TYPE A
PNC 43410=TYPE B
PNC 43410=TYPE B
43474DDAMPER, FRONT DRIVE SHAFT, RH
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
21 parts on this diagram · 9 diagrams in section
