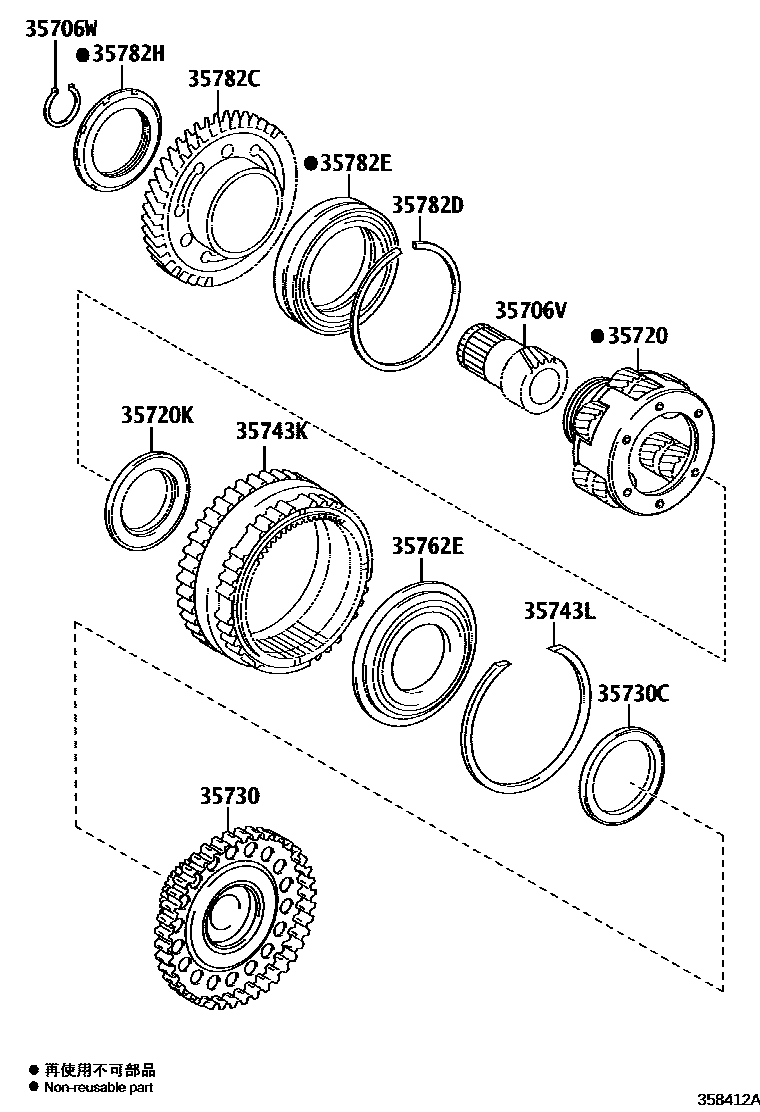

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-33020i201510-201810

main35706-73010i201212-201812

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032i201212-201812

35720GEAR ASSY, FRONT PLANETARY

main35720-33062i201510-201810

main35720-33070i201608-201812

*285

main35720-73010i201212-201312

sub35720-73020

main35720-73020i201510-201811

*284

sub35720-33070

main35720-73020i201401-201510

sub35720-33070

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62004i201212-201407

sub90374-62011

main90374-62007i201510-201810

main90374-62011i201408-201812

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33021i201510-201810

main35730-33030i201608-201812

*285

main35730-73010i201212-201510

sub35730-33030

main35730-73010i201510-201811

*284

sub35730-33030

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001i201212-201812

35743KGEAR, PLANETARY RING

main35743-33030i201510-201810

main35743-33040i201608-201812

*285

main35743-73010i201510-201811

*284

sub35743-33040

main35743-73010i201212-201510

sub35743-33040

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108i201212-201812

35762EFLANGE, PLANETARY RING GEAR

main35762-33020i201510-201810

main35762-73010i201212-201812

35782CGEAR, COUNTER DRIVE

main35782-33031i201510-201810

main35782-33040i201608-201812

*285

main35782-73010i201212-201510

sub35782-33040

main35782-73010i201510-201811

*284

sub35782-33040

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99110i201212-201402

main90520-99154i201402-201812

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72001i201212-201402

sub90369-72002

main90369-72002i201402-201812

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001i201212-201812

13 parts on this diagram · 2 diagrams in section
