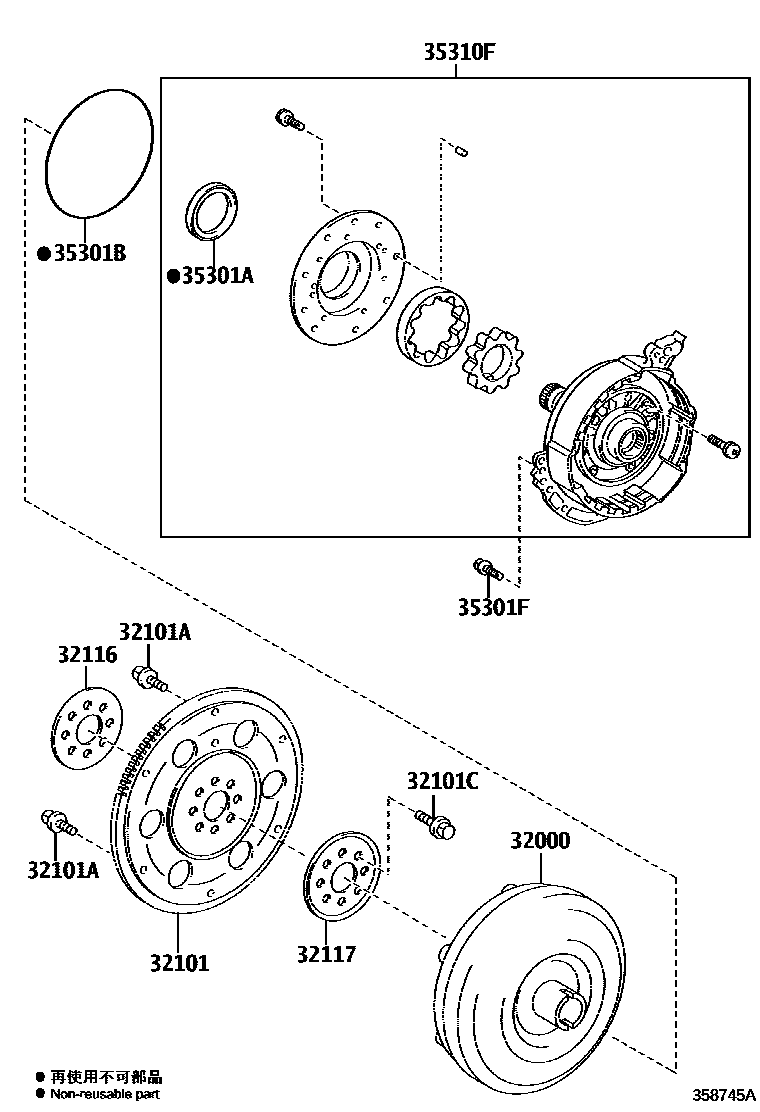

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1U760E,U760F 0002 1U760E,U760F 0003 1U660F

32000CONVERTER ASSY, TORQUE

main32000-20351iALA49..6FC201510-201810

main32000-33143iASA42..6FC201608-201812

*285

main32000-73011iASA4#..6FC201212-201402

main32000-73012iASA4#..6FC201403-201506

main32000-73013iASA4#..6FC201507-201510

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06060iASA4#..6FC201510-201812

(L)

main32101-20130iALA49..6FC201510-201810

main32101-73010iASA4#..6FC201510-201812

(J)

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10567iALA49..6FC201510-201810

*10-1.25PX10.6-8.3,BLACK

main90105-10568×5iALA49..6FC201510-201810

*10-1.25PX10.6-8.3,SILVER WHITE

main90109-09001iASA4#..6FC201510-201812

*9-1.25PX12.4-7.3,BLACK

main90119-09025×5iASA4#..6FC201510-201812

*9-1.25PX12.4-8.4,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iALA49..6FC201510-201810

*10-1.25PX18-13

main90105-12384×8iASA4#..6FC201212-201510

*12-1.25PX21-15

32116SPACER, DRIVE PLATE, FRONT

main32116-20050iASA4#..6FC201212-201510

main32116-20070iALA49..6FC201510-201810

32117SPACER, DRIVE PLATE, REAR

main32117-06010iASA4#..6FC201312-201510

(L)

main32117-20060iASA4#..6FC201510-201812

(J)

main32117-20080iALA49..6FC201510-201810

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-43010iASA4#..6FC201212-201302

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-33010iASA4#..6FC201212-201510

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main91551-80835×7iASA4#..6FC201212-201510

*8-1.25PX35-22

35310FPUMP ASSY, FRONT OIL

main35310-73013iASA4#..6FC201212-201302

10 parts on this diagram · 3 diagrams in section
