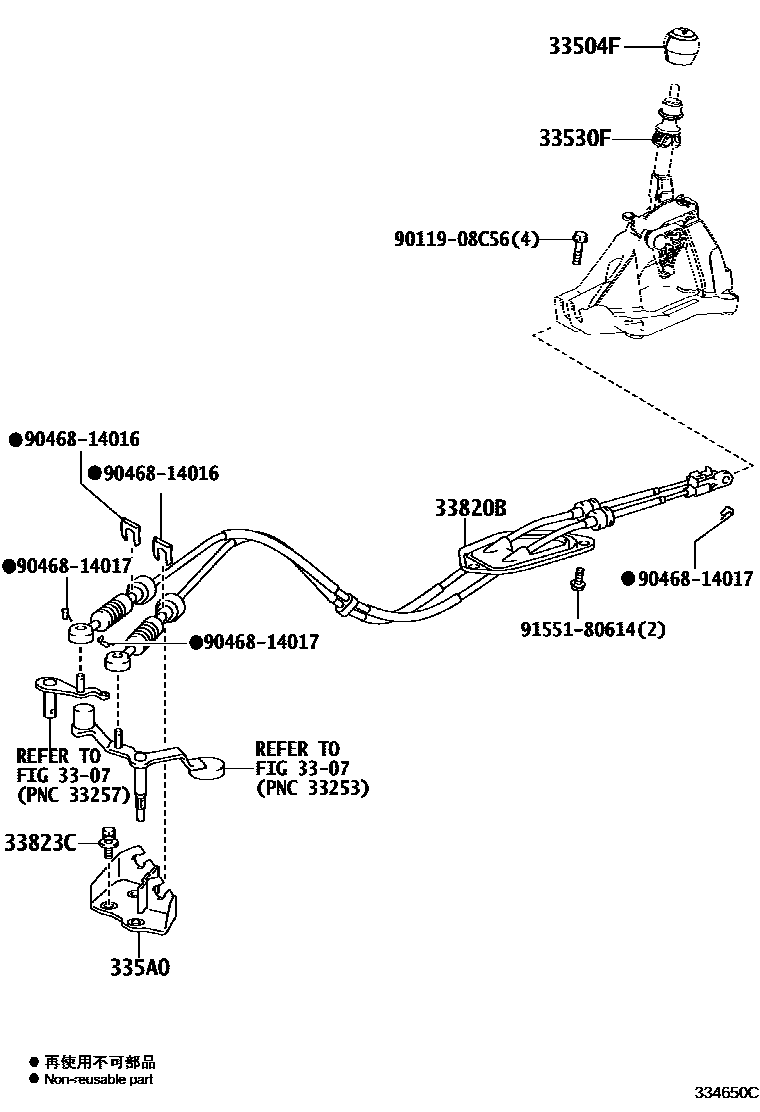

SHIFT LEVER & RETAINER

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12320-C0iASA4#..6F..X;ZSA42..6F..X..ARL201212-201510

BLACK,TRIM1#,2#,3#,4#

sub33504-12320

sub33504-33100

main33504-12320-C0iZSA4#..6F..GEN201212-201510

BLACK,TRIM2#,4#

sub33504-12320

sub33504-33100

main33504-12320-C2iALA49,ASA4#,ZSA4#..6F..X201510-201812

BLACK,TRIM2#,4#

sub33504-12320

sub33504-33100

main33504-12330-C0iASA44,ZSA42..6F..G201212-201510

BLACK,TRIM1#,2#,3#,4#

sub33504-12330

main33504-12330-C0iASA44,ZSA42..6F..G201212-201510

STEERING WHEEL-LEATHER,BLACK,TRIM1#,2#,3#,4#

sub33504-12330

main33504-12330-C0iASA44,ZSA42..6F..G201212-201510

STEERING WHEEL-LEATHER,BLACK,TRIM2#,4#

sub33504-12330

main33504-12330-C3iALA49,ASA44,ZSA42..6F..G201510-201812

BLACK,TRIM1#,2#,3#,4#

sub33504-12330

main33504-12330-C3iALA49,ASA44,ZSA42..6F..G201510-201812

BLACK,TRIM1#,2#,4#

sub33504-12330

main33504-42070-C0iZSA4#..A..X..GEN201212-201510

BLACK,TRIM1#,2#,3#,4#

main33504-42070-C0iASA4#,ZSA4#..(6FC,A)..G201212-201510

STEERING WHEEL-LEATHER,BLACK,TRIM2#,3#,4#

main33504-42070-C0iASA4#,ZSA4#..(6FC,A)..G201212-201510

STEERING WHEEL-LEATHER,BLACK,TRIM2#,4#

main33504-42080-C0iALA49,ASA4#,ZSA4#..(ATM,CVT)..X201212-201812

BLACK,TRIM2#,4#

main33504-42080-C0iZSA4#..A..X..GEN201212-201510

BLACK,TRIM2#,3#,4#

main33504-42100iASA44,ZSA42..LHD..(6FC,A)..G..GEN201410-201509

SPECIAL EDITION

main33504-42120-C0iALA49,ASA4#,AVA4#,ZSA4#..(ATM,CVT)..G201510-201812

BLACK & SILVER,TRIM1#,2#,4#

main33504-42120-C0iALA49,ASA4#,AVA4#,ZSA4#..(ATM,CVT)..G201510-201812

BLACK & SILVER,TRIM1#,2#,3#,4#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-42090iASA4#,ZSA4#..6F201212-201812

335A0BRACKET ASSY, CONTROL CABLE

main335A0-21010iASA4#..6F201212-201805

main335A0-42020iZSA4#..6F201212-201812

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-42280iZSA4#..6F201212-201812

main33820-42290iASA4#..6F201212-201805

main33820-42340iALA49..6F201510-201810

main33820-42370iASA4#..6FC201212-201812

main33820-42380iALA49..6FC201510-201810

main33820-42390iZSA42..B201212-201812

main33820-42400iZSA44..A201212-201812

main33820-42420iZSA42..A201510-201812

main33820-42430iAVA4#201510-201810

main33820-42450iZSA44..A201510-201812

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-28280iAVA4#201510-201810

main33823-28300iZSA4#..A201510-201812

main33823-42030iZSA4#..A201212-201812

main33823-42040iASA4#..6FC201212-201812

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60iASA4#,ZSA4#..6F;ALA49..6F..(G,M)201212-201812

9011908C56

main90119-08C56

9046814016

main90468-14016

9046814017

main90468-14017

9155180614

main91551-80614

11 parts on this diagram · 7 diagrams in section
