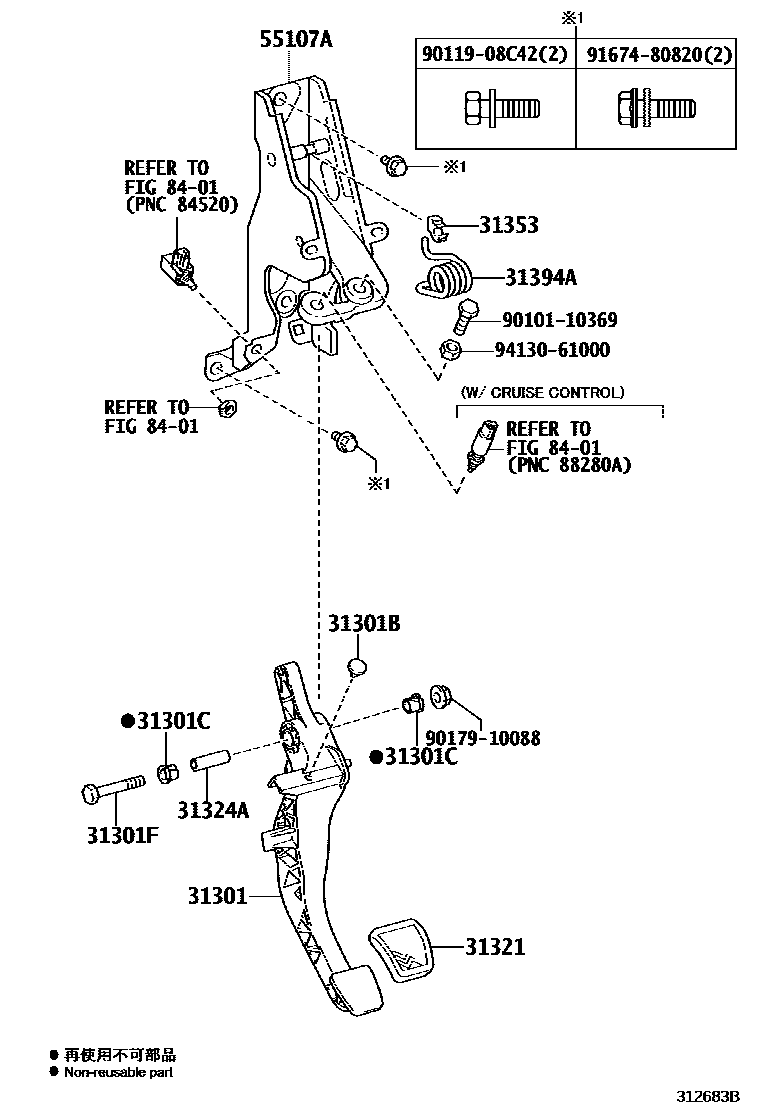

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-42081iALA49..6F..GEN201510-201810

main31301-42090iASA4#,ZSA4#..LHD..6F201510-201812

main31311-42050iALA49..RHD..6F..X201510-201810

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZSA4#..6F..GEN201212-201510

UKURAINE SPEC

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iASA4#,ZSA4#..6F201212-201510

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10039iASA4#,ZSA4#..6F201212-201510

31321PAD, CLUTCH PEDAL

main31321-42010iASA4#,ZSA4#..6F201212-201510

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iALA49..6F..X201510-201810

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iALA49..6F..X201510-201810

31394ASPRING, PEDAL W/HOOK

main31394-12050iASA44,ZSA42..RHD..6F;ALA49..RHD..6F..(G,M)201510-201812

main31394-12070iALA49..6F..GEN201510-201810

NO.1

main31394-42050iALA49..6F..GEN201510-201810

NO.2

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-42080iASA44,ZSA42..RHD..6F;ALA49..RHD..6F..(G,M)201510-201812

main55107-42091iALA49..6F..X..GEN201510-201810

8401

9010110369

main90101-10369

9011908C42

main90119-08C42

9017910088

main90179-10088

9167480820

main91674-80820

9413061000

main94130-61000

15 parts on this diagram · 10 diagrams in section
