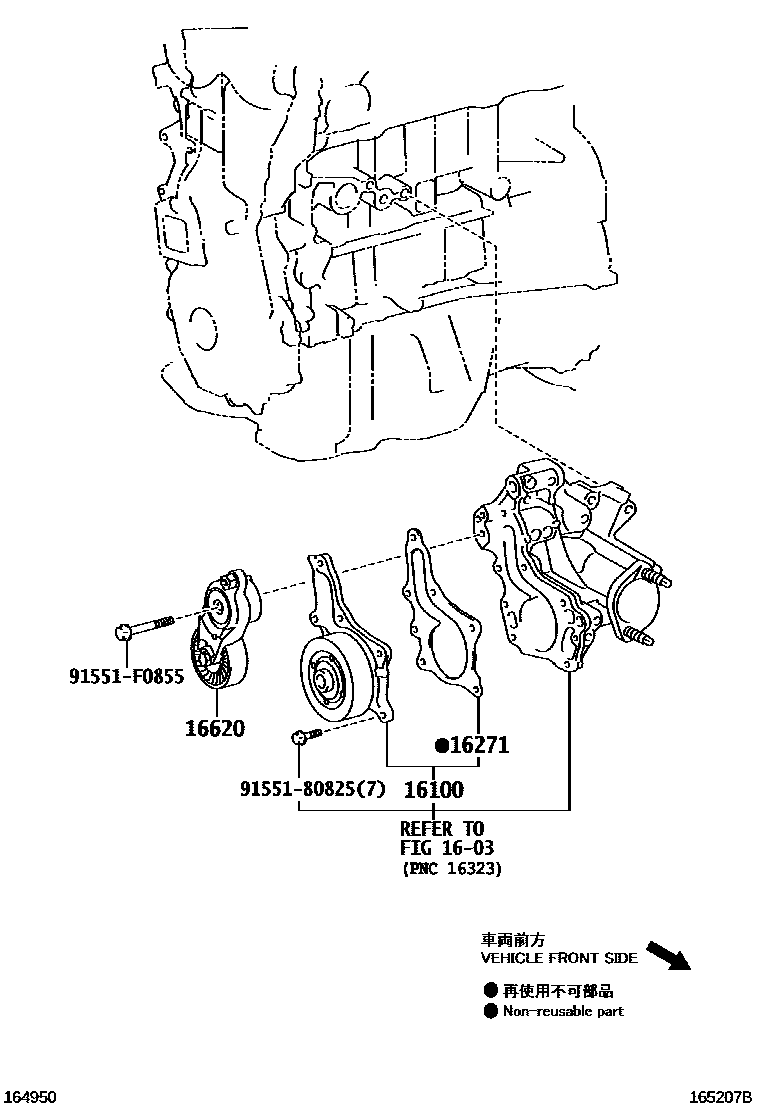

WATER PUMP

0001 1 0002 1 0003 1 0004 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-09341i2AD#..ALA49201510-201810

main16100-39466i3ZRFE..ZSA4#201212-201510

main16100-39515i2ARFE..ASA4#..GEN201212-201510

sub16100-39516

main16100-39575i2ARFXE..AVA4#201510-201810

*347,*265 OR *524

16271GASKET, WATER PUMP

main16271-26010i2AD#..ALA49201510-201810

main16271-36010i2ARFE..ASA4#..GEN201212-201510

main16271-36030i2ARFXE..AVA4#201510-201810

*347,*265 OR *524

main16271-37010i3ZRFE..ZSA4#201212-201510

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0R010i2AD#..ALA49201510-201810

main16620-0V042i2ARFXE..AVA4#201510-201810

*347T/P A:REF.ILLUST

main16620-0V051i2ARFXE..AVA4#201510-201810

*347T/P B:REF.ILLUST

main16620-36010i2ARFE..ASA4#201212-201402

main16620-36011i2ARFE..ASA4#201402-201509

main16620-36012i2AR#..ASA4#,AVA4#201510-201712

*265 OR *524

main16620-36013i2ARFXE..AVA4#201801-201810

*265 OR *524

9155180825

main91551-80825

91551F0855

main91551-F0855

6 parts on this diagram · 4 diagrams in section
