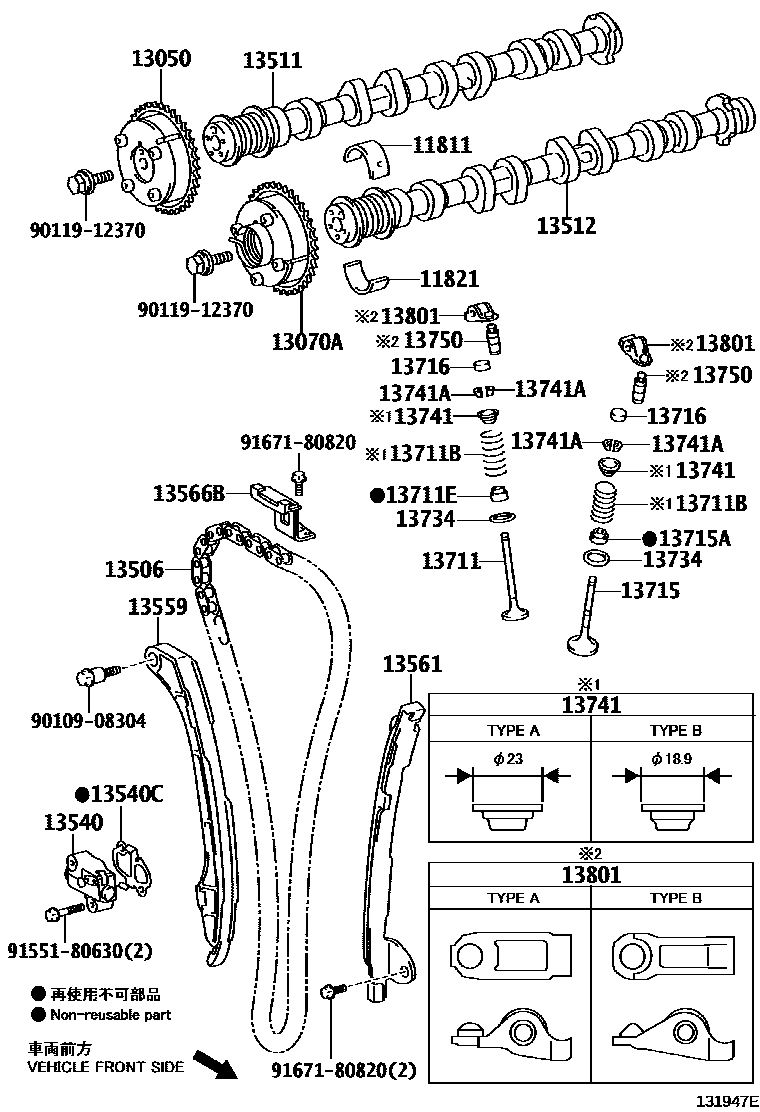

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
*347
*265 OR *524
11821BEARING, CAMSHAFT, NO.2
*347
*265 OR *524
13050GEAR ASSY, CAMSHAFT TIMING
(L),*347
(J),*347,*265 OR *524
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13506CHAIN SUB-ASSY
*347
13511CAMSHAFT
(L)
*347
*265 OR *524
*265 OR *524
13512CAMSHAFT, NO.2
(L)
*347
*265 OR *524
*265 OR *524
13540TENSIONER ASSY, CHAIN, NO.1
*347
*265 OR *524
13540CGASKET(FOR CHAIN TENSIONER)
*347
*265 OR *524
13559SLIPPER, CHAIN TENSIONER
*347
*265 OR *524
13561DAMPER, CHAIN VIBRATION, NO.1
*347
13566BGUIDE, TIMING CHAIN
*347
13711VALVE, INTAKE
*347
*265 OR *524
13711BSPRING, COMPRESSION(FOR INNER)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
L=51.88
PNC 13741=TYPE A
*265 OR *524
*347PNC 13741=TYPE A
*347PNC 13741=TYPE B
13711ESEAL, INTAKE VALVE STEM OIL
*265 OR *524
(J)
*347
(L)
13715VALVE, EXHAUST
*347
13715ASEAL, EXHAUST VALVE STEM OIL
*265 OR *524
(J)
*347
(L)
13716CAP, VALVE STEM
(L),*347
13734SEAT, VALVE SPRING
*347
13741RETAINER, VALVE SPRING
(L),*347T/P A:SEE
(L),*347T/P B:SEE
TYPE A:REFER ILLUST.
*265 OR *524
13741ALOCK, VALVE SPRING RETAINER
(L),*347
13750ADJUSTER ASSY, VALVE LASH
*347PNC 13801=TYPE A
*347PNC 13801=TYPE B
PNC 13801=TYPE A
*265 OR *524
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
*347T/P A:REF.ILLUST
*347T/P B:REF.ILLUST
TYPE A:REFER ILLUST.
*265 OR *524
9010908304
main90109-08304
9011912370
main90119-12370
9155180630
main91551-80630
9167180820
main91671-80820
27 parts on this diagram · 4 diagrams in section
