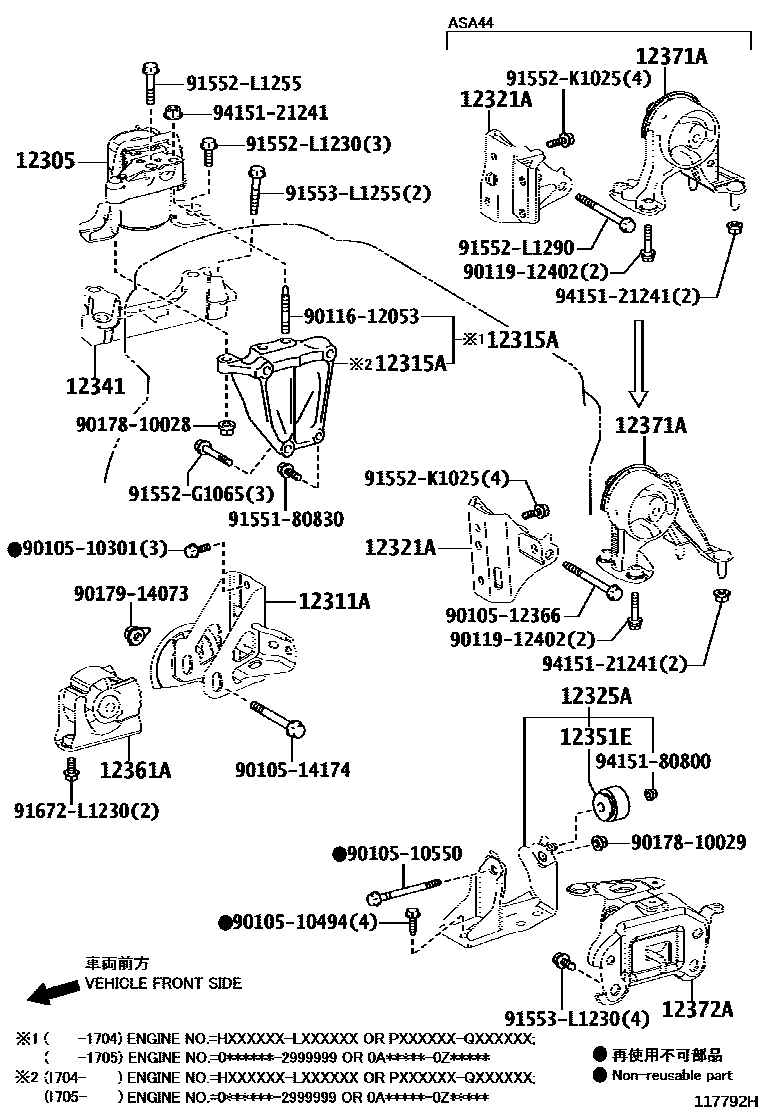

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-26072i2ADFTV..ALA49..6F201510-201810

main12305-26101i2AD#..ALA49..6FC201510-201810

main12305-36040i2ARFE..ASA4#201212-201510

main12305-36090i2ARFXE..AVA4#201510-201810

main12305-37280i3ZRFE..ZSA4#..6F,B201510-201812

main12305-37330i3ZRFE..ZSA4#..A201510-201812

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-26130i2ADFTV..ALA49..6F201510-201810

main12311-26150i2AD#..ALA49..6FC201510-201810

main12311-36080i2ARFE..ASA4#..6F201212-201510

main12311-36090i2ARFE..ASA4#..6FC201212-201506

main12311-36091i2ARFE..ASA4#..6FC201507-201510

main12311-36110i2ARFXE..AVA4#201510-201810

main12311-37100i3ZRFE..ZSA4#..6F201510-201812

main12311-37180i3ZRFE..ZSA4#..A201212-201510

main12311-37200i3ZRFE..ZSA4#..A201510-201812

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0R020i2AD#..ALA49201510-201810

main12315-0V030i2ARFXE..AVA4#201510-201705

(L),*347

sub90116-12053

main12315-0V031i2ARFXE..AVA4#201705-201810

(L),*347

main12315-36010i2AR#..ASA4#,AVA4#201510-201705

*265 OR *524

sub90116-12053

main12315-36011i2ARFE..ASA4#201705-201812

*265 OR *524

main12315-37030i3ZRFE..ZSA4#201510-201812

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-26050i2AD#..ALA49..6FC201510-201810

main12321-26060i2ADFTV..ALA49..6F201510-201810

main12321-36050i2ARFE..ASA42..6F201510-201805

main12321-36060i2ARFE..ASA44..6F201212-201510

main12321-36070i2ARFE..ASA42..6FC201212-201510

main12321-36080i2ARFE..ASA44..6FC201510-201812

main12321-36090i2ARFXE..AVA4#201510-201810

main12321-37070i3ZRFE..ZSA42..6F201510-201812

main12321-37080i3ZRFE..ZSA44..6F201510-201812

main12321-37090i3ZRFE..ZSA44..A201212-201510

main12321-37110i3ZRFE..ZSA42..A201212-201510

main12321-37200i3ZRFE..ZSA42..A201510-201812

main12321-37210i3ZRFE..ZSA44..A201510-201812

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-36030i2ARFE..ASA4#..6F201212-201510

main12304-36040i2ARFE..ASA4#..6FC201212-201508

main12304-36041i2ARFE..ASA4#..6FC201510-201812

main12304-37070i3ZRFE..ZSA4#..6F201510-201812

main12304-37110i3ZRFE..ZSA4#..A201212-201510

main12325-26030i2ADFTV..ALA49..6F201510-201810

main12325-26040i2AD#..ALA49..6FC201510-201810

main12325-36070i2ARFXE..AVA4#201510-201810

main12325-37200i3ZRFE..ZSA4#..A201510-201812

12341SPACER, ENGINE MOUNTING

main12341-26011i2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M);2ADFHV,2ARFXE..ALA49,AVA4#201510-201810

12351DAMPER, ENGINE MOUNTING

main12351-11023i3ZRFE..ZSA4#..A201212-201510

main12351-27030i2AD#..ALA49..6FC201510-201810

main12351-28110i2ARFXE..AVA4#201510-201810

main12351-37080i3ZRFE..ZSA4#..6F201212-201510

main12351-63010i2ADFTV..ALA49..6F201510-201810

12351EDAMPER, ENGINE MOUNTING

main12351-22090i2ADFTV..ALA49..6F201510-201810

main12351-23010i2ARFE..ASA4#..6F201212-201510

main12351-23040i2AD#..ALA49..6FC201510-201810

main12351-33020i2ARFE..ASA4#..6FC201509-201510

main12351-37020i2ARFE..ASA4#..6FC201212-201508

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-26120i2AD#..ALA49201510-201810

main12361-28280i3ZRFE..ZSA4#..B201510-201812

main12361-36120i2ARFE..ASA4#..6F201510-201805

main12361-36130i2ARFE..ASA4#..6FC201212-201510

main12361-36150i2ARFXE..AVA4#201510-201810

main12361-37180i3ZRFE..ZSA4#..6F201212-201510

main12361-37240i3ZRFE..ZSA4#..A201510-201812

main12361-37190i3ZRFE..ZSA42..RHD..B..G201510-201707

SRI LANKA SPEC

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-26070i2ADFTV..ALA49..6F201510-201810

main12371-26080i2AD#..ALA49..6FC201510-201810

main12371-36070i2ARFE..ASA42..6F201212-201510

main12371-36080i2ARFE..ASA44..6F201510-201805

main12371-36090i2ARFE..ASA42..6FC201510-201812

main12371-36100i2ARFE..ASA44..6FC201510-201812

main12371-37170i3ZRFE..ZSA42..6F201510-201812

main12371-37180i3ZRFE..ZSA44..6F201510-201812

main12371-37190i3ZRFE..ZSA42..A201212-201510

main12371-37200i3ZRFE..ZSA44..A201212-201510

main12371-37330i3ZRFE..ZSA42..A201510-201812

main12371-37340i3ZRFE..ZSA44..A201510-201812

main12371-36180supersedes 12371-36190i2ARFXE..AVA4#201510-201810

JORDAN SPEC

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-26050i2ADFTV..ALA49..6F201510-201810

main12372-26060i2AD#..ALA49..6FC201510-201810

main12372-36050i2ARFE..ASA4#..6F201212-201510

main12372-36060i2ARFE..ASA4#..6FC201510-201812

main12372-36070i2ARFXE..AVA4#201510-201810

main12372-37250i3ZRFE..ZSA4#..6F201212-201510

main12372-37260i3ZRFE..ZSA4#..A201212-201510

main12372-37270i3ZRFE..ZSA4#..A201510-201812

9010510301

main90105-10301

9010510494

main90105-10494

9010510550

main90105-10550

9010512366

main90105-12366

9010514174

main90105-14174

9011612053

main90116-12053

9011912402

main90119-12402

9017810028

main90178-10028

9017810029

main90178-10029

9017914073

main90179-14073

9155180830

main91551-80830

91552G1065

main91552-G1065

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91552L1255

main91552-L1255

91552L1290

main91552-L1290

91553L1230

main91553-L1230

91553L1255

main91553-L1255

91672L1230

main91672-L1230

9415121241

main94151-21241

9415180800

main94151-80800

32 parts on this diagram · 13 diagrams in section
