CYLINDER HEAD

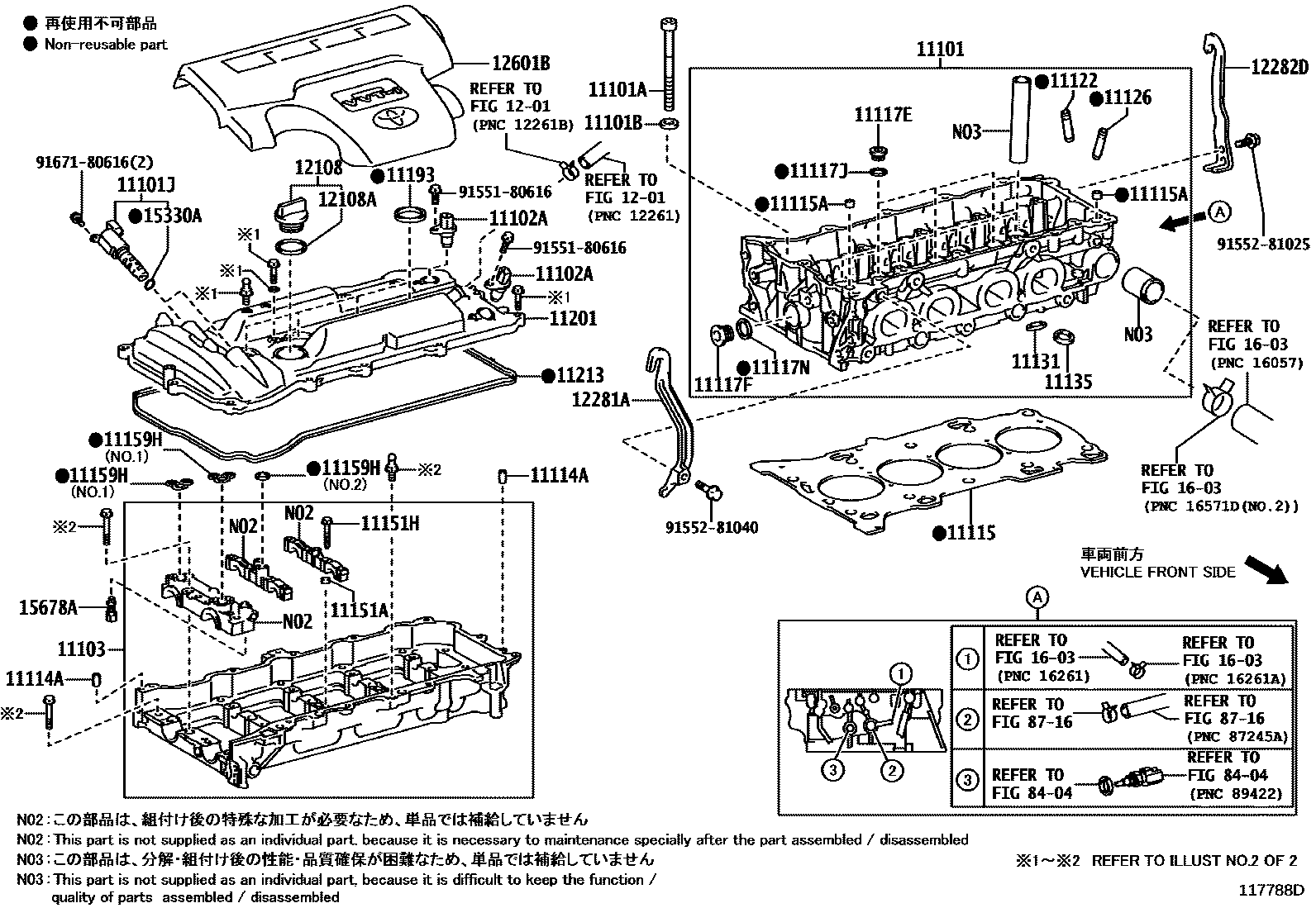

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-09405i201510-201810
main11101-09415i201510-201810
main11101-09451i201510-201810
*347
sub11101-39776
main11101-39686i201212-201812
main11101-39776i201212-201510
main11101-39776i201510-201812
*265 OR *524
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02158i201510-201810
sub90910-9U002
main90910-02164i201510-201810
(J),*347,*265 OR *524
main90910-02164i201212-201510
main90910-02164i201510-201812
*265 OR *524
main90910-02166i201212-201812
main90910-C2006i201510-201810
(L),*347
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-10344i201212-201812
main90201-11034i201510-201711
*347
main90201-11034i201510-201812
*265 OR *524
main90201-11034i201711-201810
(J),*347
main90201-11034i201212-201510
main90201-C0005i201711-201810
(L),*347
main90560-13023i201510-201810
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
main15330-0T030i201510-201810
*347
main15330-37010i201212-201812
NO.1
main15330-37010i201510-201812
*265 OR *524
main15330-37020i201212-201812
NO.2
11102ASENSOR, CAMSHAFT POSITION
main90919-05060i201705-201810
(J),*347
main90919-05060i201212-201510
main90919-05060i201510-201705
*347
main90919-05060i201510-201812
*265 OR *524
main90919-C5001i201705-201810
(L),*347
11103HOUSING SUB-ASSY, CAMSHAFT
main11103-0V031i201510-201810
*347
sub11103-36021
main11103-36011i201510-201812
*265 OR *524
main11103-36011i201212-201510
main11103-36021i201510-201810
*265 OR *524
main11103-37021i201212-201812
11114APIN, STRAIGHT
main90250-06001i201212-201812
L=14,OD=6
main90250-06003i201510-201810
L=14,OD=6,*347,*265 OR *524
main90250-06003i201510-201812
L=14,OD=6,*265 OR *524
main90250-06003i201212-201510
L=14,OD=6
11115GASKET, CYLINDER HEAD
main11115-26052-A0i201510-201810
MARKA,REFER REPAIR MANUAL
main11115-26052-B0i201510-201810
MARKB,REFER REPAIR MANUAL
main11115-26052-C0i201510-201810
MARKC,REFER REPAIR MANUAL
main11115-26052-D0i201510-201810
MARKD,REFER REPAIR MANUAL
main11115-26052-E0i201510-201810
MARKE,REFER REPAIR MANUAL
main11115-36030i201212-201405
sub11115-36031
main11115-36031i201510-201812
*265 OR *524
main11115-36031i201406-201510
main11115-36041i201510-201810
*347,*265 OR *524
main11115-37060i201212-201406
sub11115-37061
main11115-37061i201407-201812
sub11115-37062
11115APIN, RING
main90253-12002i201510-201810
(J),*347,*265 OR *524
main90253-12002i201212-201510
main90253-12002i201510-201812
*265 OR *524
main90253-C0002i201510-201810
(L),*347
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90341-14015i201510-201810
main90341-20002i201212-201510
main90341-20002i201510-201810
*347,*265 OR *524
main90341-20002i201510-201812
*265 OR *524
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
main90341-24011i201212-201510
main90341-24011i201510-201810
*347,*265 OR *524
main90341-24011i201510-201812
*265 OR *524
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
main90430-20004i201510-201810
(J),*347,*265 OR *524
main90430-20004i201510-201812
*265 OR *524
main90430-20004i201212-201510
main90430-C0001i201510-201810
(L),*347
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
main90430-24246i201212-201510
main90430-24246i201510-201810
*347,*265 OR *524
main90430-24246i201510-201812
*265 OR *524
11122BUSH, INTAKE VALVE GUIDE
main11122-0R010i201510-201810
STD
main11122-31050i201212-201812
STD
sub11122-31090
main11122-31050i201510-201812
STD,*265 OR *524
sub11122-31090
main11122-31090i201510-201810
STD,*347
main11123-0R010i201510-201810
O/S 0.05
main11123-31050i201510-201812
O/S 0.05,*265 OR *524
main11123-31050i201212-201812
O/S 0.05
main11123-31090i201510-201810
O/S 0.05,*347
11126BUSH, EXHAUST VALVE GUIDE
main11122-0R010i201510-201810
STD
main11123-0R010i201510-201810
O/S 0.05
main11126-31030i201510-201812
STD,*265 OR *524
sub11126-31040
main11126-31030i201212-201812
STD
sub11126-31040
main11126-31040i201510-201810
STD,*347
main11127-31030i201212-201812
O/S 0.05
sub11127-31040
main11127-31030i201510-201812
O/S 0.05,*265 OR *524
sub11127-31040
main11127-31040i201510-201810
O/S 0.05,*347
11131SEAT, INTAKE VALVE
main11131-0V030i201510-201810
STD,*347
main11131-36030i201212-201510
STD
main11131-36030i201510-201812
STD,*265 OR *524
main11131-37020i201212-201502
STD
sub11131-37040
main11131-37040i201502-201812
STD
main11132-0V030i201510-201810
O/S 0.03,*347
main11132-36030i201510-201812
O/S 0.03,*265 OR *524
main11132-36030i201212-201510
O/S 0.03
main11132-37040i201212-201812
O/S 0.03
11135SEAT, EXHAUST VALVE
main11135-0V020i201510-201810
STD,*347
main11135-36010i201510-201812
STD,*265 OR *524
main11135-36010i201212-201510
STD
main11135-37020i201212-201812
STD
main11136-36010i201212-201510
O/S 0.03
main11136-36010i201510-201812
O/S 0.03,*265 OR *524
main11136-36010i201510-201810
O/S 0.03,*347,*265 OR *524
main11136-37040i201212-201812
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
main90253-13005i201212-201812
L=12.5,OD=8
main90253-13005i201510-201810
L=12.5,OD=8,(J),*347,*265 OR *524
main90253-13005i201510-201812
L=12.5,OD=8,*265 OR *524
main90253-C0004i201510-201810
L=12.5,OD=8,(L),*347
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
main90119-07009i201510-201812
*265 OR *524
main90119-07009i201212-201510
main90119-07009i201510-201810
(J),*347,*265 OR *524
main90119-C0469i201510-201810
(L),*347
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
main11159-0V020i201510-201810
*347,NO.1:REF.ILLUST
main11159-36011i201212-201510
NO.1:REFER ILLUST.
main11159-36011i201510-201812
*265 OR *524,NO.1
main11159-37010i201212-201812
main90430-10024i201510-201812
*265 OR *524,NO.2
main90430-10024i201212-201510
NO.2:REFER ILLUST.
main90430-C0006i201510-201810
*347,NO.2:REF.ILLUST
11193GASKET, SPARK PLUG TUBE
main11193-0V020i201510-201810
*347
main11193-36010i201510-201812
*265 OR *524
main11193-36010i201212-201510
main11193-37020i201212-201812
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-0R042i201510-201810
main11201-0V050i201510-201810
*347
main11201-36010i201212-201510
main11201-36010i201510-201812
*265 OR *524
main11201-36020i201510-201810
*265 OR *524
main11201-37022i201212-201812
11213GASKET, CYLINDER HEAD COVER
main11213-0R040i201510-201810
main11213-0V010i201510-201810
(L),*347
main11213-36020i201212-201510
main11213-36020i201510-201810
(J),*347,*265 OR *524
main11213-36020i201510-201812
*265 OR *524
main11213-37020i201212-201501
sub11213-37021
main11213-37021i201502-201812
1201
12108CAP SUB-ASSY, OIL FILLER
main12180-0V010i201510-201810
(L),*347
main12180-38010i201510-201810
(J),*347,*265 OR *524
main12180-38010i201510-201812
*265 OR *524
main12180-38010i201212-201510
12108AGASKET(FOR OIL FILLER CAP)
main90430-35001i201510-201812
*265 OR *524
main90430-35001i201212-201510
main90430-35001i201510-201810
*347,*265 OR *524
12281AHANGER, ENGINE, NO.1
main12281-0V010i201510-201810
*347
main12281-26040i201510-201810
main12281-36020i201212-201510
main12281-36020i201510-201812
*265 OR *524
main12281-37021i201510-201812
TYPE A:REFER ILLUST.
main12281-37021i201212-201510
W/O(PAINTED)
main12281-37050i201212-201510
W(PAINTED)
sub12281-37021
main12281-37070i201801-201812
TYPE B:REFER ILLUST.
12282DHANGER, ENGINE, NO.2
main12282-0V030i201510-201810
*347
main12282-26010i201510-201810
main12282-36021i201510-201812
*265 OR *524
main12282-36021i201212-201510
main12282-37011i201212-201510
W/O(PAINTED)
main12282-37011i201510-201812
NO PAINTED
main12282-37040i201212-201510
W(PAINTED)
sub12282-37011
main12282-37060i201801-201812
PAINTED=WHITE
12601BCOVER SUB-ASSY, ENGINE, NO.1
main12601-36050i201510-201810
main12601-36060i201212-201812
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
main90068-14032i201510-201810
*347
main90099-14137i201212-201510
main90099-14137i201510-201812
*265 OR *524
15678AFILTER, OIL CONTROL VALVE
main15678-0T020i201705-201810
(L),*347
main15678-37010i201510-201812
*265 OR *524
main15678-37010i201510-201705
*347
main15678-37010i201212-201510
main15678-37010i201705-201810
(J),*347
1603
8404
8716
9155180616
main91551-80616
9155281025
main91552-81025
9155281040
main91552-81040
9167180616
main91671-80616

38 parts on this diagram · 7 diagrams in section
