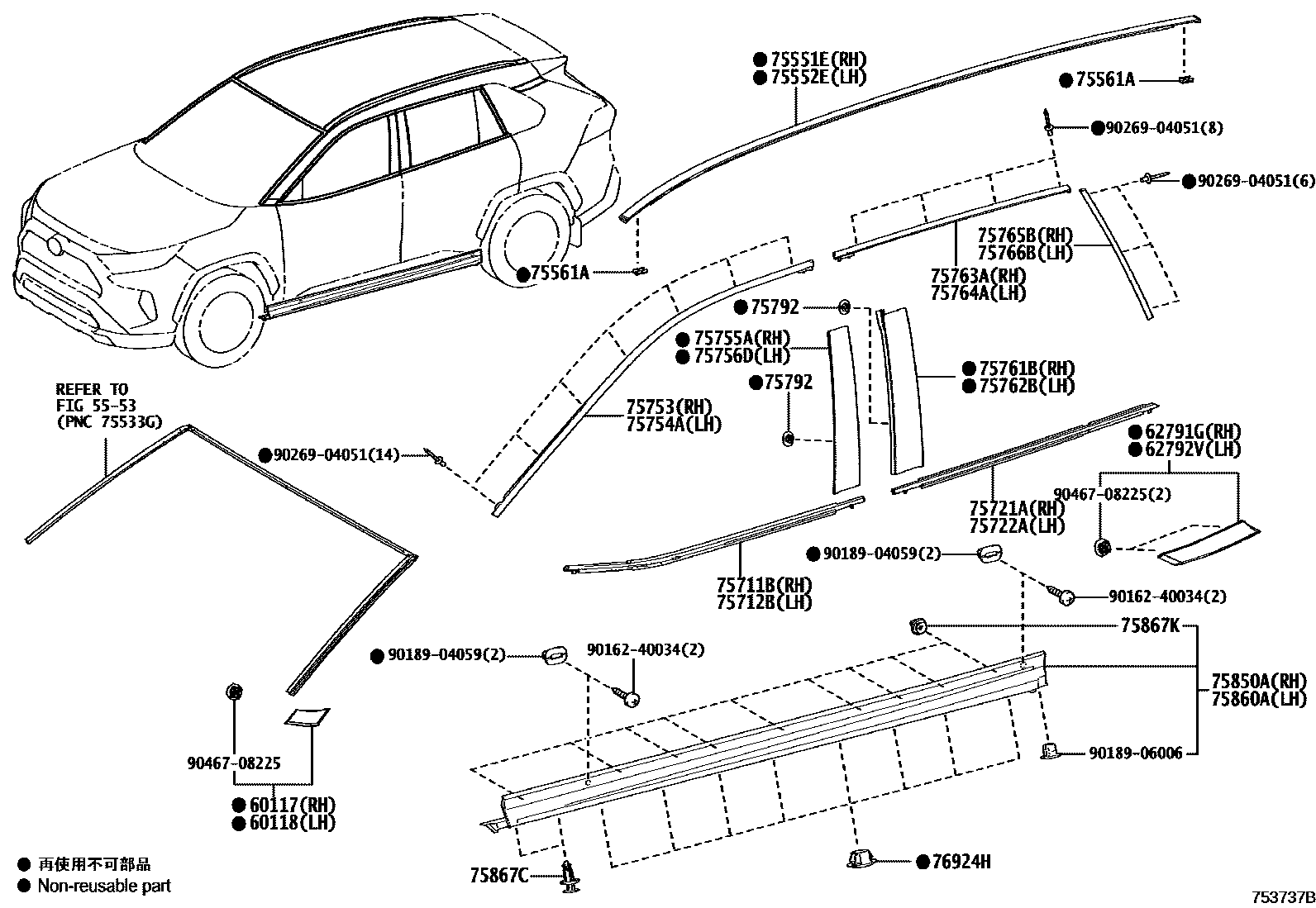

MOULDING

0001 1 0002 1WITH(ROOF RAIL) 0003 1 0006 1

5553

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-42030iAXAA5#,AXAH5#,MXAA5#201811-201906

main60117-42031iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)202210

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-42030iAXAA5#,AXAH5#,MXAA5#201811-201906

main60118-42031iAXAA54,MXAA5#..RUS201907-202009

62791GMOULDING, QUARTER WINDOW, UPPER RH

main62791-42020iMXAA5#..X..RUS202008-202203

main62791-42030iAXAA54,MXAA5#..(G,M)..RUS202008-202203

62792VMOULDING, QUARTER WINDOW, UPPER LH

main62792-42020iMXAA52..X..SA202210

main62792-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-42050iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-42050iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52020×4supersedes 75561-52020iMXAA5#..X..RUS201811-202009

75711BMOULDING, FRONT DOOR BELT, RH

main75710-42050iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202008-202210

75712BMOULDING, FRONT DOOR BELT, LH

main75720-42050iAXAA54,MXAA5#..RUS202008-202203

75721AMOULDING, REAR DOOR BELT, RH

main75730-42050iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202008-202210

75722AMOULDING, REAR DOOR BELT, LH

main75740-42050iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202008-202210

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75071-42120iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75072-42120iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-42020iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)202210

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-42020iAXAA54,MXAA5#..RUS201811-202009

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75075-42090iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75076-42090iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-42010iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-42010iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-42010iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR202310

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202007

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×4iAXAA54,MXAA5#..RUS202008-202203

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75850-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

main75850-42031iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202102-202111

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75860-42030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

main75860-42031iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR202310

75867CCLIP, ROCKER PANEL MOULDING

main75867-30120×4iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202008-202210

75867KCLIP, ROCKER PANEL MOULDING

main75867-30130×18iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR202310

main75867-68010×18iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

76924HRETAINER, SIDE MUDGUARD, NO.2

main76924-52040×16iAXAA5#,AXAH5#,MXAA5#201811-201909

main90467-22017×16iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

9016240034

main90162-40034

9018904059

main90189-04059

9018906006

main90189-06006

9026904051

main90269-04051

9046708225

main90467-08225

33 parts on this diagram · 4 diagrams in section
