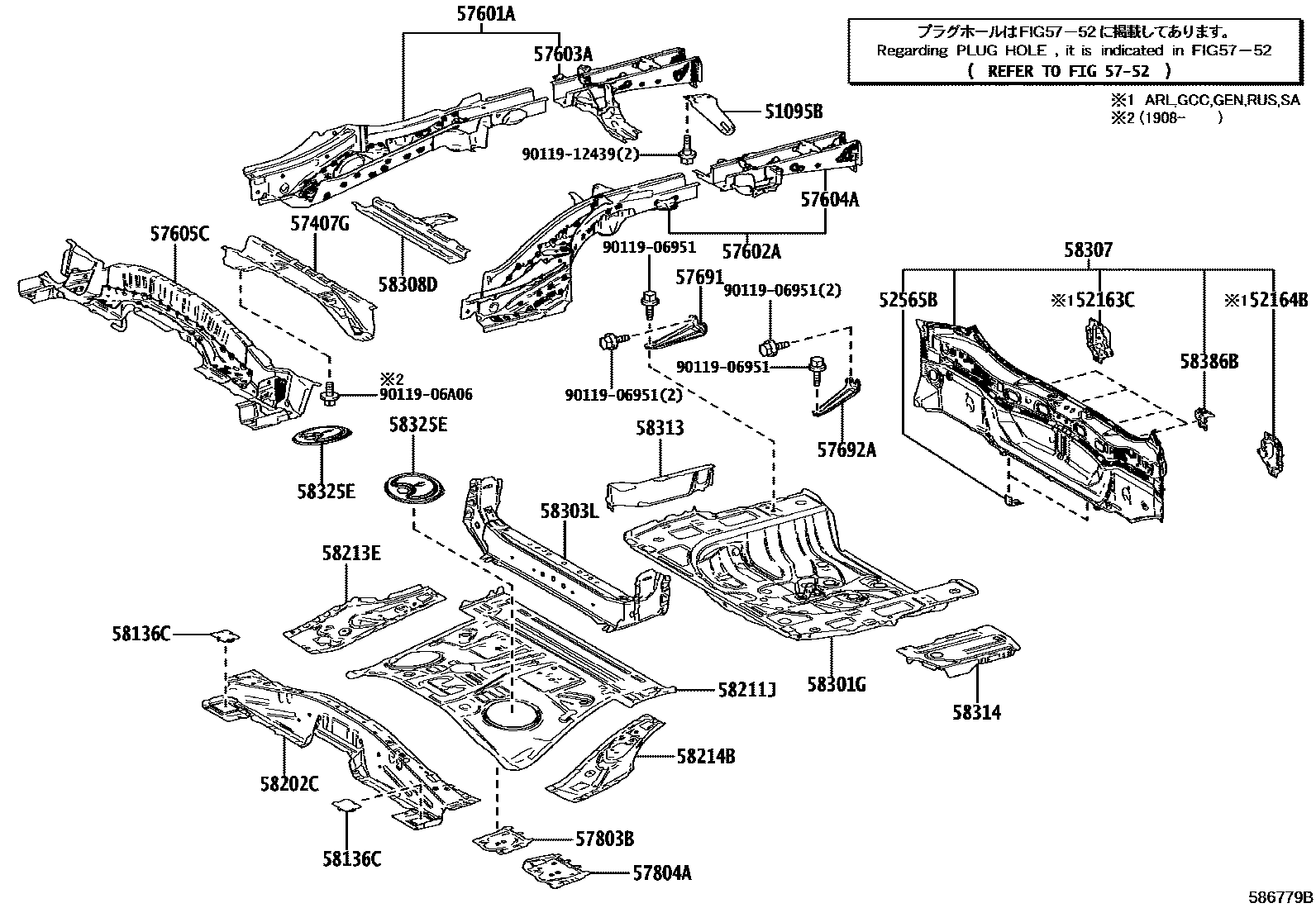

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-42010iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5201811-202410

52163CPLATE, REAR BUMPER REINFORCEMENT, RH

main52163-0R070iAXAA54,MXAA5#..RUS201910-202203

main52163-42030iAXAH52..G..ARL;MXAA52..6F..(M,X)..(ARL,GEN,SA);AXAH52,MXAA54..LHD..CVT..G..(GCC,GEN);AXAH52,MXAA54..(M,V,X)..(ARL,GCC,GEN,SA);AXAA5#,AXAH54,AXAL5#,MXAA52..(ATM,CVT)201811-202310

52164BPLATE, REAR BUMPER REINFORCEMENT, LH

main52164-0R070iAXAA54,MXAA5#..RUS201910-202203

main52164-42030iAXAH52..G..ARL;MXAA52..6F..(M,X)..(ARL,GEN,SA);AXAH52,MXAA54..LHD..CVT..G..(GCC,GEN);AXAH52,MXAA54..(M,V,X)..(ARL,GCC,GEN,SA);AXAA5#,AXAH54,AXAL5#,MXAA52..(ATM,CVT)201811-202310

52565BRETAINER, REAR BUMPER, LOWER

main52565-42040iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR201811-202410

57407GMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-42020iAXAA5#,AXAH5#,MXAA5#201811-201908

main57407-42021iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201908-202102

sub57407-42022

main57407-42022iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202103-202410

5752

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0R090iAXAA54,MXAA5#..RUS201910-202203

sub57601-42130

main57601-42130iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,AXAH5#,MXAA54..ARL,GCC,GEN,SA201811-202310

main57601-42140iMXAA5#..EUR201811-202410

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0R090iAXAA54,MXAA5#..RUS201910-202203

sub57602-42130

main57602-42130iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,AXAH5#,MXAA54..ARL,GCC,GEN,SA201811-202310

main57602-42140iMXAA54..JPP..RUS;AXAH5#,AXAL5#..EUR201811-202410

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-42040iAXAH52..RHD..G..GEN201811-202405

sub57603-42041

main57603-42041iMXAA52..X..SA202404

main57603-42050iAXAA54..EUR201811-202410

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-42040iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202405

sub57604-42041

main57604-42041iMXAA52..X..SA202404

main57604-42050iAXAA54..EUR201811-202410

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-42020iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAA52,MXAA5#..RHD..(6F,8FC)..(ARL,GEN)201811-202310

main57605-42030iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,201811-202410

57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH

main57691-42010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH

main57692-42010iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH201811-202410

57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH

main57803-42020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH

main57804-42020iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)201811-202410

58136CCOVER, REAR FLOOR HOLE

main58136-42030iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5201811-202410

58202CPAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-42030iMXAA52..JPP..CVT;MXAA5#..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);MXAA52..JPP..6F..(M,X);AXAA5#..ARL,GCC,GEN,SA201811-202308

main58202-42031iAXAA5#,MXAA5#..JPP202309

main58202-42040iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR201811-202410

58211JPAN, CENTER FLOOR

main58211-0R130iAXAA54,MXAA5#..RUS202106-202203

(L)

sub58211-42020

main58211-42020iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAA52,MXAA5#..RHD..(6F,8FC)..(ARL,GEN)201811-202310

main58211-42020iAXAA54,MXAA5#..RUS202106-202203

(J)

main58211-42030iAXAH54..RUS201811-202410

58213EPANEL, SEAT FLOOR SIDE, RH

main58213-42020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202001

sub58213-48050

main58213-48050iAXAA54..EUR;AXAH52..RHD..G..GEN202001-202410

58214BPANEL, SEAT FLOOR SIDE, LH

main58214-42020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202001

sub58214-48040

sub90950-01A12

main58214-48040iAXAA54..EUR;AXAH52..RHD..G..GEN202001-202410

58301GPAN SUB-ASSY, REAR FLOOR

main58301-42900iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)201811-202312

sub58301-42902

main58301-42901iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR201811-202312

sub58301-42903

main58301-42902iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202312

main58301-42903iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202312-202410

58303LPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-42020iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR201811-202410

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0R050iAXAA54,MXAA5#..RUS201910-202203

main58307-42040iAXAH52..G..ARL;MXAA52..6F..(M,X)..(ARL,GEN,SA);AXAH52,MXAA54..LHD..CVT..G..(GCC,GEN);AXAH52,MXAA54..(M,V,X)..(ARL,GCC,GEN,SA);AXAA5#,AXAH54,AXAL5#,MXAA52..(ATM,CVT)201811-202111

sub58307-42070

main58307-42050iAXAA54..EUR201811-202111

sub58307-42051

main58307-42070iAXAA54..LHD..V;MXAA52..6F..SA;AXAH52..LHD..GEN;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA5#..LHD..6F..GEN;AXAA52..LHD..(G,M)..GEN;MXAA54..(G,V202112-202310

main58307-42080iAXAL5#;MXAA54..JPP..RUS;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;AXAH54..LHD..(G,M,P,V)..EUR202112-202410

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-42020iAXAA54,MXAA5#..RUS201811-202410

58313PANEL, REAR FLOOR SIDE, RH

main58313-42070iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

58314PANEL, REAR FLOOR SIDE, LH

main58314-42060iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-10051iMXAA5#..6F..G..(GEN,SA)201811-202310

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-47020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

9011906951

main90119-06951

9011906A06

main90119-06A06

9011912439

main90119-12439

31 parts on this diagram · 2 diagrams in section
