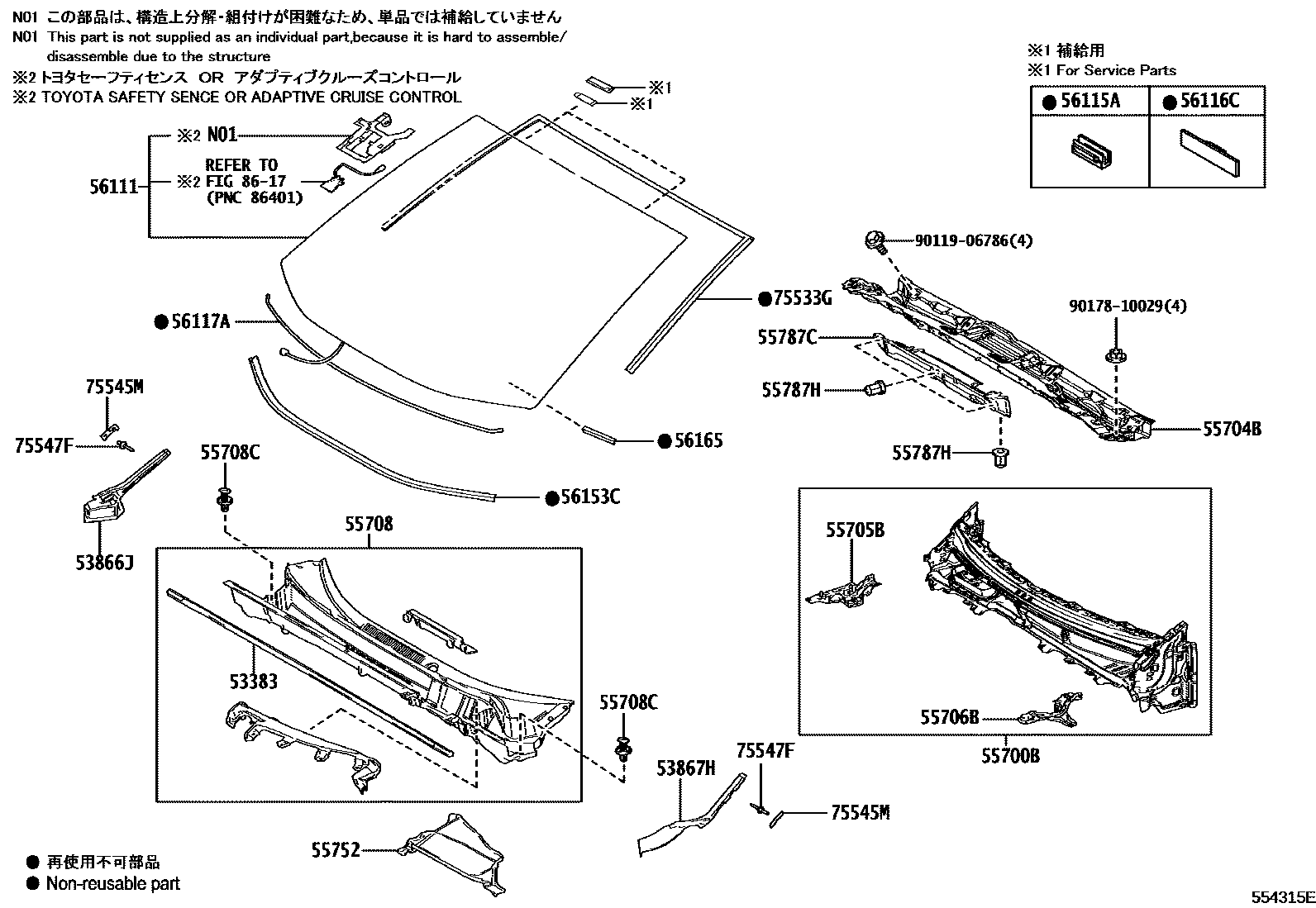

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
main53866-42041iAXAH5#..X..ARL;MXAA52..6F..SA;MXAA5#..RHD..CVT;AXAH54..RHD..G..GEN;AXAA54..(M,V,X)..ARL;AXAL5#..RHD..(G,M,P,V)..EUR;AXAA54..RHD..(G,M,X)..(GEN,SA);AXAH5#..RHD..(G,M202008-202210
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
main53867-42031iAXAA52..GCC;AXAA52..LHD..(G,M)..GEN;MXAA54..JPP..LHD..(M,X);MXAA54..LHD..(G,V)..(EUR,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52..JPP..LHD202008-202210
main53867-42041iMXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,AXAL5#,MXAA54..RHD202210-202310
55700BCOWL ASSY
55704BPANEL SUB-ASSY, COWL VENTILATOR
main55704-42020iMXAA52..RHD..CVT;AXAH52..RHD..(M,X);MXAA52..RHD..6F..(M,X);AXAH52..RHD..G..(ARL,EUR);AXAA5#,AXAH54,AXAL5#,MXAA54..RHD201811-202007
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
main55706-42060iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
COLD AREA SPEC
55708CCLIP, COWL TOP VENTILATOR LOUVER
55752SHIELD, COWL VENTILATOR SPLASH
main55752-42020iAXAH54..X..GCC;AXAH54..LHD..(G,M,P,V);AXAA5#,AXAH52,AXAL5#..JPP..LHD;MXAA5#..JPP..LHD..(GCC,GEN,RUS)202310
main55752-42030iMXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,AXAL5#,MXAA54..RHD202210-202310
55787CINSULATOR, COWL TOP PANEL, NO.1
55787HCLIP, COWL TOP PANEL INSULATOR
main90467-06158-C0×4iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
BLACK
56111GLASS, WINDSHIELD
ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL)
UKRAINE,MOLD SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL)
MOROCCO SPEC
main56101-42905iAXAA54..G..ARL;MXAA52..6F..ARL;MXAA54..RHD..6F;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN202008-202111
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H),REFER TOPNC 86466D
main56101-42978iAXAH54..RHD..(M,V)..EUR;AXAH54..RHD..(G,P)..(EUR,GEN,SA);AXAH52,AXAL54..RHD..(G,M,P,V)..EUR;AXAA54,AXAL52,MXAA5#..RHD..(ATM,CVT)..(G,M,P)..(EUR,GEN,SA)202112-202210
EXCEPT WVTA COUNTRY&SINGAPOLE SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H),REFER TO PNC 86466D
PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL)
main56101-4A912iAXAH54..V..ARL;AXAH54..P..GEN;MXAA52..X..ARL;AXAH52..(G,P)..EUR;AXAH52..LHD..M..EUR;MXAA52..(G,M)..(ARL,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#..(G,M,P,X)..(ARL,SA);202310
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)
AZERBAIJAN,GEORGIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&COLD AREA SPEC&CRUISE CONTROL-WITH(NORMAL)
JORDAN SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC&CRUISE CONTROL-*ACC(OVER40KM/H)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)
COLD AREA SPEC
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC&CRUISE CONTROL-*ACC(OVER40KM/H)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC,WITH(STEERING HEATER)&CRUISE CONTROL-*ACC(ALL SPEED)
BRAZIL SPEC
BRAZIL SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)
ECUADOR SPEC
ECUADOR SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)
ECUADOR SPEC
ECUADOR SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC&CRUISE CONTROL-*ACC(OVER40KM/H),REFER TO PNC 86466D
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC&CRUISE CONTROL-*ACC(OVER40KM/H)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H),REFER TOPNC 86466D
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC,WITH(STEERING HEATER)&CRUISE CONTROL-*ACC(ALL SPEED)
BRAZIL SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)
ECUADOR SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED),REFER TO PNC 86466D
ECUADOR SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED),REFER TO PNC 86466D
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC&CRUISE CONTROL-*ACC(OVER40KM/H)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC,WITH(STEERING HEATER)&CRUISE CONTROL-*ACC(ALL SPEED)
WVTA COUNTRY, W(ROAD SIGN ASSIST), EU&LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC,WITHOUT(REAR SEAT HE
BRAZIL SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H),REFER TO PNC 86466D
ECUADOR SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED),REFER TO PNC 86466D
ECUADOR SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED),REFER TO PNC 86466D
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC&CRUISE CONTROL-*ACC(OVER40KM/H)
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC&CRUISE CONTROL-*ACC(ALL SPEED),REFER TO PNC 86466D
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC&CRUISE CONTROL-*ACC(OVER40KM/H),REFER TO PNC 86466D
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&COLD AREA SPEC,WITH(REAR SEAT HEATER)&CRUISE CONTROL-*ACC(OVER40KM/H),REFER TO PNC 86466D
COLD AREA SPEC
BRAZIL SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
main56115-30100iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202008-202210
56116CSTOPPER, WINDSHIELD GLASS, NO.2
main56116-22050iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
56117ADAM, WINDOW GLASS ADHESIVE
L=1380
56153CMOULDING, FRONT WINDOW, INNER CENTER
main56153-42020iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
56165COVER, FRONT WINDOW INNER MOULDING, LH
main56165-30010iMXAA52..X..ARL;AXAL5#..G,M,P,V;AXAA54,AXAH5#..RHD;AXAH52..LHD..M..EUR;MXAA54..(G,V)..(GEN,SA);MXAA5#..RHD..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..(EUR,GEN);AXA202210-202310
MOROCCO SPEC
75533GMOULDING, WINDSHIELD, OUTSIDE
main75533-42070iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR202310
75545MCLIP, WINDSHIELD OUTSIDE MOULDING
75547FCLIP, WINDSHIELD OUTSIDE MOULDING
8617
9011906786
main90119-06786
9017810029
main90178-10029
24 parts on this diagram · 3 diagrams in section
